Super Precision Angular Contact Ball Bearings 7224 ACD/P4ADBA

Brand: TFL Bearing Interchangeable: SKF 7224 ACD/P4ADBA 120 mm × 215 mm × 80 mm Metric Open
Part number: 7224 ACD/P4ADBA
Super Precision Angular Contact Ball Bearings 7224 ACD/P4ADBA
In Stock
US$1,586.44 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia120 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia215 mm
Outer Dia Tolerance-0.004mm to 0
Width80 mm
Width Tolerance-0.2mm to 0
Ball Dia30.162 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load69,075 lbf
Static Radial Load82,125 lbf
Temperature Range- 30°C to 110 °C
Max Speed10,000 rpm
Characteristics
Ball Qty15
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement2 bearings <> DB
Number Of Bearings In Matched Set2
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight10.8 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic

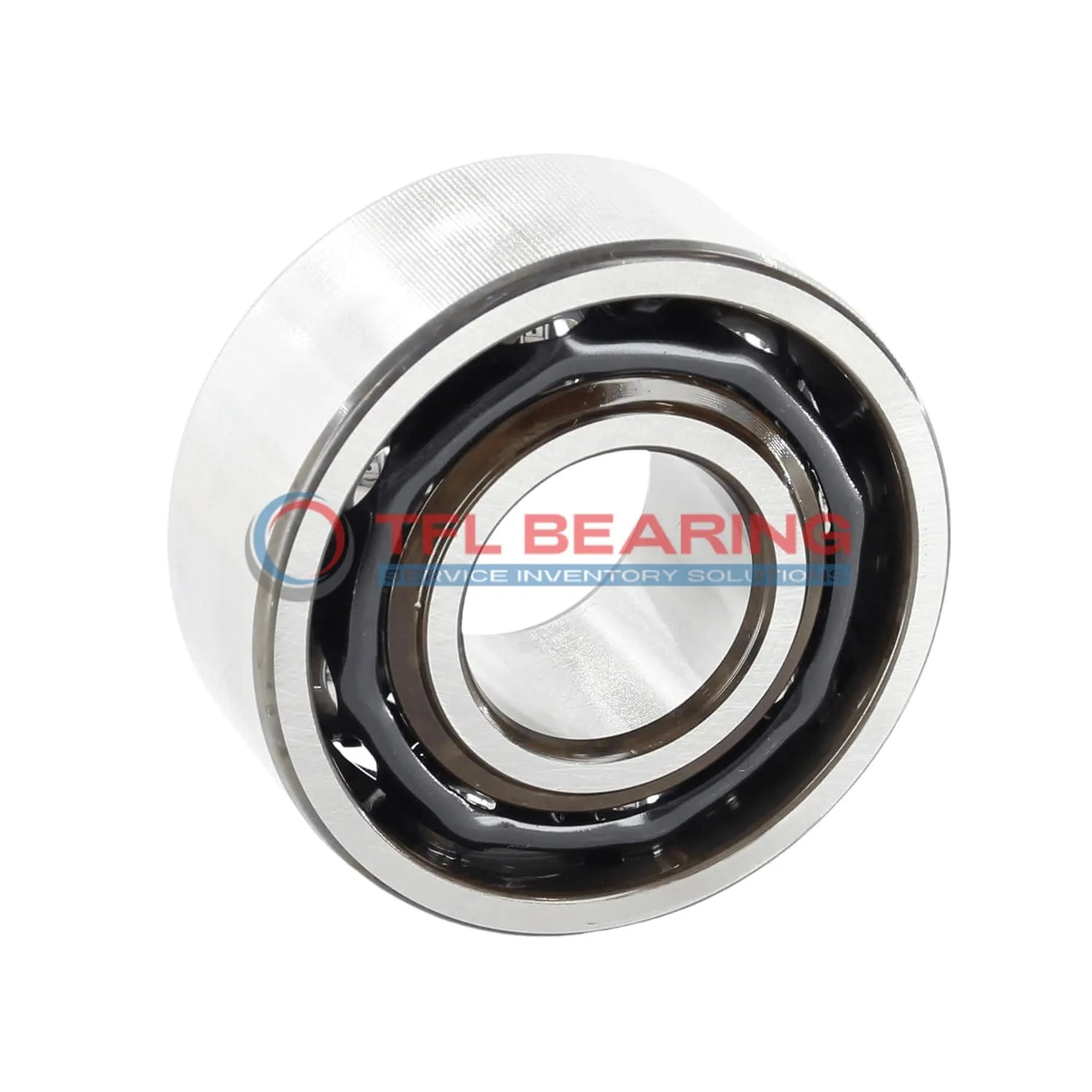

Dimension drawing · click to enlarge

Description

The 7224 ACD/P4ADBA is a super precision angular contact ball bearing with a 120mm bore and 215mm outer diameter, crafted from high-quality chrome steel. It features a 25° contact angle and comes in a matched pair for balanced performance.

Designed for angular contact loads, it handles dynamic radial loads up to 69075 lbf and spins smoothly at speeds up to 10000 RPM. The phenolic cage ensures durability and quiet operation.

Its open design allows easy lubrication, while the P4A tolerance class guarantees precision. Ideal for high-speed applications like machine tool spindles or precision equipment.

Weighing 10.8kg, this bearing is robust yet suitable for demanding environments, operating in temperatures from -30°C to 110°C. Interchangeable with SKF bearings for easy replacement.

Features

Performance Features of 7224 ACD/P4ADBA Bearing

7224 ACD/P4ADBA Bearing is designed with a 25° contact angle, optimising load distribution for high-precision applications.
The chrome steel rings and balls enhance durability, while the phenolic cage ensures smooth operation at high speeds.

With a dynamic radial load capacity of 69075 lbf, it handles demanding conditions effortlessly.
Its extra-light preload (Class A) reduces friction, contributing to longer service life.

The matched arrangement of two bearings (DB) provides stability in angular contact applications.
Operating at speeds up to 10,000 rpm, it maintains performance without compromising precision.

7224 ACD/P4ADBA Bearing works efficiently in temperatures ranging from -30°C to 110°C.
Its P4A tolerance class ensures consistent accuracy, making it ideal for precision machinery.

Application

Industrial Uses of 7224 ACD/P4ADBA Bearing
The 7224 ACD/P4ADBA Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched arrangement of two bearings provides excellent stability for heavy cutting operations.

In automotive applications, 7224 ACD/P4ADBA Bearing supports high-speed components like turbochargers and transmission systems. Its extra light preload helps reduce friction, improving fuel efficiency and performance.

For medical imaging devices, 7224 ACD/P4ADBA Bearing’s phenolic cage and chrome steel construction offer reliable operation in sensitive environments. The P4A tolerance class ensures minimal vibration, crucial for clear imaging results.

Automation and robotics benefit from 7224 ACD/P4ADBA Bearing’s ability to handle combined loads in robotic arms and CNC machines. The open seal design allows for easy lubrication, extending service life in continuous operation.

In aerospace applications, 7224 ACD/P4ADBA Bearing’s high dynamic radial load capacity makes it suitable for aircraft landing gear and control systems. The temperature range of -30°C to 110°C ensures performance in various flight conditions.
