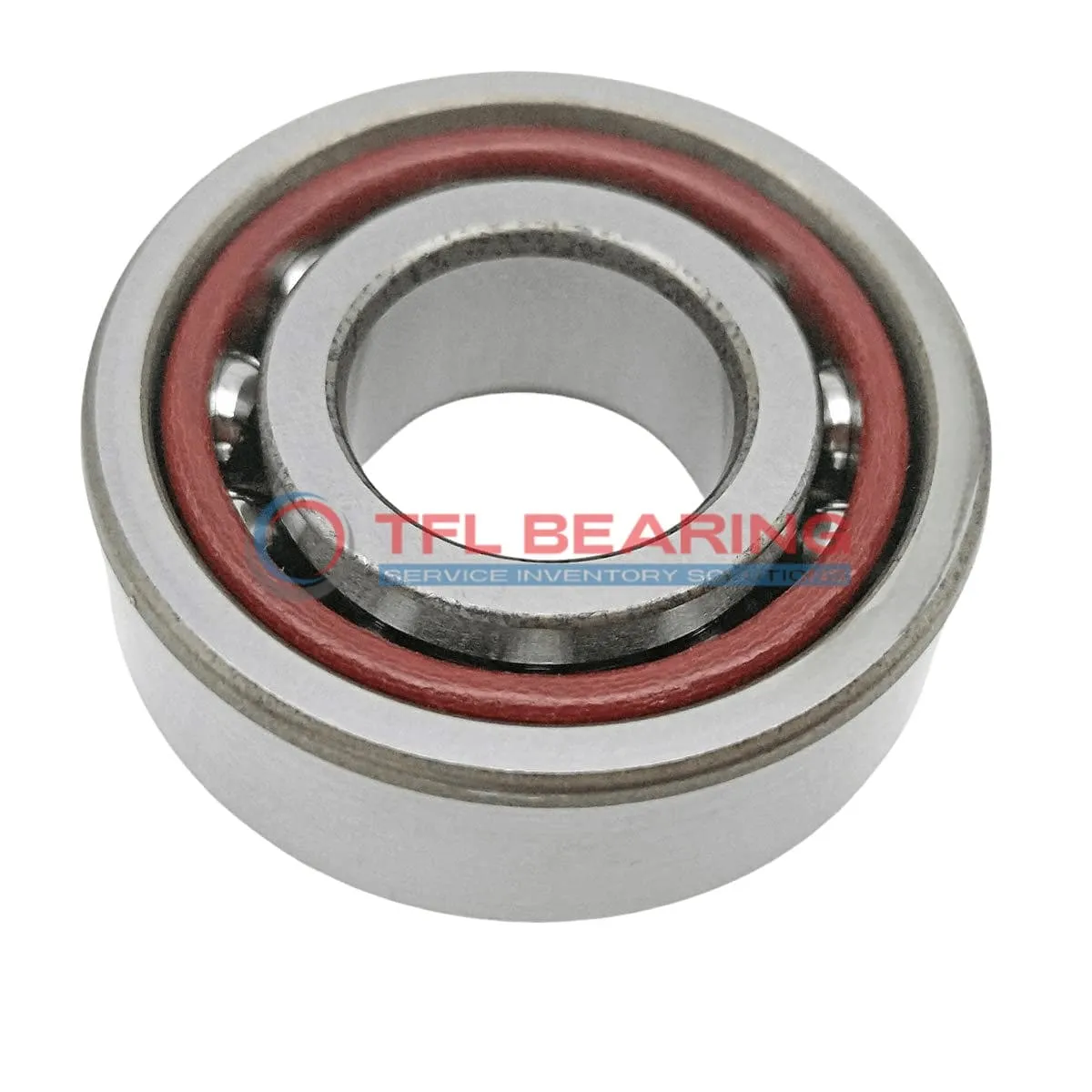

Super Precision Angular Contact Ball Bearings 7221 ACD/HCP4A

Brand: TFL Bearing Interchangeable: SKF 7221 ACD/HCP4A 105 mm × 190 mm × 36 mm Metric Open
Part number: 7221 ACD/HCP4A
Super Precision Angular Contact Ball Bearings 7221 ACD/HCP4A
In Stock
US$1,359.43 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia105 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia190 mm
Outer Dia Tolerance-0.011mm to 0
Width36 mm
Width Tolerance-0.24mm to 0
Ball Dia26.988 mm
Performance
PreloadAvailable
Dynamic Radial Load36,675 lbf
Static Radial Load32,850 lbf
Temperature Range-30° to 110 °C
Max Speed12,000 rpm
Characteristics
Ball Qty15
Contact Angle25°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight3.14 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7221 ACD/HCP4A is a super precision angular contact ball bearing with a 105mm bore and 190mm outer diameter, crafted from high-quality chrome steel and ceramic balls. It handles radial loads up to 36675 lbf and operates smoothly at speeds up to 12000 RPM.

Its 25° contact angle and phenolic cage ensure stable performance under angular loads, while the open design allows for easy lubrication. The bearing is preload-ready and can be matched for paired arrangements.

With a P4 tolerance class, it offers exceptional accuracy for demanding applications like machine tool spindles or high-speed robotics. The ceramic balls reduce friction and heat buildup, extending service life.

Weighing 3.14kg, this bearing works in temperatures from -30°C to 110°C. It’s interchangeable with SKF equivalents, making it a versatile choice for precision engineering needs.

Features

Performance Features of 7221 ACD/HCP4A Bearing

7221 ACD/HCP4A Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
The chrome steel rings and ceramic balls enhance durability while reducing friction.

With a dynamic radial load capacity of 36675 lbf, it handles demanding conditions reliably.
Its phenolic cage ensures smooth operation at speeds up to 12,000 rpm.

The P4 tolerance class guarantees high precision, making it suitable for critical applications.
Lubrication is pre-applied, ensuring ready-to-use convenience and extended service life.

Application

Industrial Uses of 7221 ACD/HCP4A Bearing
The 7221 ACD/HCP4A Bearing is commonly used in high-speed machine tools, where its precision and angular contact design ensure accurate performance. Its ceramic balls reduce friction, making it suitable for demanding industrial environments.

What Makes 7221 ACD/HCP4A Bearing a Preferred Choice?
In automotive applications, 7221 ACD/HCP4A Bearing excels in gearbox systems, providing smooth operation under heavy loads. The phenolic cage adds durability, making it a reliable choice for long-term use.

Perfect Fit for Automation: 7221 ACD/HCP4A Bearing
For robotics and automation, 7221 ACD/HCP4A Bearing offers the precision needed for repetitive tasks. Its open design allows for easy lubrication, ensuring consistent performance in automated systems.

Medical vs Industrial: Where 7221 ACD/HCP4A Bearing Excels
In medical imaging devices, 7221 ACD/HCP4A Bearing’s high tolerance class ensures reliable operation. Meanwhile, in industrial settings, its robust construction handles heavy radial loads with ease.
