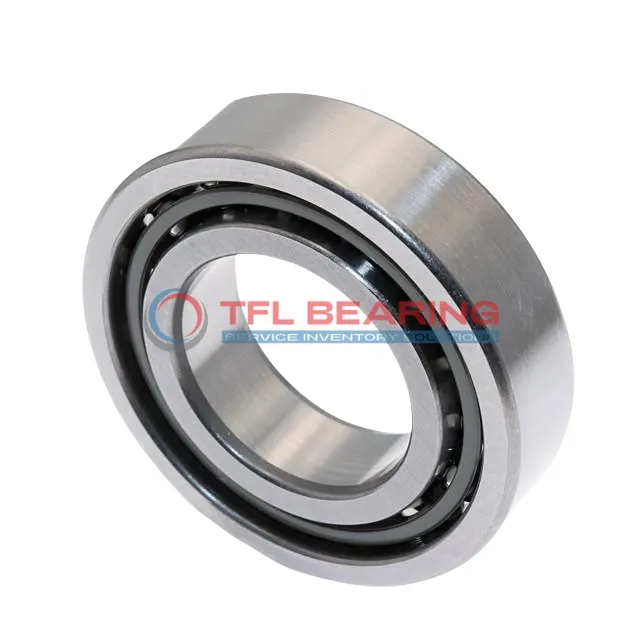

Super Precision Angular Contact Ball Bearings 7210 ACD/P4ATBTB

Brand: TFL Bearing Interchangeable: SKF 7210 ACD/P4ATBTB 50 mm × 90 mm × 60 mm Metric Open
Part number: 7210 ACD/P4ATBTB
Super Precision Angular Contact Ball Bearings 7210 ACD/P4ATBTB
In Stock
US$28.13 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia50 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia90 mm
Outer Dia Tolerance-0.004mm to 0
Width60 mm
Width Tolerance-0.2mm to 0
Ball Dia12.7 mm
Performance
PreloadLight / Class B
Dynamic Radial Load20,768 lbf
Static Radial Load22,050 lbf
Temperature Range- 30°C to 110 °C
Max Speed46,000 rpm
Characteristics
Ball Qty15
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement3 bearings <>> TBT
Number Of Bearings In Matched Set3
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight1.39 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7210 ACD/P4ATBTB is a super precision angular contact ball bearing with a 50mm bore and 90mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 20768 lbf and operates smoothly at speeds up to 46000 RPM.

Its 25° contact angle and matched arrangement of three bearings provide excellent stability for high-precision applications. The phenolic cage ensures quiet and efficient performance.

This bearing is preloaded for light use (Class B) and works in temperatures from -30°C to 110°C. Ideal for machine tools or spindle drives where accuracy is key.

Weighing 1.39kg, it’s a robust choice for demanding setups. Compliant with P4A tolerance standards for reliable performance.

Features

Performance Features of 7210 ACD/P4ATBTB Bearing

7210 ACD/P4ATBTB Bearing is designed with a 25° contact angle, optimising load distribution for precision applications.
Its chrome steel rings and balls enhance durability, while the phenolic cage reduces friction for smoother operation.

The bearing’s dynamic radial load capacity of 20768 lbf ensures reliable performance under stress.
With a maximum speed of 46,000 rpm, it balances high-speed operation with stability.

7210 ACD/P4ATBTB Bearing operates efficiently in temperatures ranging from -30°C to 110°C.
Its matched arrangement of three bearings (TBT) provides consistent performance in demanding setups.

Light preload (Class B) minimises vibration, making it ideal for precision machinery.
The open seal design allows for easy lubrication, extending maintenance intervals.

Application

Key Fields for 7210 ACD/P4ATBTB Bearing
7210 ACD/P4ATBTB Bearing is widely used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched arrangement of three bearings provides stability in demanding industrial environments.

In automotive applications, 7210 ACD/P4ATBTB Bearing supports high-speed components like turbochargers and transmission systems. Its light preload and phenolic cage contribute to smooth operation under radial and angular loads.

For robotics and automation, 7210 ACD/P4ATBTB Bearing excels in robotic arms and CNC machinery due to its P4A tolerance class. The chrome steel construction offers durability and consistent performance in repetitive motion tasks.

Medical imaging devices benefit from 7210 ACD/P4ATBTB Bearing’s low friction and high-speed capabilities. The open design allows for easy lubrication, ensuring long service life in critical healthcare equipment.
