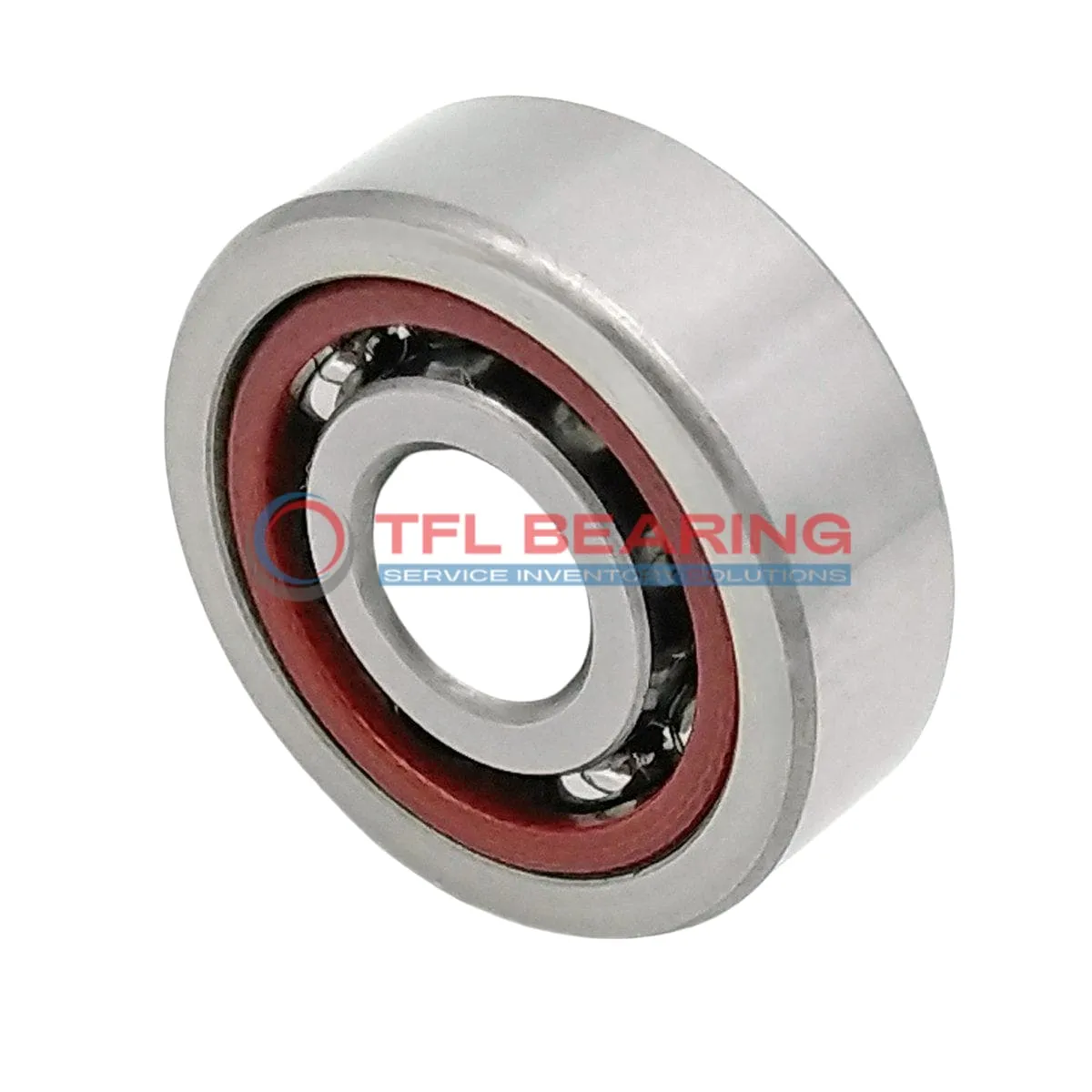

Super Precision Angular Contact Ball Bearings 7206 CD/P4ADFC

Super Precision Angular Contact Ball Bearings 7206 CD/P4ADFC

The 7206 CD/P4ADFC is a super precision angular contact ball bearing, measuring 30mm by 62mm by 32mm, crafted from durable chrome steel. It features a 15° contact angle and comes in a matched pair (DF arrangement) for balanced performance.

This bearing handles radial loads up to 8932 lbf and spins smoothly at speeds up to 71,500 RPM. Its phenolic cage ensures quiet operation and long service life, even under moderate preload (Class C).

The open design allows for easy lubrication, while the P4A tolerance class guarantees high precision. Ideal for applications like machine tool spindles or high-speed rotary systems where accuracy is key.

Weighing 0.39kg, it’s a robust yet lightweight solution for demanding environments. Operates reliably in temperatures from -30°C to 110°C. Interchangeable with SKF bearings for convenient replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7206 CD/P4ADFC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 32 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 13
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement 2 bearings >< DF
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing No
  • Preload Moderate / Class C
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 8932 lbf
  • Static Radial Load 7200 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 71500 rpm
  • Weight 0.39 kg
Super Precision Angular Contact Ball Bearings 7206 CD/P4ADFC dimension drawing
Download DWG Download PDF

Features

Performance Features of 7206 CD/P4ADFC Bearing

7206 CD/P4ADFC Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability under dynamic radial loads up to 8932 lbf.

The phenolic cage maintains ball alignment, reducing friction and enhancing smooth operation.
With a maximum speed of 71,500 rpm, it delivers reliable performance in high-speed scenarios.

7206 CD/P4ADFC Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its moderate preload (Class C) ensures stability and precision in matched bearing arrangements.

Application

Key Fields for 7206 CD/P4ADFC Bearing
7206 CD/P4ADFC Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched arrangement of two bearings provides stability under moderate preload conditions.

In robotics, 7206 CD/P4ADFC Bearing supports articulated arms, offering smooth movement and long service life. Its phenolic cage reduces friction, making it suitable for high-speed applications.

For automotive applications, 7206 CD/P4ADFC Bearing works well in wheel hubs and transmissions, handling both radial and axial loads efficiently. The chrome steel construction ensures durability even under demanding conditions.

Medical imaging devices benefit from 7206 CD/P4ADFC Bearing’s precision and reliability. The P4A tolerance class guarantees consistent performance in sensitive equipment.

In 3D printers, 7206 CD/P4ADFC Bearing ensures precise linear motion, contributing to high-quality prints. Its open design allows for easy lubrication, maintaining optimal performance over time.
