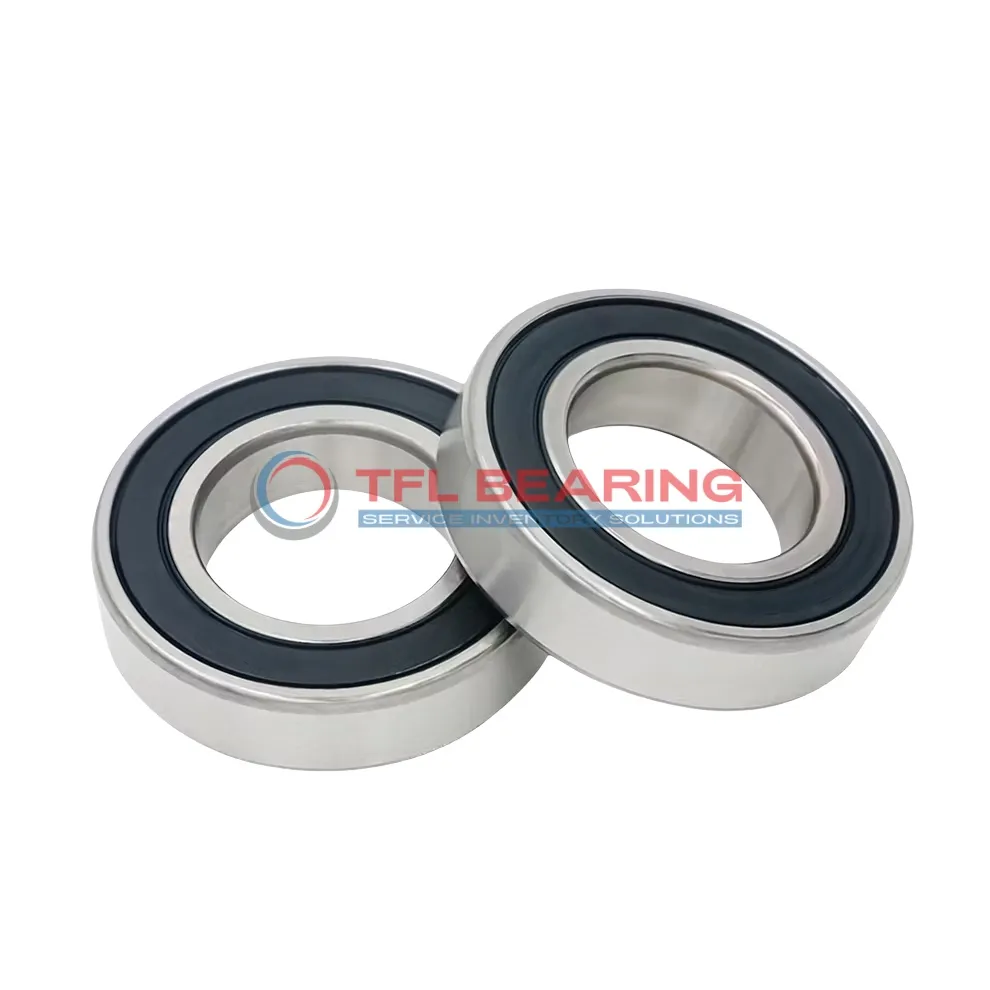

Single Row Deep Groove Ball Bearings 6012-2RS1/MTVM121

Single Row Deep Groove Ball Bearings 6012-2RS1/MTVM121

The 6012-2RS1/MTVM121 is a single-row deep groove ball bearing with a 60mm bore and 95mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 6609 lbf and operates smoothly at speeds up to 7100 RPM.

Its sealed design keeps out dust and moisture, extending its lifespan in harsh conditions. The chrome steel cage adds strength and durability, making it suitable for heavy-duty use.

This bearing works well in temperatures from -30°C to 120°C, fitting various industrial applications. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Weighing 403g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for diverse environments. Ideal for machinery like pumps or electric motors where radial loads are common.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6012-2RS1/MTVM121
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 95 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 18 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6609 lbf
  • Static Radial Load 5216 lbf
  • Max Speed 7100 rpm
  • Weight 403 g
  • price（$） 21.141
Single Row Deep Groove Ball Bearings 6012-2RS1/MTVM121 dimension drawing
Download DWG Download PDF

Features

Why Choose 6012-2RS1/MTVM121 Bearing for Precision Tasks?

6012-2RS1/MTVM121 Bearing features a sealed design, protecting it from dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

The bearing operates smoothly within a temperature range of -30°C to 120°C, making it versatile for various environments.
With a dynamic radial load capacity of 6609 lbf, it handles demanding tasks with ease.

6012-2RS1/MTVM121 Bearing’s ABEC 1 tolerance class guarantees precision and reliability in operation.
Its maximum speed of 7,100 rpm ensures efficient performance in high-speed applications.

The sealed design of 6012-2RS1/MTVM121 Bearing reduces maintenance needs, saving time and costs.
Its chrome steel cage keeps the balls aligned, extending the bearing’s service life.

Application

Industrial Uses of 6012-2RS1/MTVM121 Bearing
The 6012-2RS1/MTVM121 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep out dust and debris. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 6012-2RS1/MTVM121 Bearing fits well in wheel hubs and alternators, providing smooth rotation under radial loads. The ABEC 1 tolerance makes it a reliable choice for standard automotive needs.

For home appliances, 6012-2RS1/MTVM121 Bearing works efficiently in washing machines and fans, where its sealed feature reduces maintenance. The compact size and reliable performance make it a practical option for everyday use.

In automation systems, 6012-2RS1/MTVM121 Bearing supports conveyor belts and robotic arms, ensuring consistent movement. The metric sizing allows easy integration into various European and Asian machinery designs.
