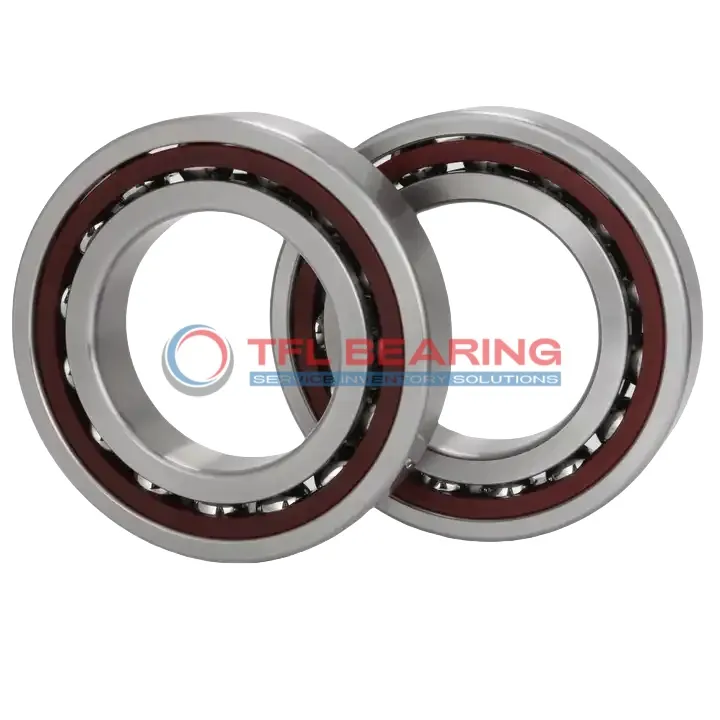

Super Precision Angular Contact Ball Bearings 71928 CDGA/P4

Brand: TFL Bearing Interchangeable: SKF 71928 CDGA/P4 280 mm × 380 mm × 24 mm Metric Open
Part number: 71928 CDGA/P4
Super Precision Angular Contact Ball Bearings 71928 CDGA/P4
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia280 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia380 mm
Outer Dia Tolerance-0.004mm to 0
Width24 mm
Width Tolerance-0.2mm to 0
Ball Dia15.875 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load21,510 lbf
Static Radial Load26,100 lbf
Temperature Range- 30°C to 110 °C
Max Speed7,500 rpm
Characteristics
Ball Qty29
Contact Angle15°
Tolerance ClassP4
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementAvailable
Number Of Bearings In Matched Set3
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight1.65 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 71928 CDGA/P4 is a super precision angular contact ball bearing, measuring 280mm by 380mm by 24mm, crafted from durable chrome steel. It handles radial loads up to 21510 lbf and operates smoothly at speeds up to 7500 RPM.

With a 15° contact angle and open design, it offers excellent performance in high-precision applications. The phenolic cage ensures quiet operation and long service life.

This bearing comes in a matched set of three, suitable for universal mounting (back-to-back, face-to-face, or tandem). Ideal for machine tools or spindle systems where precision and reliability are key.

Weighing 1.65kg, it’s robust yet manageable for its size. Compliant with P4 tolerance standards, it’s interchangeable with SKF bearings for easy replacement.

Features

Performance Features of 71928 CDGA/P4 Bearing

71928 CDGA/P4 Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls provide strong resistance to radial loads, with a dynamic capacity of 21510 lbf.

The phenolic cage ensures smooth operation, even at high speeds of up to 7,500 rpm.
With a P4 tolerance class, this bearing delivers precision performance in demanding conditions.

71928 CDGA/P4 Bearing is available in matched sets, offering flexibility for back-to-back or face-to-face arrangements.
Its extra-light preload reduces friction, enhancing efficiency and longevity.

Application

Key Fields for 71928 CDGA/P4 Bearing
71928 CDGA/P4 Bearing is widely used in high-precision machine tools, where its 15° contact angle ensures accurate radial and axial load handling. The phenolic cage reduces friction, making it suitable for high-speed operations.

In aerospace applications, 71928 CDGA/P4 Bearing supports critical components like turbine shafts, thanks to its P4 tolerance class and matched arrangement. The chrome steel construction provides durability under extreme conditions.

For robotics, 71928 CDGA/P4 Bearing’s extra light preload enhances precision in robotic arms and automated systems. Its universal matching capability allows for flexible configurations in various setups.

Medical imaging devices benefit from 71928 CDGA/P4 Bearing’s consistent performance and low maintenance requirements. The lubricated design ensures smooth operation in sensitive environments.
