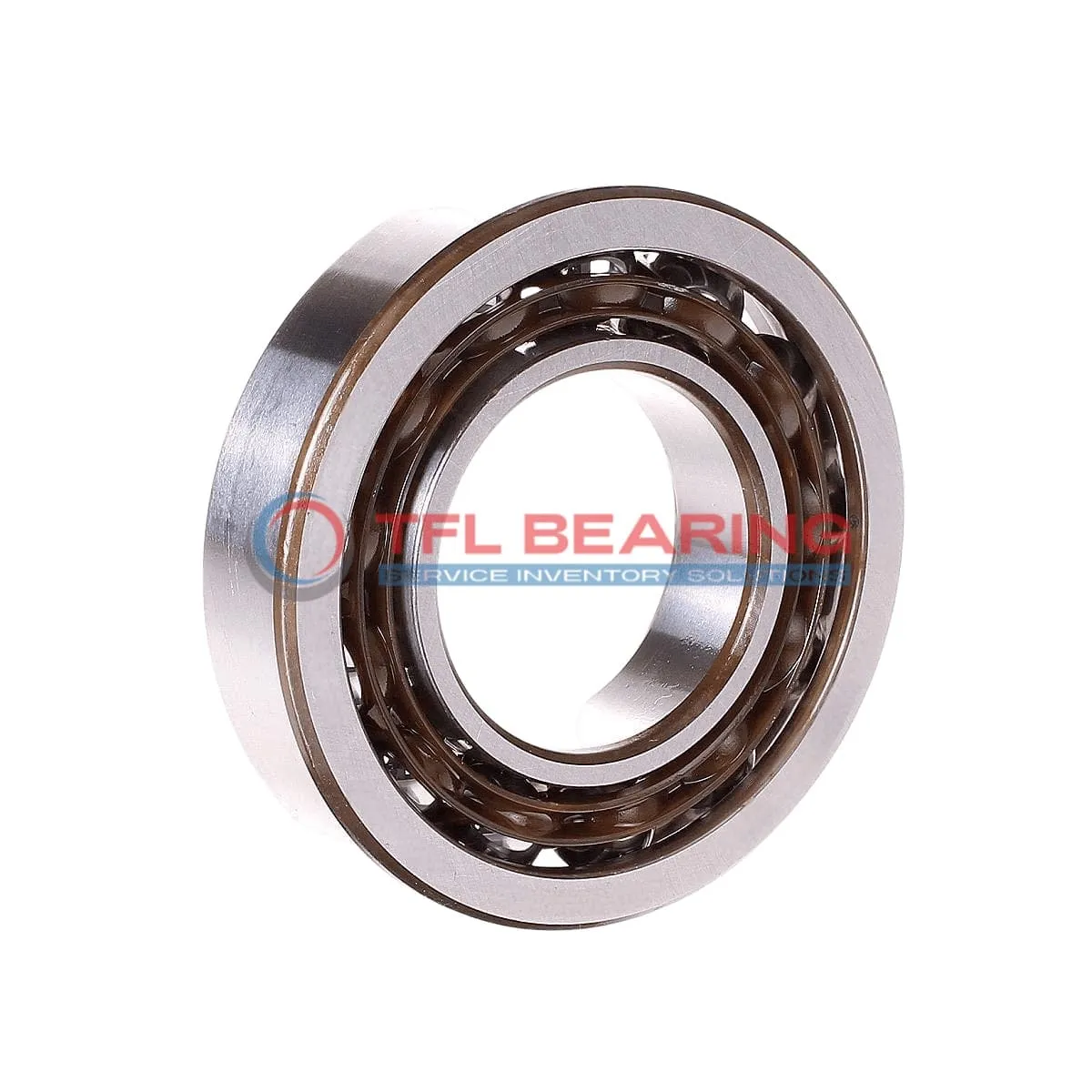

Super Precision Angular Contact Ball Bearings 71972 CDMA/HCP4A

Brand: TFL Bearing Interchangeable: SKF 71972 CDMA/HCP4A 360 mm × 480 mm × 56 mm Metric Open
Part number: 71972 CDMA/HCP4A
Super Precision Angular Contact Ball Bearings 71972 CDMA/HCP4A
In Stock
US$1,394.72 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia360 mm
Bore Dia Tolerance-0.016mm to 0
Outer Dia480 mm
Outer Dia Tolerance-0.02mm to 0
Width56 mm
Width Tolerance-0.3mm to 0
Ball Dia38.1 mm
Performance
PreloadAvailable
Dynamic Radial Load89,325 lbf
Static Radial Load159,750 lbf
Temperature Range-30° to 110 °C
Max Speed4,300 rpm
Characteristics
Ball Qty30
Contact Angle15°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight22.6 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 71972 CDMA/HCP4A is a super precision angular contact ball bearing with a 360mm bore and 480mm outer diameter, crafted from durable chrome steel. Its 15° contact angle and ceramic balls ensure smooth operation under heavy loads.

This bearing handles dynamic radial loads up to 89325 lbf and reaches speeds of 4300 RPM. The phenolic cage provides stability, while the P4 tolerance class guarantees high precision for demanding applications.

Its open design allows for easy lubrication, extending service life. Ideal for machine tools or high-precision industrial equipment where accuracy and reliability are crucial.

Weighing 22.6kg, it’s a robust solution for heavy-duty use. Compliant with standard temperature ranges from -30°C to 110°C, it performs consistently in various environments.

Features

Performance Features of 71972 CDMA/HCP4A Bearing

71972 CDMA/HCP4A Bearing features a 15° contact angle, optimised for angular contact loads.
Its chrome steel rings and ceramic balls enhance durability and reduce friction.

With a dynamic radial load capacity of 89,325 lbf, it handles demanding applications with ease.
The phenolic cage ensures smooth operation and minimises wear.

71972 CDMA/HCP4A Bearing operates efficiently at speeds up to 4,300 rpm.
Its precision P4 tolerance class guarantees consistent performance in high-accuracy tasks.

The open design allows for easy lubrication, extending maintenance intervals.
Weighing 22.6 kg, it maintains stability even under heavy loads.

Application

Key Fields for 71972 CDMA/HCP4A Bearing
71972 CDMA/HCP4A Bearing is widely used in high-precision machine tools, where its 15° contact angle ensures accurate radial and axial load distribution. The ceramic balls reduce friction, making it ideal for high-speed spindle applications.

In aerospace components, 71972 CDMA/HCP4A Bearing provides reliable performance in gearbox systems, thanks to its phenolic cage and chrome steel rings. Its P4 tolerance class guarantees precision even under demanding conditions.

For robotics, 71972 CDMA/HCP4A Bearing’s matched arrangement option allows for smooth motion in articulated arms. The open design simplifies lubrication, extending service life in continuous operation scenarios.

Medical imaging devices benefit from 71972 CDMA/HCP4A Bearing’s low heat generation and stable operation. The ceramic balls ensure minimal vibration, crucial for maintaining image clarity in sensitive equipment.

In industrial pumps, 71972 CDMA/HCP4A Bearing handles both radial and thrust loads efficiently. Its robust construction and lubricated design make it suitable for heavy-duty, long-term use.
