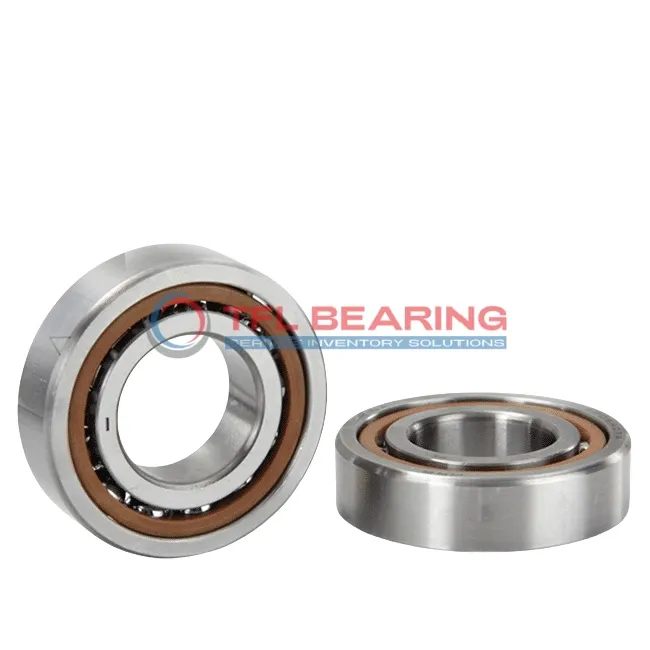

Super Precision Angular Contact Ball Bearings 71915 CD/P4ADBC

Super Precision Angular Contact Ball Bearings 71915 CD/P4ADBC

The 71915 CD/P4ADBC is a super precision angular contact ball bearing with a 75mm bore and 105mm outer diameter, crafted from high-quality chrome steel. It features a 15° contact angle and comes in a matched pair (DB arrangement) for balanced performance.

This bearing handles radial loads up to 13162 lbf and operates smoothly at speeds up to 36000 RPM. Its moderate preload (Class C) ensures stability, while the open design allows for easy lubrication.

The phenolic cage reduces friction and wear, making it durable for high-speed applications. With a temperature range of -30°C to 110°C, it’s suitable for demanding environments.

Ideal for precision machinery like spindles or CNC equipment, this bearing is interchangeable with SKF models. Weighing 0.7kg, it offers a robust yet lightweight solution for angular contact needs.

Compliant with P4A tolerance standards, it ensures reliable performance in critical applications. The 26 balls (9.525mm each) provide smooth rotation and even load distribution.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 71915 CD/P4ADBC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 105 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 32 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 26
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement 2 bearings <> DB
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing No
  • Preload Moderate / Class C
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 13162 lbf
  • Static Radial Load 16875 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 36000 rpm
  • Weight 0.7 kg
Super Precision Angular Contact Ball Bearings 71915 CD/P4ADBC dimension drawing
Download DWG Download PDF

Features

How Is 71915 CD/P4ADBC Bearing Engineered for Reliability?

71915 CD/P4ADBC Bearing features a 15° contact angle, optimised for handling combined radial and axial loads.

Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and wear.

With a dynamic radial load capacity of 13162 lbf, it performs reliably in high-speed applications.

The P4A tolerance class guarantees precision, making it suitable for demanding tasks.

Application

Key Fields for 71915 CD/P4ADBC Bearing
71915 CD/P4ADBC Bearing is widely used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched arrangement of two bearings provides stability in demanding operations.

In robotics, 71915 CD/P4ADBC Bearing supports articulated arms, offering smooth movement and reliable performance. Its moderate preload helps maintain precision in repetitive tasks.

For aerospace applications, 71915 CD/P4ADBC Bearing handles radial and axial loads in components like landing gear systems. The phenolic cage material reduces friction, enhancing efficiency.

Medical imaging devices benefit from 71915 CD/P4ADBC Bearing’s low noise and high-speed capabilities. The chrome steel construction ensures durability in critical healthcare environments.

Automotive testing equipment often relies on 71915 CD/P4ADBC Bearing for its consistent performance under varying loads. The P4A tolerance class guarantees precision in measurement systems.
