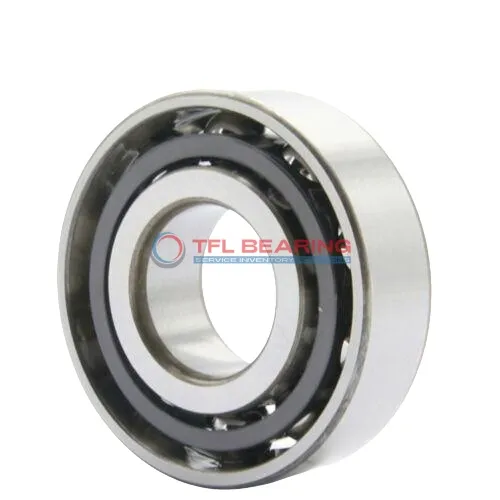

Super Precision Angular Contact Ball Bearings 71807 CDGA/HCP4

Brand: TFL Bearing Interchangeable: SKF 71807 CDGA/HCP4 35 mm × 47 mm × 7 mm Metric Open
Part number: 71807 CDGA/HCP4
Super Precision Angular Contact Ball Bearings 71807 CDGA/HCP4
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia35 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia47 mm
Outer Dia Tolerance-0.004mm to 0
Width7 mm
Width Tolerance-0.2mm to 0
Ball Dia3.175 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load1,040 lbf
Static Radial Load968 lbf
Temperature Range- 30°C to 110 °C
Max Speed56,000 rpm
Characteristics
Ball Qty26
Contact Angle15°
Tolerance ClassP4
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set3
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.026 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 71807 CDGA/HCP4 is a super precision angular contact ball bearing with a 35mm bore and 47mm outer diameter, crafted from high-quality chrome steel. Its compact 7mm width makes it suitable for tight spaces, while the ceramic balls enhance performance.

With a 15° contact angle, it handles radial loads up to 1040 lbf and spins smoothly at speeds up to 56,000 RPM. The phenolic cage ensures durability, and the extra light preload (Class A) allows for precise operation.

The open design simplifies lubrication, and it works well in temperatures from -30°C to 110°C. This bearing is universal matching, suitable for back-to-back, face-to-face, or tandem arrangements.

Ideal for high-precision applications like machine tools or medical equipment, it’s interchangeable with SKF bearings. Weighing just 0.026kg, it’s lightweight yet robust. Compliant with P4 tolerance class for exceptional accuracy.

Features

Why Choose 71807 CDGA/HCP4 Bearing for Precision Tasks?

71807 CDGA/HCP4 Bearing features a 15° contact angle, ideal for handling combined radial and axial loads with precision.
Its chrome steel rings and ceramic balls ensure smooth operation, even at high speeds up to 56,000 rpm.

The phenolic cage maintains ball alignment, reducing friction and wear for consistent performance.
With a P4 tolerance class, it delivers exceptional accuracy in demanding applications.

Lubricated for longevity, 71807 CDGA/HCP4 Bearing operates efficiently within a -30°C to 110°C range.
Its lightweight design at 0.026 kg makes it suitable for compact, high-speed machinery.

Application

Common Applications of 71807 CDGA/HCP4 Bearing
In high-speed machine tools, 71807 CDGA/HCP4 Bearing excels due to its ceramic balls and phenolic cage, which reduce friction and heat buildup. The P4 tolerance ensures precision in demanding industrial settings.

Where Is 71807 CDGA/HCP4 Bearing Used?
You’ll often find 71807 CDGA/HCP4 Bearing in automotive transmissions, where its angular contact design handles combined loads smoothly. The extra-light preload makes it ideal for applications requiring minimal resistance.

Perfect Fit for Automation: 71807 CDGA/HCP4 Bearing
Robotic arms benefit from 71807 CDGA/HCP4 Bearing’s lightweight and high-speed capabilities. Its open design allows for easy lubrication, extending service life in continuous operation.

Medical vs Industrial: Where 71807 CDGA/HCP4 Bearing Excels
In medical imaging devices, 71807 CDGA/HCP4 Bearing’s precision and low noise are crucial. Industrial spindles, however, rely on its ability to handle high radial and axial loads simultaneously.
