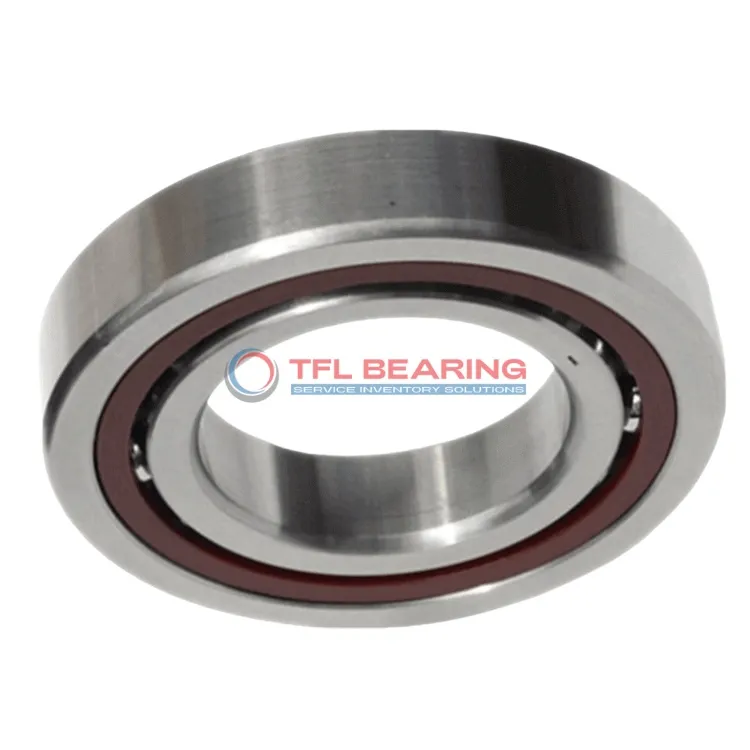

Super Precision Angular Contact Ball Bearings 71805 CD/HCP4DBAGMM

Brand: TFL Bearing Interchangeable: SKF 71805 CD/HCP4DBAGMM 25 mm × 37 mm × 14 mm Metric Open
Part number: 71805 CD/HCP4DBAGMM
Super Precision Angular Contact Ball Bearings 71805 CD/HCP4DBAGMM
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia25 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia37 mm
Outer Dia Tolerance-0.004mm to 0
Width14 mm
Width Tolerance-0.2mm to 0
Ball Dia3.175 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load1,521 lbf
Static Radial Load1,440 lbf
Temperature Range- 30°C to 110 °C
Max Speed103,000 rpm
Characteristics
Ball Qty20
Contact Angle15°
Tolerance ClassP4
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement2 bearings <> DB
Number Of Bearings In Matched Set2
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationGrease
Weight0.038 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 71805 CD/HCP4DBAGMM is a super precision angular contact ball bearing with a 25mm bore and 37mm outer diameter, designed for high-speed applications. Its compact 14mm width and lightweight 0.038kg design make it easy to fit into tight spaces.

Made from chrome steel with ceramic balls, it handles radial loads up to 1521 lbf and spins smoothly at speeds up to 103,000 RPM. The phenolic cage ensures durability, while the open design allows for easy lubrication.

This bearing features a 15° contact angle and comes in a matched set of two for extra light preload. Ideal for precision machinery like spindles or dental tools where accuracy and speed are key.

With a temperature range of -30°C to 110°C, it performs reliably in various conditions. Compliant with P4 tolerance standards, it’s interchangeable with SKF bearings for convenient replacements.

Features

Why Choose 71805 CD/HCP4DBAGMM Bearing for Precision Tasks?

71805 CD/HCP4DBAGMM Bearing features a 15° contact angle, optimised for high-precision angular contact applications.
Its ceramic balls and chrome steel rings ensure smooth operation with minimal friction.

The phenolic cage maintains ball alignment, enhancing durability even at high speeds up to 103,000 rpm.
With a P4 tolerance class, it delivers consistent performance in demanding conditions.

Grease lubrication ensures long service life with minimal maintenance.
The matched arrangement of two bearings provides extra stability for precise tasks.

Application

Industrial Uses of 71805 CD/HCP4DBAGMM Bearing
This bearing is commonly used in high-speed machine spindles, where its ceramic balls and phenolic cage reduce friction. The matched DB arrangement ensures stability in precision grinding applications.

Where Is 71805 CD/HCP4DBAGMM Bearing Used?
You’ll often find it in CNC machining centres, supporting rotary tables that require tight tolerances. Its P4 class accuracy makes it ideal for maintaining positional control.

Built for Heavy-Duty Use: 71805 CD/HCP4DBAGMM Bearing
The chrome steel rings handle angular loads well in industrial gearboxes. Extra light preload helps minimise vibration during high-speed operation.

Automotive vs Aerospace: Applications of 71805 CD/HCP4DBAGMM Bearing
In automotive systems, it’s used in turbocharger shafts for its heat resistance. Aerospace applications benefit from its reliability in actuator mechanisms.

Perfect Fit for Automation: 71805 CD/HCP4DBAGMM Bearing
Robotic arm joints frequently use this bearing for smooth, precise movement. The grease lubrication ensures long service life in continuous operation.
