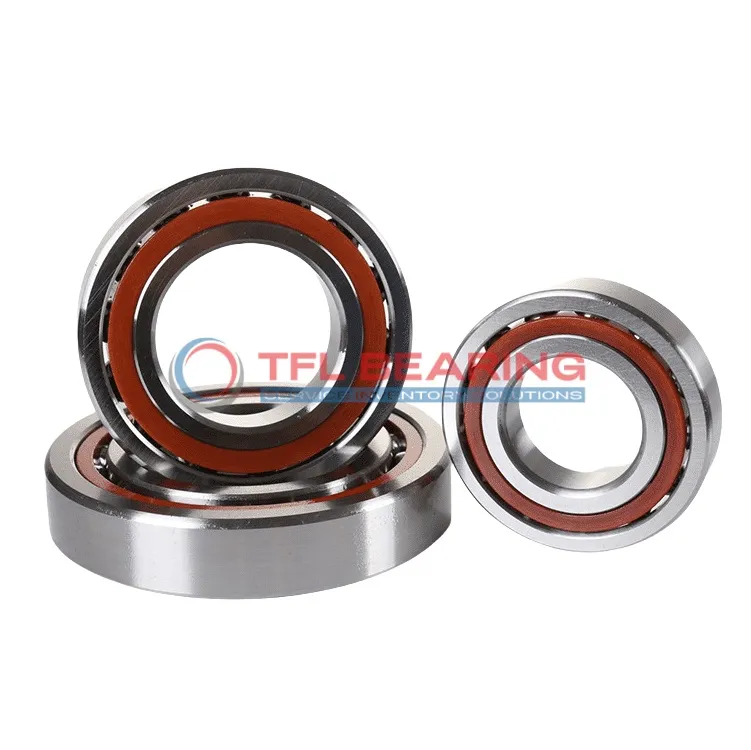

Super Precision Angular Contact Ball Bearings 7016 CD/P4ATBTB

Super Precision Angular Contact Ball Bearings 7016 CD/P4ATBTB

The 7016 CD/P4ATBTB is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 31500 lbf and operates smoothly at speeds up to 28000 RPM.

Its 15° contact angle and matched arrangement of three bearings provide excellent stability for angular loads. The phenolic cage ensures quiet, long-lasting performance, even under light preload conditions.

This bearing is ideal for high-precision applications like machine tool spindles or high-speed robotics. It works reliably in temperatures from -30°C to 110°C.

Weighing 2.56kg, it’s robust yet manageable for its size. Compliant with P4A tolerance standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7016 CD/P4ATBTB
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 66 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 14.288 mm
  • Ball Qty 20
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement 3 bearings <>> TBT
  • Number Of Bearings In Matched Set 3
  • Universal Matching Bearing No
  • Preload Light / Class B
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 31500 lbf
  • Static Radial Load 41175 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 28000 rpm
  • Weight 2.56 kg
Super Precision Angular Contact Ball Bearings 7016 CD/P4ATBTB dimension drawing
Download DWG Download PDF

Features

Performance Features of 7016 CD/P4ATBTB Bearing

7016 CD/P4ATBTB Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability under dynamic radial loads up to 31,500 lbf.

The phenolic cage maintains ball alignment, reducing friction and enhancing operational smoothness.
With a maximum speed of 28,000 rpm, it delivers reliable performance in high-speed scenarios.

7016 CD/P4ATBTB Bearing operates efficiently in temperatures ranging from -30°C to 110°C.
Its precision P4A tolerance class ensures consistent performance in demanding applications.

The matched arrangement of three bearings provides stability and balanced load handling.
Light preload class B further enhances its precision and longevity.

Application

Industrial Uses of 7016 CD/P4ATBTB Bearing
7016 CD/P4ATBTB Bearing is commonly used in high-precision machine tools, where its angular contact design handles both radial and axial loads efficiently. The matched set of three bearings ensures stability in demanding industrial environments.

Where Is 7016 CD/P4ATBTB Bearing Used?
You’ll find 7016 CD/P4ATBTB Bearing in automotive applications like high-performance gearboxes, where its light preload and phenolic cage reduce friction. Its metric sizing makes it a versatile choice for European and Asian vehicle designs.

Built for Heavy-Duty Use: 7016 CD/P4ATBTB Bearing
7016 CD/P4ATBTB Bearing excels in robotics, particularly in robotic arms requiring precise movement and durability. The chrome steel construction ensures long-lasting performance even under continuous operation.

Medical vs Industrial: Where 7016 CD/P4ATBTB Bearing Excels
In medical imaging devices, 7016 CD/P4ATBTB Bearing provides smooth, quiet operation essential for accurate diagnostics. Its industrial counterpart shines in conveyor systems, where reliability under heavy loads is key.

Perfect Fit for Automation: 7016 CD/P4ATBTB Bearing
7016 CD/P4ATBTB Bearing is ideal for automated production lines, where its high-speed capability and precision alignment improve efficiency. The open design allows for easy lubrication, reducing downtime.
