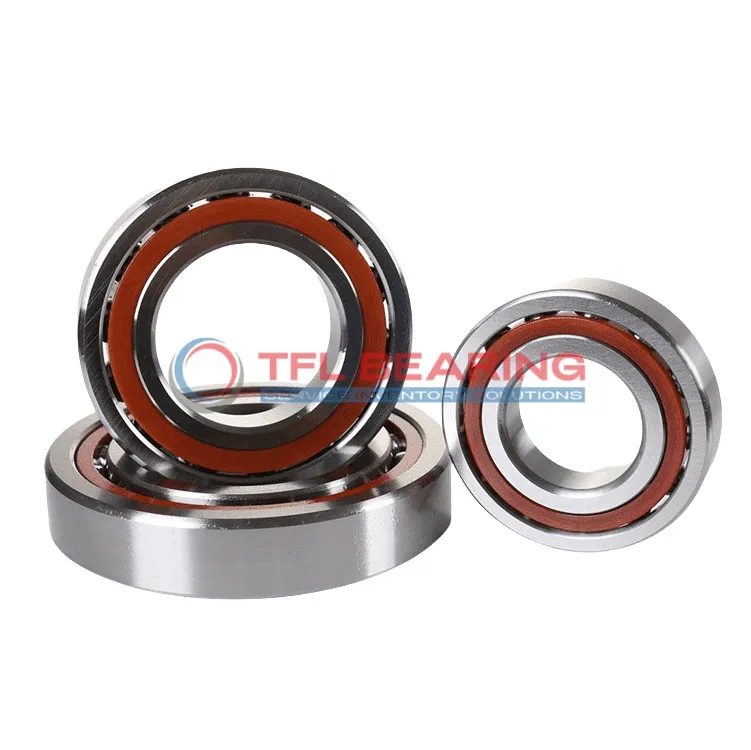

Super Precision Angular Contact Ball Bearings 7016 ACD/P4AQBCB

Super Precision Angular Contact Ball Bearings 7016 ACD/P4AQBCB

The 7016 ACD/P4AQBCB is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from durable chrome steel. It supports radial loads up to 37125 lbf and operates smoothly at speeds up to 28000 RPM.

With a 25° contact angle and light preload, it offers excellent stability for high-precision applications. The phenolic cage ensures quiet operation and long service life.

This bearing comes in a matched set of four, ideal for applications requiring tight tolerances like machine tool spindles or high-speed robotics. It works well in temperatures from -30°C to 110°C.

Weighing 3.42kg, it’s robust yet manageable for its size. Compliant with P4A tolerance standards, it’s a reliable choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7016 ACD/P4AQBCB
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 88 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 14.288 mm
  • Ball Qty 20
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement 4 bearings <<>> QBC
  • Number Of Bearings In Matched Set 4
  • Universal Matching Bearing No
  • Preload Light / Class B
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 37125 lbf
  • Static Radial Load 52200 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 28000 rpm
  • Weight 3.42 kg
  • Price（$） 668.754
Super Precision Angular Contact Ball Bearings 7016 ACD/P4AQBCB dimension drawing
Download DWG Download PDF

Features

Why Choose 7016 ACD/P4AQBCB Bearing for Precision Tasks?

7016 ACD/P4AQBCB Bearing features a 25° contact angle, ideal for handling combined radial and axial loads.

Its P4A tolerance class ensures high precision, making it suitable for demanding applications.

The phenolic cage enhances stability and reduces friction during high-speed operation.

With a maximum speed of 28,000 rpm, it delivers reliable performance in precision machinery.

Application

Industrial Uses of 7016 ACD/P4AQBCB Bearing
7016 ACD/P4AQBCB Bearing is commonly used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The phenolic cage reduces friction, making it suitable for continuous operation.

Where Is 7016 ACD/P4AQBCB Bearing Used?
In automotive applications, 7016 ACD/P4AQBCB Bearing supports wheel hubs and transmission systems, handling both radial and axial loads efficiently. Its light preload class enhances performance in dynamic driving conditions.

Built for Heavy-Duty Use: 7016 ACD/P4AQBCB Bearing
This bearing excels in robotics, particularly in robotic arms requiring smooth, precise movement. The chrome steel construction provides durability, while the open seal allows for easy lubrication.

Automotive vs Aerospace: Applications of 7016 ACD/P4AQBCB Bearing
In aerospace, 7016 ACD/P4AQBCB Bearing is ideal for flight control systems, where reliability is critical. For automotive, it’s often found in high-performance engines, balancing speed and load capacity.

Perfect Fit for Automation: 7016 ACD/P4AQBCB Bearing
7016 ACD/P4AQBCB Bearing is a go-to choice for automated production lines, ensuring consistent performance in pick-and-place machines. Its matched arrangement of four bearings provides stability under varying loads.
