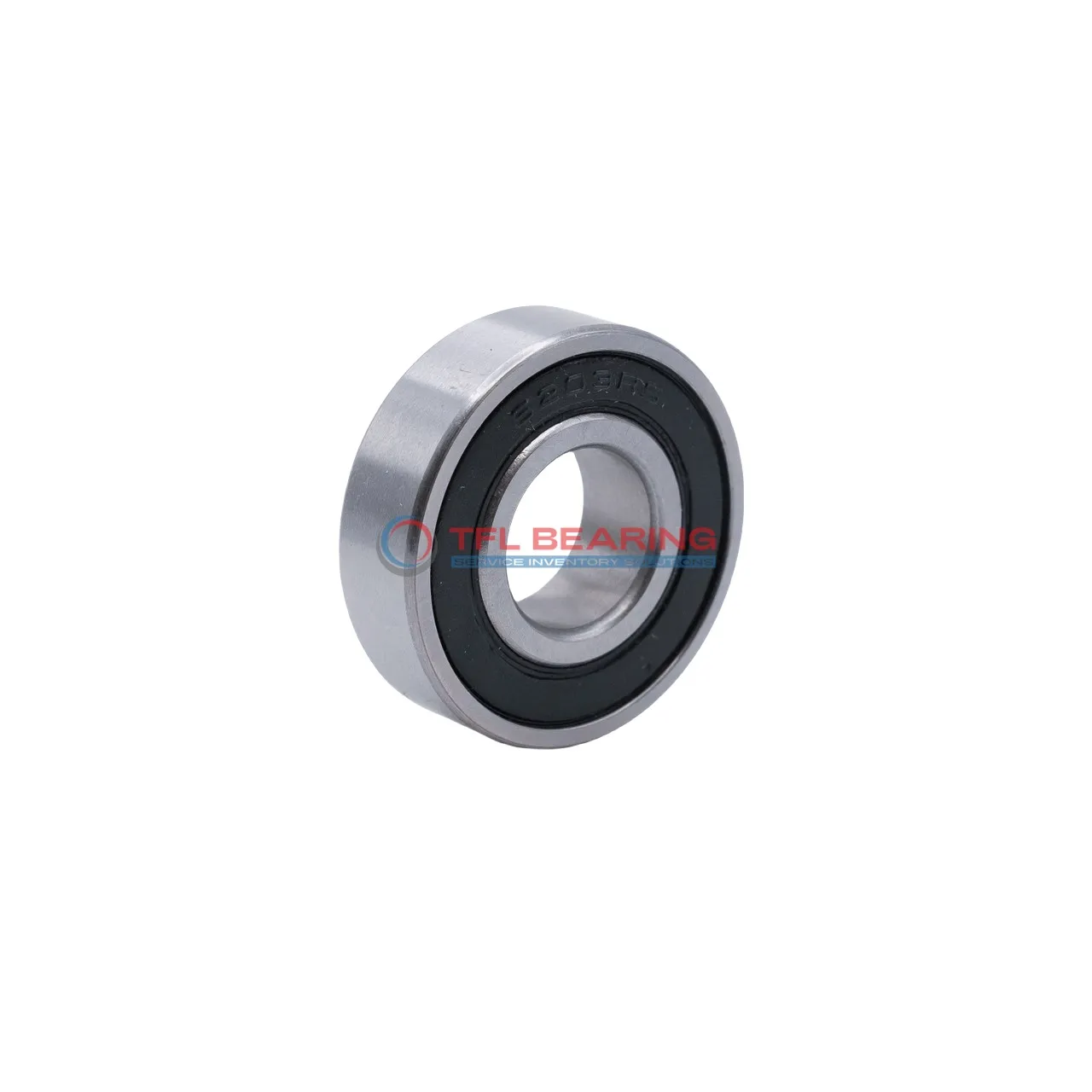

Single Row Deep Groove Ball Bearings 6000-2RZ/W64J

Single Row Deep Groove Ball Bearings 6000-2RZ/W64J

The 6000-2RZ/W64J is a compact single-row deep groove ball bearing, measuring 10mm in bore and 26mm in outer diameter, with a width of just 8mm. Made from durable chrome steel, it’s built to handle radial loads up to 1023 lbf.

Its sealed design and solid oil lubrication keep it running smoothly, even at high speeds of up to 31,000 RPM. The bearing operates reliably in temperatures from -30°C to 120°C.

The ABEC 1 tolerance ensures consistent performance, while the chrome steel cage adds strength. It’s interchangeable with SKF bearings, making replacements straightforward.

Ideal for small machinery or electric motors where space is limited but reliability is key. Compliant with RoHS and REACH standards, it’s a safe and practical choice for various applications. Weighing only 19g, it’s lightweight yet sturdy.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6000-2RZ/W64J
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1023 lbf
  • Static Radial Load 438 lbf
  • Max Speed 31000 rpm
  • Weight 19 g
Single Row Deep Groove Ball Bearings 6000-2RZ/W64J dimension drawing
Download DWG Download PDF

Features

Performance Features of 6000-2RZ/W64J Bearing

6000-2RZ/W64J Bearing is built with chrome steel rings and balls, offering reliable radial load support.
Its sealed design and solid oil lubrication ensure smooth operation with minimal maintenance.

The bearing handles dynamic radial loads up to 1023 lbf, making it suitable for various applications.
With a maximum speed of 31,000 rpm, it delivers consistent performance in demanding conditions.

6000-2RZ/W64J Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its compact size and lightweight design make it ideal for space-constrained installations.

Application

Industrial Uses of 6000-2RZ/W64J Bearing
6000-2RZ/W64J Bearing is commonly used in small industrial motors and pumps, where its sealed design helps keep out dust and debris. The solid oil lubrication ensures long service life even in continuous operation.

Where Is 6000-2RZ/W64J Bearing Used?
You’ll often find 6000-2RZ/W64J Bearing in household appliances like washing machines and fans, thanks to its quiet and smooth performance. Its compact size makes it ideal for space-constrained applications.

Built for Heavy-Duty Use: 6000-2RZ/W64J Bearing
6000-2RZ/W64J Bearing handles radial loads well in automotive components such as alternators and small gearboxes. The chrome steel construction provides good wear resistance for these demanding environments.

Light-Duty vs Heavy-Duty: Best Uses for 6000-2RZ/W64J Bearing
In light-duty applications like office printers, 6000-2RZ/W64J Bearing offers reliable performance with minimal maintenance. For heavier tasks, it’s also suitable for conveyor systems in packaging machinery.

Perfect Fit for Automation: 6000-2RZ/W64J Bearing
6000-2RZ/W64J Bearing works well in robotic joints and small automation equipment, where precision and durability are key. The ABEC 1 tolerance ensures consistent performance in these precision applications.
