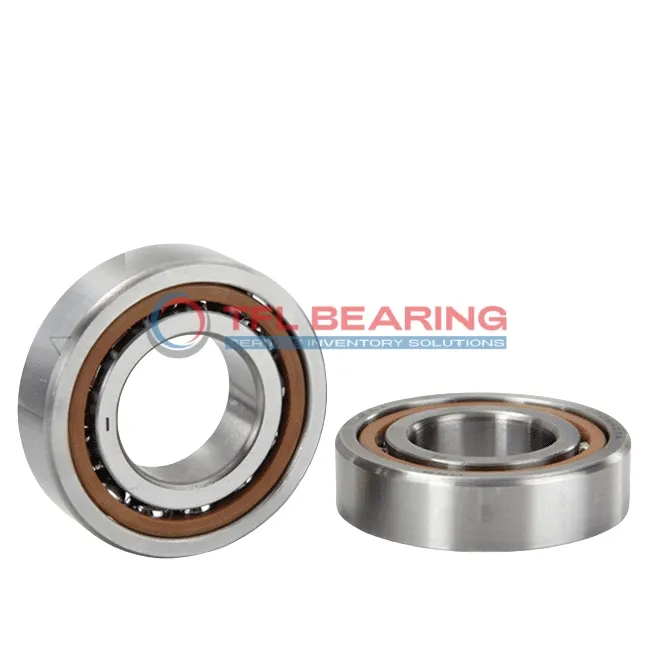

Super Precision Angular Contact Ball Bearings 7016 ACD/P4ADBG53

Brand: TFL Bearing Interchangeable: SKF 7016 ACD/P4ADBG53 80 mm × 125 mm × 44 mm Metric Open
Part number: 7016 ACD/P4ADBG53
Super Precision Angular Contact Ball Bearings 7016 ACD/P4ADBG53
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia80 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia125 mm
Outer Dia Tolerance-0.004mm to 0
Width44 mm
Width Tolerance-0.2mm to 0
Ball Dia14.288 mm
Performance
PreloadAvailable
Dynamic Radial Load22,725 lbf
Static Radial Load26,100 lbf
Temperature Range- 30°C to 110 °C
Max Speed28,000 rpm
Characteristics
Ball Qty20
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement2 bearings <> DB
Number Of Bearings In Matched Set2
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight1.71 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7016 ACD/P4ADBG53 is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 22725 lbf and spins smoothly at speeds up to 28000 RPM.

With a 25° contact angle and matched arrangement of two bearings, it offers excellent stability for angular loads. The open design and phenolic cage ensure reliable performance in demanding conditions.

This bearing is ideal for high-precision applications like machine tool spindles or industrial pumps. Its P4A tolerance class guarantees tight precision, while the lubricated design reduces maintenance needs.

Weighing 1.71kg, it operates in temperatures from -30°C to 110°C. Compatible with SKF bearings, it’s a practical choice for replacements or upgrades.

Features

Performance Features of 7016 ACD/P4ADBG53 Bearing

7016 ACD/P4ADBG53 Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability under high dynamic radial loads of 22725 lbf.

The phenolic cage maintains ball alignment, reducing friction and enhancing performance.
With a maximum speed of 28,000 rpm, it suits high-speed operations while maintaining precision.

7016 ACD/P4ADBG53 Bearing operates efficiently in temperatures from -30°C to 110°C.
Its matched arrangement of two bearings provides stability and reliable performance.

The P4A tolerance class ensures high precision, making it ideal for demanding applications.
Lubrication is pre-applied, simplifying initial setup and reducing maintenance needs.

Application

Industrial Uses of 7016 ACD/P4ADBG53 Bearing
7016 ACD/P4ADBG53 Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched arrangement of two bearings provides stability under heavy radial and axial loads.

In automotive applications, 7016 ACD/P4ADBG53 Bearing supports high-speed components like turbochargers and gearbox shafts. Its phenolic cage offers low friction, making it suitable for demanding driving conditions.

For automation systems, 7016 ACD/P4ADBG53 Bearing is ideal for robotic arms and CNC machines, thanks to its P4A tolerance class. The open seal design allows for easy lubrication, extending service life in continuous operations.

Medical imaging devices benefit from 7016 ACD/P4ADBG53 Bearing’s smooth performance and low noise levels. The chrome steel construction ensures reliability in critical diagnostic equipment.

In aerospace applications, 7016 ACD/P4ADBG53 Bearing handles high-speed rotations in turbine systems. Its preload capability maintains precision even under extreme temperature variations.
