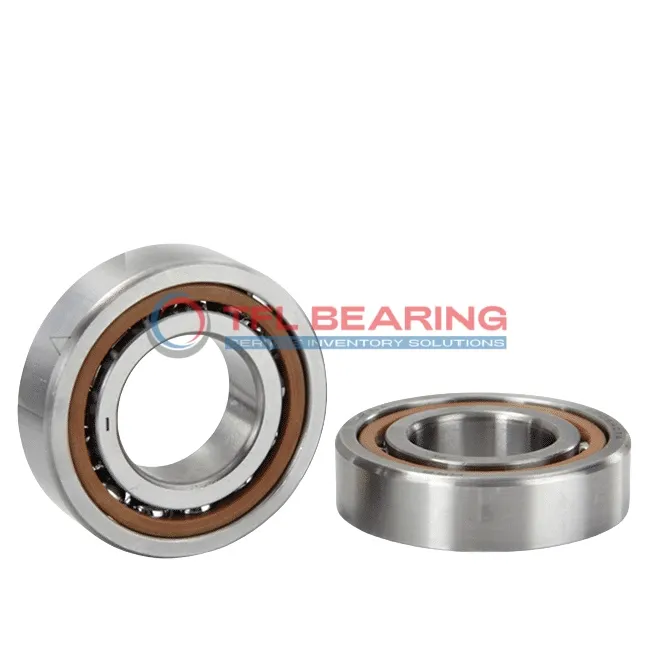

Super Precision Angular Contact Ball Bearings 7016 ACBGA/P4A

Super Precision Angular Contact Ball Bearings 7016 ACBGA/P4A

The 7016 ACBGA/P4A is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from durable chrome steel. It features a 25° contact angle and is designed for high-speed operations up to 28,000 RPM.

With a dynamic radial load capacity of 5648 lbf, this bearing handles demanding applications smoothly. Its phenolic cage ensures stability, while the open design allows for easy lubrication and maintenance.

The P4A tolerance class guarantees exceptional accuracy, making it suitable for precision machinery. It can be paired in back-to-back, face-to-face, or tandem configurations for versatile use.

Ideal for CNC spindles or high-performance industrial equipment, this bearing operates reliably between -30°C and 110°C. Weighing 0.92kg, it offers a balance of strength and precision for critical applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7016 ACBGA/P4A
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 22 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 27
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement No
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 5648 lbf
  • Static Radial Load 4860 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 28000 rpm
  • Weight 0.92 kg
Super Precision Angular Contact Ball Bearings 7016 ACBGA/P4A dimension drawing
Download DWG Download PDF

Features

Performance Features of 7016 ACBGA/P4A Bearing

7016 ACBGA/P4A Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and noise.

With a dynamic radial load capacity of 5648 lbf, it handles demanding conditions reliably.
The P4A tolerance class guarantees high precision, making it suitable for critical applications.

7016 ACBGA/P4A Bearing operates smoothly at speeds up to 28,000 rpm, balancing performance and longevity.
Its open design allows for easy lubrication, ensuring consistent operation over time.

Application

Key Fields for 7016 ACBGA/P4A Bearing
The 7016 ACBGA/P4A Bearing is commonly used in high-speed machine tools, where its precision and angular contact design ensure accurate spindle rotation. Its extra light preload makes it suitable for applications requiring minimal friction.

In robotics, 7016 ACBGA/P4A Bearing supports articulated arms, providing smooth movement and reliability. The phenolic cage material helps reduce weight while maintaining durability.

For medical imaging devices, 7016 ACBGA/P4A Bearing offers consistent performance due to its chrome steel construction. The P4A tolerance class ensures high precision in critical applications.

Automotive testing equipment often relies on 7016 ACBGA/P4A Bearing for its ability to handle dynamic radial loads. Its universal matching feature allows flexible installation in various configurations.
