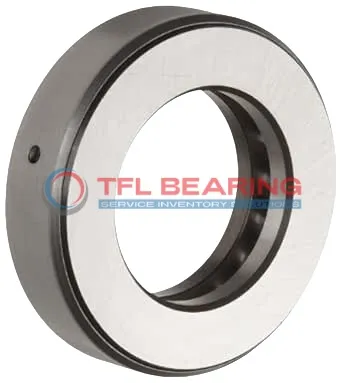

Thrust Ball Bearing With Outside Band T-100-33

Thrust Ball Bearing With Outside Band T-100-33

The T-100-33 is a thrust ball bearing with a 2.1875-inch bore and 3.1875-inch outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 5070 lbf and performs well across various speeds, from 100 to 1500 RPM.

Its outside band design ensures stability, while the 26 steel balls provide smooth operation. The bearing requires lubrication for optimal performance and works in temperatures from -30°C to 110°C.

This model is compliant with RoHS and REACH standards, making it safe for various applications. Ideal for machinery with moderate thrust loads, such as automotive or industrial equipment.

Weighing 0.35kg, it’s a durable yet manageable size for easy handling and installation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-33
  • Brand TFL
  • Bore Dia 2.187500"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 2.218750"
  • Outer Dia 3.187500"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.812500"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 5/16"
  • Ball Qty 26
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 5070 lbf
  • Dynamic Thrust Load(100 RPM) 3340 lbf
  • Dynamic Thrust Load(500 RPM) 2060 lbf
  • Dynamic Thrust Load(1500 RPM) 1480 lbf
  • Static Thrust Load 22686 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.35 kg
Thrust Ball Bearing With Outside Band T-100-33 dimension drawing
Download DWG Download PDF

Features

How Is T-100-33 Bearing Engineered for Reliability?

T-100-33 Bearing is crafted from 52100 chrome steel, offering strong resistance to wear and tear.
Its dynamic thrust load capacity reaches 5070 lbf, ensuring dependable performance under pressure.

The bearing’s precise ball alignment with 26 balls enhances smooth operation and reduces friction.
With a temperature range of -30° to 110°C, it performs reliably in varied environments.

T-100-33 Bearing’s inch-based measurements ensure compatibility with standard industrial applications.
Its lubrication requirement is straightforward, making maintenance simple and cost-effective.

Application

Industrial Uses of T-100-33 Bearing
T-100-33 Bearing is commonly used in heavy machinery like hydraulic presses and lathes, where its robust design handles axial loads efficiently. The inch sizing makes it a good fit for equipment following imperial measurements.

In automotive applications, T-100-33 Bearing works well in clutch assemblies and steering systems, providing reliable performance under thrust loads. Its chrome steel construction ensures durability even in high-stress conditions.

For automation systems, T-100-33 Bearing supports robotic arms and conveyor belts, where precise movement is essential. The required lubrication helps maintain smooth operation over extended periods.

Where Is T-100-33 Bearing Used?
You’ll often find T-100-33 Bearing in industrial fans and pumps, where its ability to handle dynamic thrust loads keeps systems running smoothly. The wide temperature range also makes it suitable for varied environments.

In household appliances like washing machines, T-100-33 Bearing helps reduce vibration and noise. Its static thrust load capacity ensures long-term reliability for everyday use.

Built for Heavy-Duty Use: T-100-33 Bearing
T-100-33 Bearing excels in construction equipment like bulldozers, where its high static thrust load capacity is crucial. The 52100 chrome steel material adds to its wear resistance.

Medical devices like centrifuges benefit from T-100-33 Bearing’s precise performance. The consistent load handling ensures accurate results in lab settings.

Automotive vs Aerospace: Applications of T-100-33 Bearing
In cars, T-100-33 Bearing is ideal for transmissions, while in aerospace, it supports auxiliary systems like landing gear mechanisms. The inch measurements cater to both industries’ standards.

For 3D printers, T-100-33 Bearing ensures smooth linear motion in high-precision printing. Its lubrication requirement is easily managed with regular maintenance.
