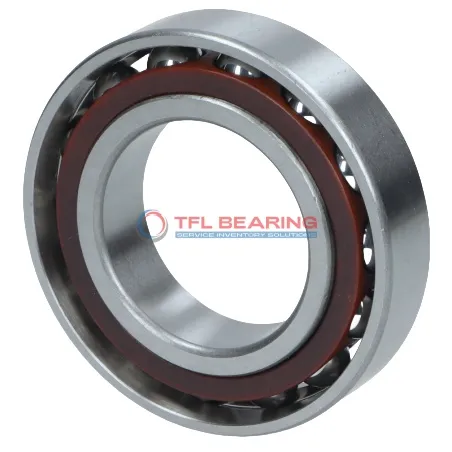

Super Precision Angular Contact Ball Bearings 7014 FEGA/HCP4AL

Super Precision Angular Contact Ball Bearings 7014 FEGA/HCP4AL

The 7014 FEGA/HCP4AL is a super precision angular contact ball bearing with a 70mm bore and 110mm outer diameter, crafted from durable chrome steel. Its 18° contact angle and ceramic balls ensure smooth operation under angular loads.

With a dynamic radial load capacity of 5265 lbf, it spins efficiently at speeds up to 28,000 RPM. The phenolic cage adds stability, while the extra-light preload (Class A) enhances precision.

This open-design bearing is lubricated for easy maintenance and works in temperatures from -30°C to 110°C. It’s interchangeable with SKF bearings and comes in a universal matching set for flexible arrangements (back-to-back, face-to-face, or tandem).

Ideal for high-speed applications like machine tool spindles or precision instruments, it weighs just 0.56kg. Compliant with P4A tolerance standards for reliable performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7014 FEGA/HCP4AL
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 20 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 25
  • Contact Angle 18°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement No
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 5265 lbf
  • Static Radial Load 4118 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 28000 rpm
  • Weight 0.56 kg
Super Precision Angular Contact Ball Bearings 7014 FEGA/HCP4AL dimension drawing
Download DWG Download PDF

Features

Performance Features of 7014 FEGA/HCP4AL Bearing

7014 FEGA/HCP4AL Bearing is crafted with chrome steel rings and ceramic balls, ensuring high precision and durability.
Its 18° contact angle provides excellent angular contact performance, ideal for complex load conditions.

The phenolic cage maintains ball alignment, reducing friction and enhancing operational smoothness.
With a dynamic radial load capacity of 5265 lbf, it handles demanding applications with ease.

7014 FEGA/HCP4AL Bearing operates at speeds up to 28,000 rpm, balancing speed and reliability.
Its P4A tolerance class ensures consistent performance in precision machinery.

The open design allows for easy lubrication, extending maintenance intervals.
This bearing is suitable for temperatures ranging from -30°C to 110°C, adapting to various environments.

Universal matching options enable flexible configurations like back-to-back or face-to-face arrangements.
This versatility makes 7014 FEGA/HCP4AL Bearing a practical choice for diverse industrial needs.

Application

Industrial Uses of 7014 FEGA/HCP4AL Bearing
7014 FEGA/HCP4AL Bearing is commonly used in high-speed machine tools, where its precision angular contact design ensures accurate performance. The ceramic balls reduce friction, making it suitable for applications demanding smooth rotation.

In automotive systems, 7014 FEGA/HCP4AL Bearing supports components like electric motors and gearboxes, where its extra light preload enhances efficiency. The metric sizing ensures compatibility with a variety of vehicle designs.

For automation and robotics, 7014 FEGA/HCP4AL Bearing’s phenolic cage provides stability in mechanical arms and 3D printers. Its high-speed capability makes it a reliable choice for dynamic movements.

Medical applications benefit from 7014 FEGA/HCP4AL Bearing’s chrome steel rings, which offer durability in imaging devices. The open seal design allows for easy maintenance in critical environments.

In consumer electronics, 7014 FEGA/HCP4AL Bearing is found in high-performance fans and printers, where its low friction and quiet operation are valued. The temperature range ensures reliability in everyday use.
