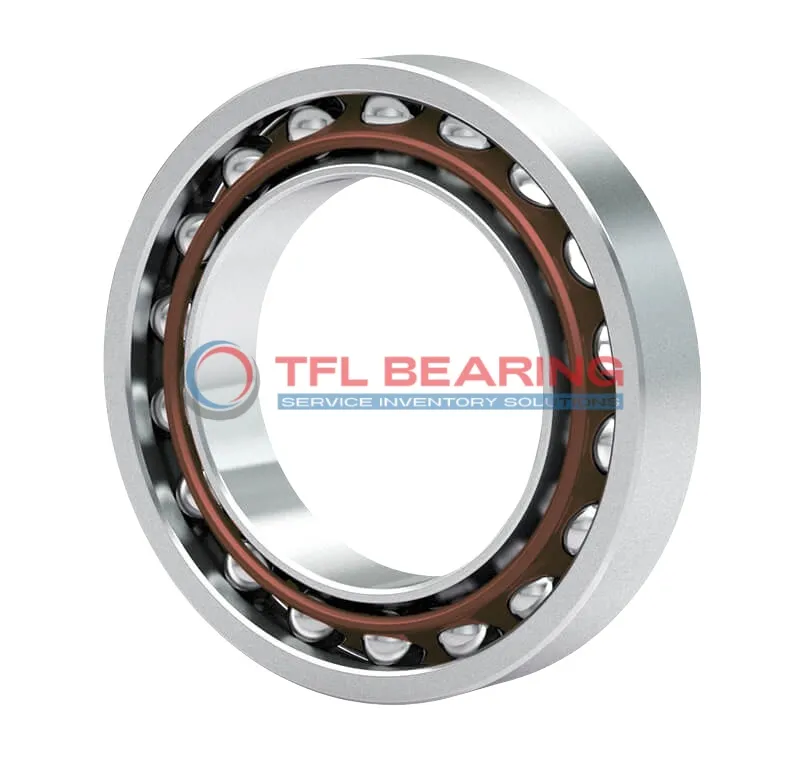

Super Precision Angular Contact Ball Bearings 7014 CEGA/P4A

Super Precision Angular Contact Ball Bearings 7014 CEGA/P4A

The 7014 CEGA/P4A is a super precision angular contact ball bearing with a 70mm bore and 110mm outer diameter, crafted from high-quality chrome steel.

Its 15° contact angle and extra-light preload ensure smooth operation under radial loads up to 5355 lbf, with speeds reaching 27,000 RPM.

The open design and phenolic cage reduce friction, making it suitable for high-precision applications. It performs reliably in temperatures from -30°C to 110°C.

This bearing is part of a matched set of four, allowing flexible arrangements like back-to-back or face-to-face. Ideal for machine tools or spindle drives where precision and speed are key.

Weighing 0.61kg, it balances durability and performance, while being interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7014 CEGA/P4A
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 20 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 25
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement No
  • Number Of Bearings In Matched Set 4
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 5355 lbf
  • Static Radial Load 4118 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 27000 rpm
  • Weight 0.61 kg
  • Price（$） 143.613
Super Precision Angular Contact Ball Bearings 7014 CEGA/P4A dimension drawing
Download DWG Download PDF

Features

Performance Features of 7014 CEGA/P4A Bearing

7014 CEGA/P4A Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability and resistance to wear.

The phenolic cage maintains ball alignment, reducing friction and enhancing performance.
With a dynamic radial load capacity of 5355 lbf, it handles demanding conditions reliably.

7014 CEGA/P4A Bearing operates smoothly at speeds up to 27,000 rpm, balancing speed and precision.
Its temperature range of -30°C to 110°C ensures consistent performance in varied environments.

The open design allows for easy lubrication, extending service life.
Its P4A tolerance class guarantees high precision for critical applications.

7014 CEGA/P4A Bearing is part of a universal matching set, offering flexibility in arrangement.
This makes it suitable for complex setups like back-to-back or face-to-face configurations.

Application

Essential Roles of 7014 CEGA/P4A Bearing
In high-speed machine tools, 7014 CEGA/P4A Bearing excels due to its precision angular contact design, ensuring smooth rotation under radial and axial loads. The phenolic cage reduces friction, making it ideal for continuous operation.

Where Is 7014 CEGA/P4A Bearing Used?
You’ll often find 7014 CEGA/P4A Bearing in automotive transmissions, where its 15° contact angle handles combined loads efficiently. Its P4A tolerance class guarantees consistent performance in demanding conditions.

Built for Heavy-Duty Use: 7014 CEGA/P4A Bearing
This bearing supports robotic arms in automation, thanks to its chrome steel construction and extra-light preload. The open design allows for easy lubrication, extending service life in industrial settings.

Medical vs Industrial: Where 7014 CEGA/P4A Bearing Excels
In medical imaging devices, 7014 CEGA/P4A Bearing’s low vibration ensures quiet operation, while its industrial use in pumps benefits from high-speed capabilities up to 27,000 rpm.
