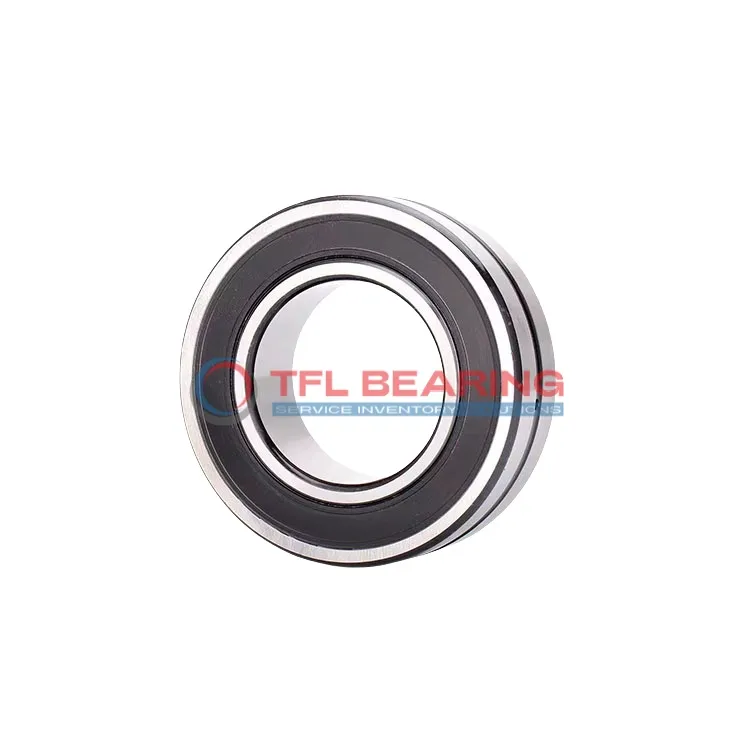

Self Aligning Ball Bearings 2204 E-2RS1TN9/W64

Self Aligning Ball Bearings 2204 E-2RS1TN9/W64

The 2204 E-2RS1TN9/W64 is a self-aligning ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. Its double-row design and sealed construction help it handle radial loads up to 2858 lbf while spinning smoothly at 10,000 RPM.

The nylon cage reduces friction, and the built-in lubrication ensures quiet operation. It works well in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for applications like conveyor systems or electric motors where misalignment might occur.

Weighing just 0.14kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2204 E-2RS1TN9/W64
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 18 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 25.9 mm
  • Internal Diameter On Outer Ring 41.23 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 2858 lbf
  • Static Radial Load 765 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 10000 rpm
  • Weight 0.14 kg
Self Aligning Ball Bearings 2204 E-2RS1TN9/W64 dimension drawing
Download DWG Download PDF

Features

How Does 2204 E-2RS1TN9/W64 Bearing Reduce Friction?

2204 E-2RS1TN9/W64 Bearing features a double-row design with chrome steel balls, ensuring smooth radial load distribution.
Its nylon cage minimises friction, enhancing operational efficiency and reducing energy consumption.

The sealed construction keeps contaminants out, maintaining consistent performance over time.
With a maximum speed of 10,000 rpm, it delivers reliable operation in various applications.

Pre-lubricated for convenience, 2204 E-2RS1TN9/W64 Bearing requires minimal maintenance.
Its chrome steel rings provide durability, making it suitable for long-term use.

Application

Industrial Uses of 2204 E-2RS1TN9/W64 Bearing
2204 E-2RS1TN9/W64 Bearing is commonly used in conveyor systems, where its self-aligning feature helps compensate for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

In automotive applications, 2204 E-2RS1TN9/W64 Bearing fits well in electric motors and pumps, thanks to its radial load capacity. The nylon cage reduces noise, making it suitable for quieter vehicle components.

For automation equipment, 2204 E-2RS1TN9/W64 Bearing’s double-row construction provides stability in robotic arms. Its lubricated design ensures smooth movement even during continuous operation.

In household appliances like washing machines, 2204 E-2RS1TN9/W64 Bearing handles unbalanced loads with ease. The chrome steel rings offer durability against daily wear and tear.
