Single Row Deep Groove Ball Bearings 6001-2Z/WT

Single Row Deep Groove Ball Bearings 6001-2Z/WT

The 6001-2Z/WT is a compact single-row deep groove ball bearing with a 12mm bore and 28mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 1147 lbf and spins smoothly at speeds up to 27,000 RPM.

Its shielded design keeps dust out while maintaining smooth operation, and the chrome steel cage adds durability. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like small motors or power tools where radial loads are common.

Weighing just 22g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6001-2Z/WT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1147 lbf
  • Static Radial Load 54 lbf
  • Max Speed 27000 rpm
  • Weight 22 g

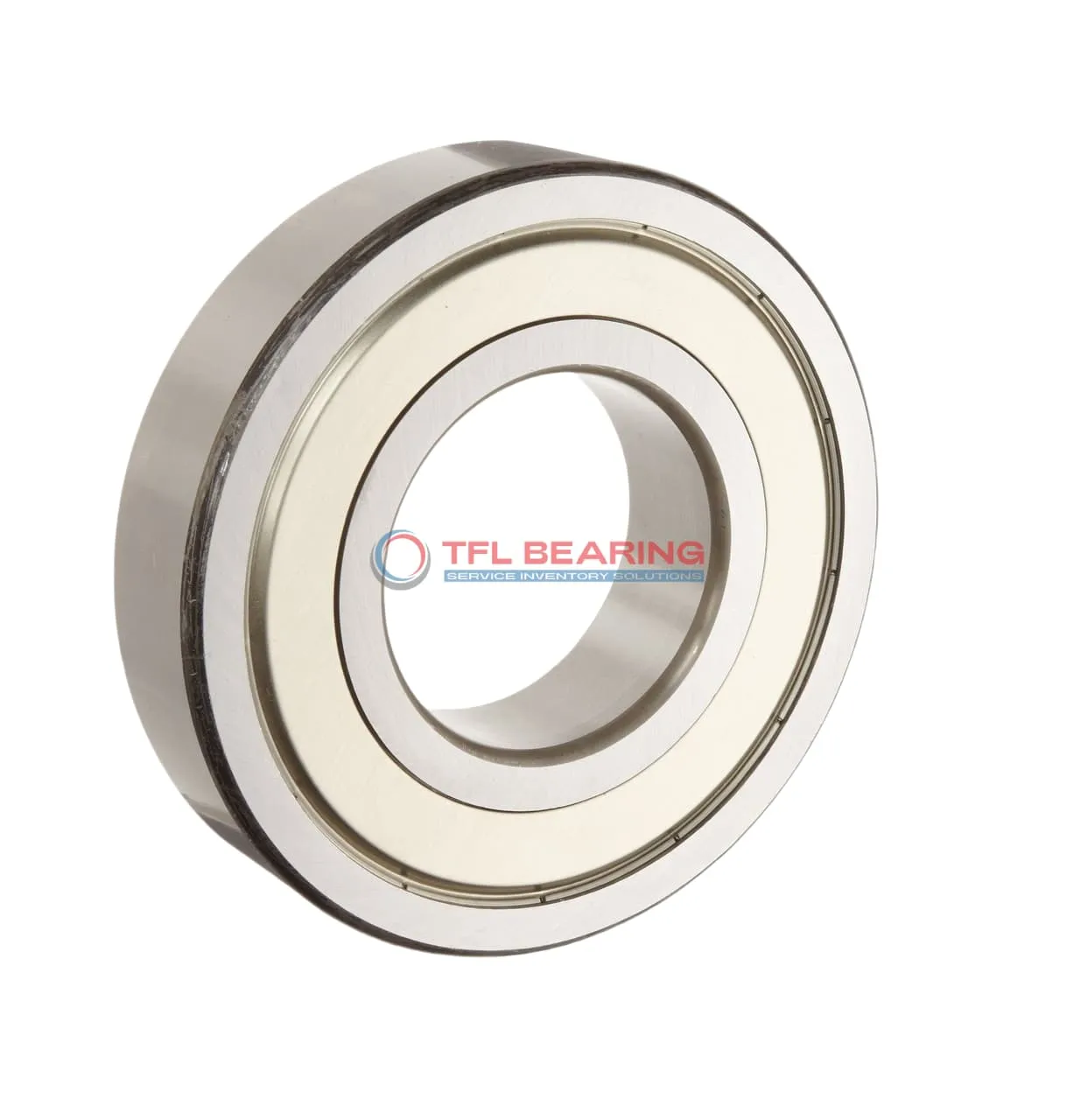

Single Row Deep Groove Ball Bearings 6001-2Z/WT dimension drawing
Download DWG Download PDF

Features

Performance Features of 6001-2Z/WT Bearing

6001-2Z/WT Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 1147 lbf.
Its shielded design protects against contaminants while maintaining smooth operation.

The single-row deep groove construction ensures reliable performance in various applications.
With a maximum speed of 27,000 rpm, it delivers efficient and consistent operation.

6001-2Z/WT Bearing operates in temperatures from -30°C to 120°C, suitable for diverse environments.
Its ABEC 1 tolerance class provides dependable precision for everyday use.

Application

Industrial Uses of 6001-2Z/WT Bearing
6001-2Z/WT Bearing is commonly used in small electric motors, thanks to its shielded design that keeps dust and debris out. Its compact size and radial load capacity make it ideal for tight spaces in machinery.

Where Is 6001-2Z/WT Bearing Used?
You’ll often find 6001-2Z/WT Bearing in household appliances like washing machines and fans, where smooth operation is key. The chrome steel construction ensures long-lasting performance even with daily use.

Optimized for Performance: 6001-2Z/WT Bearing
6001-2Z/WT Bearing works well in conveyor systems, handling moderate radial loads with ease. Its ABEC 1 tolerance ensures reliable performance without unnecessary complexity.

Automotive vs Aerospace: Applications of 6001-2Z/WT Bearing
In cars, 6001-2Z/WT Bearing fits well in alternators and small gearboxes, offering quiet operation. For lighter aerospace applications, its weight and precision are advantageous.

Perfect Fit for Automation: 6001-2Z/WT Bearing
6001-2Z/WT Bearing is a go-to choice for robotic arms and small automation systems. The shielded seals help maintain performance in environments with minimal maintenance.
