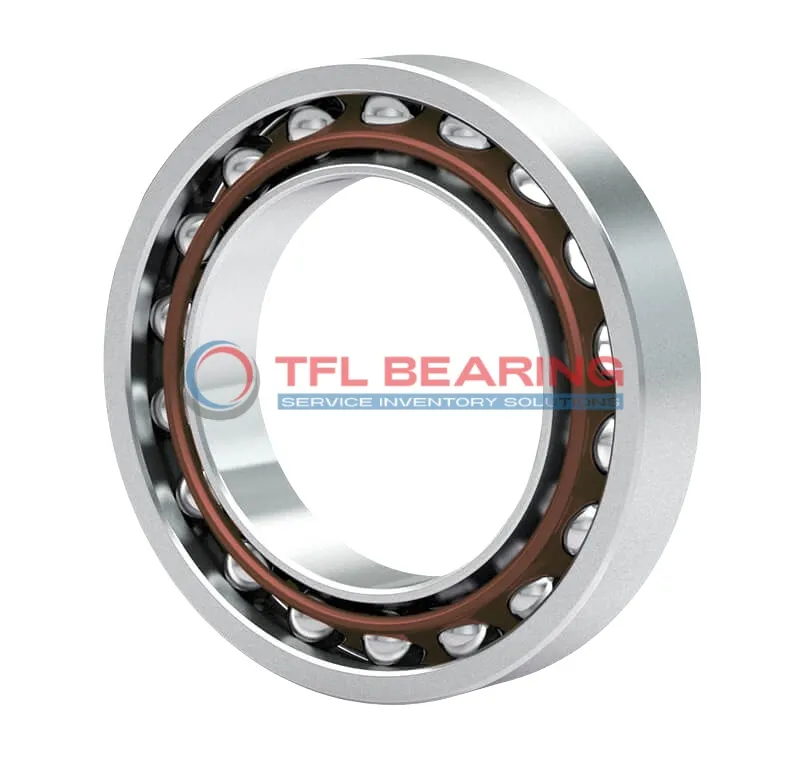

Super Precision Angular Contact Ball Bearings 7014 CE/P4ADGA

Super Precision Angular Contact Ball Bearings 7014 CE/P4ADGA

The 7014 CE/P4ADGA is a super precision angular contact ball bearing with a 70mm bore and 110mm outer diameter, crafted from durable chrome steel. It features a 15° contact angle and comes in a matched set of two for flexible mounting options.

This bearing handles radial loads up to 8775 lbf and can spin at impressive speeds up to 22000 RPM. Its phenolic cage ensures smooth operation while the open design allows for easy lubrication.

The universal matching design allows for back-to-back, face-to-face, or tandem arrangements, offering versatility in installation. With a P4A tolerance class, it delivers high precision performance.

Ideal for precision machinery like spindles or high-speed applications where accuracy is crucial. It operates reliably in temperatures from -30°C to 110°C, making it suitable for various industrial environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7014 CE/P4ADGA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 40 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 25
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement Universal matching
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 8775 lbf
  • Static Radial Load 8212 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 22000 rpm
  • Weight 1.22 kg
  • Price（$） 312.327
Super Precision Angular Contact Ball Bearings 7014 CE/P4ADGA dimension drawing
Download DWG Download PDF

Features

Performance Features of 7014 CE/P4ADGA Bearing

7014 CE/P4ADGA Bearing is built with a 15° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the phenolic cage ensures smooth operation at high speeds.

With a dynamic radial load capacity of 8775 lbf, it delivers reliable performance in precision applications.
The universal matching design allows flexible arrangements like back-to-back or face-to-face configurations.

7014 CE/P4ADGA Bearing operates smoothly at speeds up to 22,000 rpm, thanks to its extra light preload.
The tight tolerances (P4A class) ensure consistent performance in demanding conditions.

Its open design simplifies lubrication, reducing maintenance needs over time.
The temperature range of -30°C to 110°C makes it suitable for various industrial environments.

Application

Key Fields for 7014 CE/P4ADGA Bearing
In machine tools, 7014 CE/P4ADGA Bearing excels with its high-speed capability and precision, ideal for spindle applications where accuracy is key. The 15° contact angle ensures smooth operation under combined loads.

What Makes 7014 CE/P4ADGA Bearing a Preferred Choice?
For automotive transmissions, 7014 CE/P4ADGA Bearing offers reliable performance, handling both radial and axial forces efficiently. Its universal matching design simplifies installation in various configurations.

Built for Heavy-Duty Use: 7014 CE/P4ADGA Bearing
In robotics, 7014 CE/P4ADGA Bearing supports articulated arms, providing stability and low friction. The phenolic cage reduces weight while maintaining durability.

Medical vs Industrial: Where 7014 CE/P4ADGA Bearing Excels
In medical imaging devices, 7014 CE/P4ADGA Bearing ensures quiet and precise movement. Industrial pumps benefit from its high dynamic load capacity and temperature resistance.
