Thrust Ball Bearing With Outside Band T-100-27

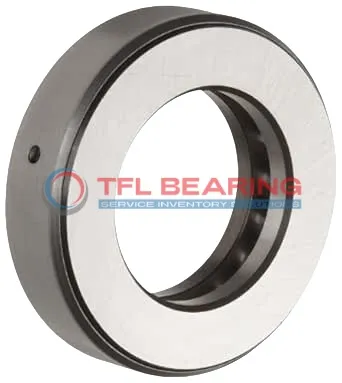

Thrust Ball Bearing With Outside Band T-100-27

The T-100-27 is a thrust ball bearing measuring 1.875″ in bore diameter and 2.75″ in outer diameter, with a compact width of 0.8125″. Made from durable 52100 chrome steel, it handles thrust loads up to 4910 lbf.

Its performance varies with speed, offering 3235 lbf at 100 RPM and 1430 lbf at 1500 RPM. The bearing requires lubrication for smooth operation and works in temperatures from -30°C to 110°C.

With 23 balls of 5/16″ diameter, it provides stable load distribution. The outside band design helps keep components securely in place.

Weighing 0.25kg, this bearing is suitable for industrial equipment where space is limited but high thrust capacity is needed. It meets RoHS and REACH standards for environmental compliance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-27
  • Brand TFL
  • Bore Dia 1.875000"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.906250"
  • Outer Dia 2.75"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.812500"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 5/16"
  • Ball Qty 23
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 4910 lbf
  • Dynamic Thrust Load(100 RPM) 3235 lbf
  • Dynamic Thrust Load(500 RPM) 1995 lbf
  • Dynamic Thrust Load(1500 RPM) 1430 lbf
  • Static Thrust Load 20068 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.25 kg

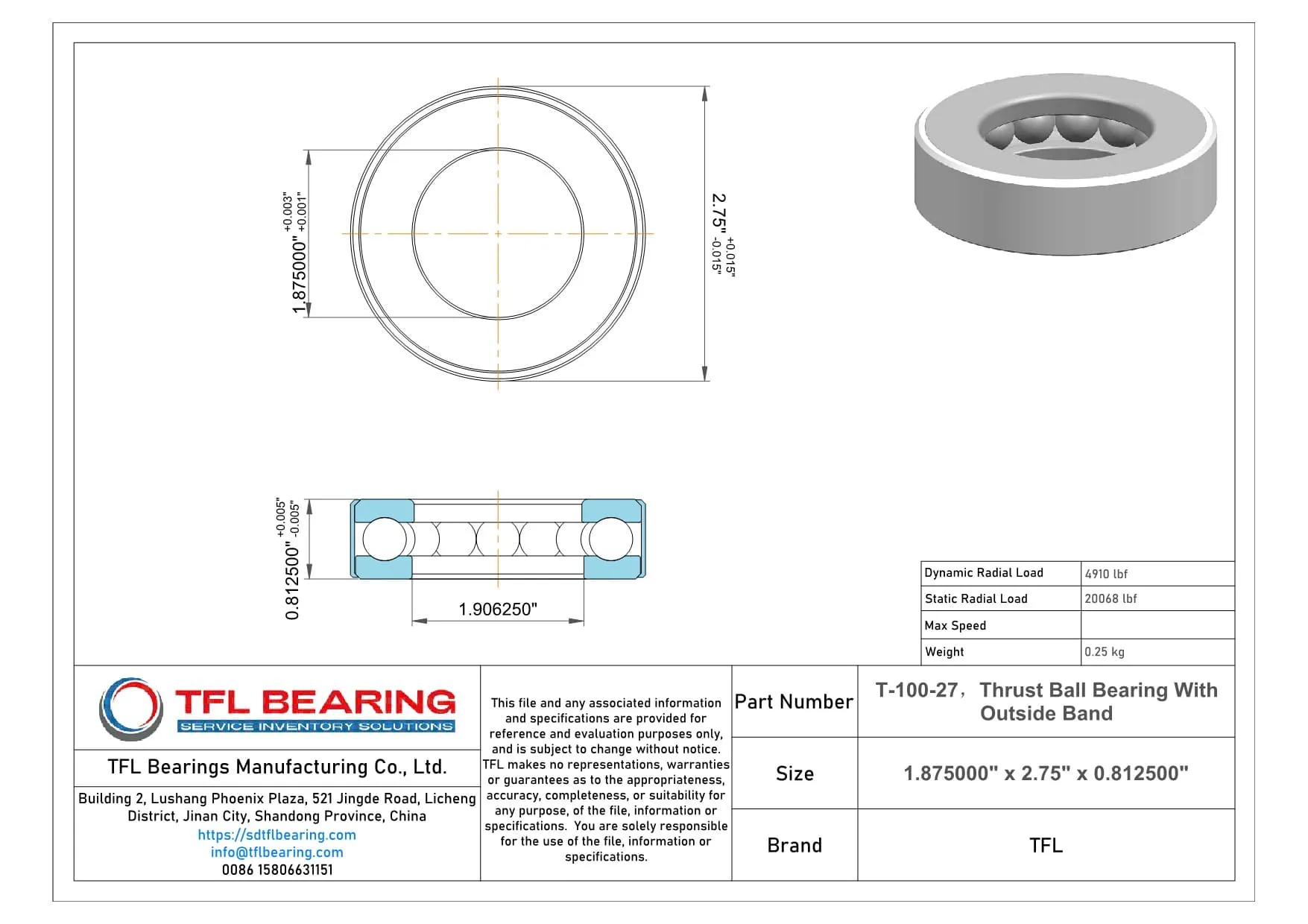

Thrust Ball Bearing With Outside Band T-100-27 dimension drawing
Download DWG Download PDF

Features

Why Choose T-100-27 Bearing for Precision Tasks?

T-100-27 Bearing is crafted from 52100 chrome steel, offering excellent resistance to wear and high load capacity.
Its static thrust load reaches 20068 lbf, making it suitable for demanding industrial applications.

The bearing’s precise dimensions (1.875″×2.75″×0.8125″) ensure a perfect fit in machinery requiring inch measurements.
With 23 balls of 5/16″ diameter, it provides smooth operation under various speed conditions.

T-100-27 Bearing operates efficiently within a temperature range of -30° to 110°C, adapting to diverse environments.
Regular lubrication ensures prolonged performance, reducing maintenance frequency.

Application

Industrial Uses of T-100-27 Bearing
T-100-27 Bearing is commonly used in heavy machinery, such as hydraulic pumps and gearboxes, where its thrust load capacity ensures reliable performance. The inch sizing makes it a good fit for equipment designed to imperial measurements.

Where Is T-100-27 Bearing Used?
In automotive applications, T-100-27 Bearing handles thrust loads in components like steering systems and transmissions. Its chrome steel construction provides durability under high stress and frequent use.

Built for Heavy-Duty Use: T-100-27 Bearing
This bearing works well in industrial fans and compressors, where its robust design manages axial loads efficiently. The lubrication requirement ensures smooth operation over extended periods.

Automotive vs Aerospace: Applications of T-100-27 Bearing
In automotive settings, T-100-27 Bearing supports drivetrain components, while in aerospace, it’s suited for auxiliary systems due to its precise load handling. The temperature range allows for use in varied environments.

Perfect Fit for Automation: T-100-27 Bearing
T-100-27 Bearing is ideal for automated machinery, such as conveyor belts and robotic arms, where consistent thrust load management is key. Its stainless steel balls reduce wear in high-speed operations.
