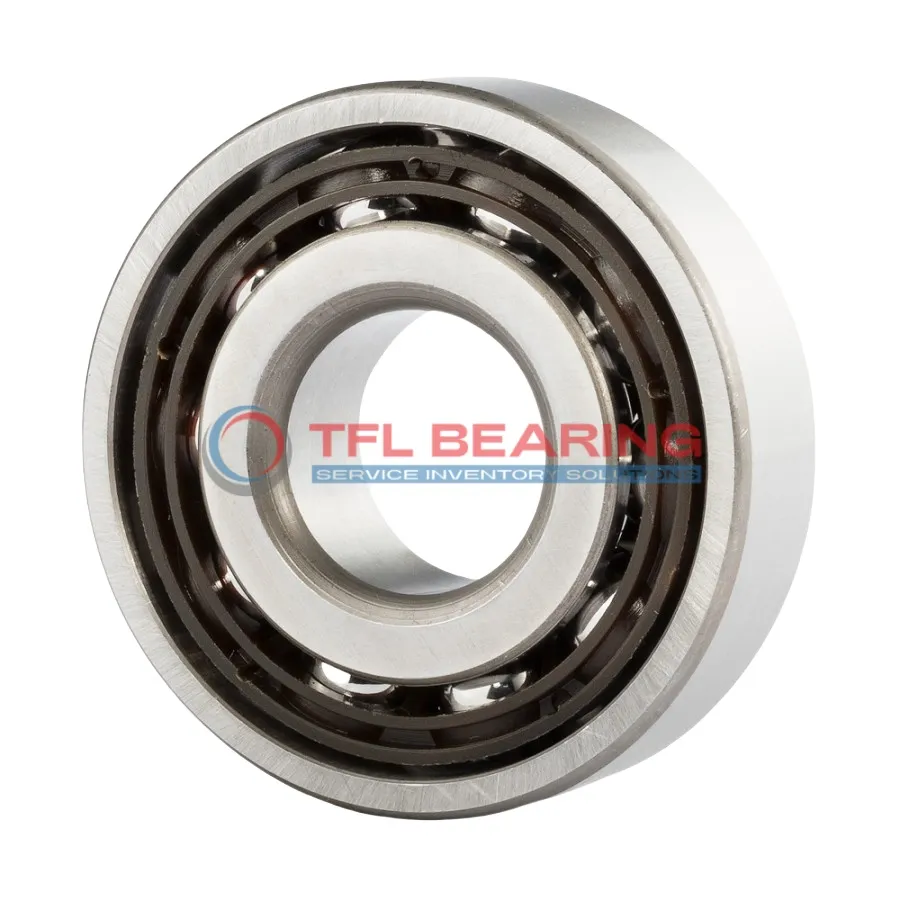

Super Precision Angular Contact Ball Bearings 7013 CE/P4A

Super Precision Angular Contact Ball Bearings 7013 CE/P4A

The 7013 CE/P4A is a super precision angular contact ball bearing with a 65mm bore and 100mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 4568 lbf and operates smoothly at speeds up to 30,000 RPM.

With a 15° contact angle and phenolic cage, it offers excellent stability and low friction. The open design allows for easy lubrication, ensuring long service life.

This bearing is ideal for high-speed applications like machine tool spindles or precision equipment. Its P4 tolerance class ensures reliable performance in demanding conditions.

Weighing 0.43kg, it’s a robust yet lightweight choice for industrial use. Compliant with standard temperature ranges from -30°C to 110°C.

Interchangeable with SKF bearings, it’s a practical option for replacements or upgrades. Suitable for scenarios where precision and speed are key.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7013 CE/P4A
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 18 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 8.731 mm
  • Ball Qty 25
  • Contact Angle 15°
  • Tolerance Class P4 (ABEC-7)
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement No
  • Preload Available
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 4568 lbf
  • Static Radial Load 3510 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Max Speed 30000 rpm
  • Weight 0.43 kg
  • Price（$） 428.751
Super Precision Angular Contact Ball Bearings 7013 CE/P4A dimension drawing
Download DWG Download PDF

Features

Performance Features of 7013 CE/P4A Bearing

7013 CE/P4A Bearing is crafted with chrome steel rings and balls, offering excellent durability for precision applications.
Its 15° contact angle ensures efficient handling of combined radial and axial loads.

The phenolic cage maintains ball alignment, reducing friction and enhancing performance.
With a dynamic radial load capacity of 4568 lbf, it delivers reliable operation under stress.

7013 CE/P4A Bearing supports speeds up to 30,000 rpm, making it suitable for high-speed machinery.
Its P4 tolerance class ensures precision and consistency in demanding environments.

The open design allows for easy lubrication, extending the bearing’s service life.
7013 CE/P4A Bearing operates smoothly within a temperature range of -30° to 110°C.

Application

Common Applications of 7013 CE/P4A Bearing
In machine tools, 7013 CE/P4A Bearing handles high-speed spindle rotations with its precision angular contact design. The phenolic cage reduces friction, making it suitable for continuous operation.

Where Is 7013 CE/P4A Bearing Used?
You’ll often find 7013 CE/P4A Bearing in automotive transmissions, where its 15° contact angle manages combined radial and thrust loads effectively. The P4 tolerance ensures smooth gear shifts.

Built for Heavy-Duty Use: 7013 CE/P4A Bearing
This bearing excels in robotics, supporting articulated arms with its high dynamic load capacity. Its chrome steel construction offers durability in repetitive motion applications.

Automotive vs Aerospace: Applications of 7013 CE/P4A Bearing
In cars, 7013 CE/P4A Bearing aids wheel hubs, while in aircraft, it’s used in auxiliary power units. The metric sizing fits both industries’ standard components seamlessly.

Perfect Fit for Automation: 7013 CE/P4A Bearing
For CNC machines, 7013 CE/P4A Bearing ensures accurate positioning thanks to its ABEC-7 precision. The open design allows easy relubrication in dusty workshop environments.
