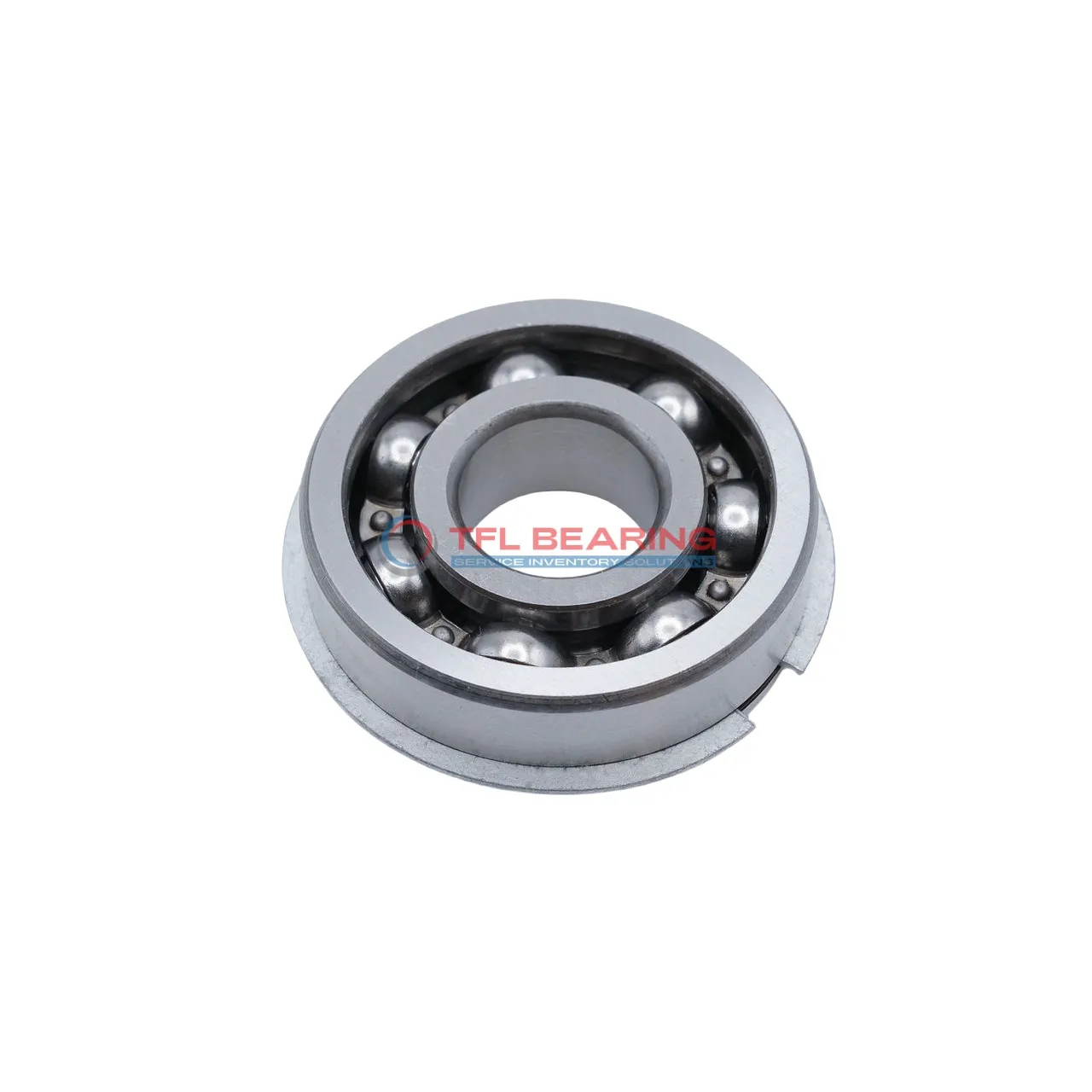

Snap Ring Groove Ball Bearings 212 NR/VK504

Snap Ring Groove Ball Bearings 212 NR/VK504

The 212 NR/VK504 is a snap ring groove ball bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 12612 lbf and operates smoothly at speeds up to 6700 RPM.

Its open design and snap ring feature on the outer ring ensure easy installation and secure positioning. The chrome steel cage adds durability, making it suitable for long-term use.

This bearing performs well in temperatures ranging from -30°C to 120°C. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for machinery requiring secure mounting, such as pumps or conveyors. Weighing 0.85kg, it balances strength and practicality for industrial applications. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 212 NR/VK504
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 22 mm
  • Width Tolerance -0.15mm to 0
  • Outside Diameter Of Snap Ring 116.6 mm
  • Width Of Snap Ring 2.46 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 12612 lbf
  • Static Radial Load 11240 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 6700 rpm
  • Weight 0.85 kg
Snap Ring Groove Ball Bearings 212 NR/VK504 dimension drawing
Download DWG Download PDF

Features

Performance Features of 212 NR/VK504 Bearing

212 NR/VK504 Bearing features a snap ring groove on the outer ring, ensuring secure mounting in housing applications.
Its chrome steel construction provides durability and resistance to wear under radial loads.

The dynamic radial load capacity of 12612 lbf makes it suitable for heavy-duty operations.
With a maximum speed of 6,700 rpm, it balances performance and longevity.

Designed for radial loads, 212 NR/VK504 Bearing operates efficiently in temperatures from -30° to 120°C.
The open seal type allows for easy lubrication and maintenance.

The ABEC 1 tolerance class ensures reliable precision in various applications.
Its snap ring feature simplifies installation while maintaining stability during operation.

Application

Industrial Uses of 212 NR/VK504 Bearing
The 212 NR/VK504 Bearing is commonly used in industrial machinery, such as conveyor systems and gearboxes, where its snap ring design ensures secure mounting. Its open construction allows for easy lubrication, making it suitable for high-load environments.

In automotive applications, 212 NR/VK504 Bearing fits well in wheel hubs and transmissions, providing reliable radial load support. The chrome steel material ensures durability even under constant stress and varying temperatures.

For automation equipment, 212 NR/VK504 Bearing’s precision design helps maintain smooth operation in robotic arms and assembly lines. The snap ring feature adds stability, reducing the risk of misalignment during high-speed movements.

Where Is 212 NR/VK504 Bearing Used?
You’ll often find 212 NR/VK504 Bearing in electric motors and pumps, where its radial load capacity and snap ring groove enhance performance. The ABEC 1 tolerance ensures consistent operation without excessive maintenance.

In household appliances like washing machines, 212 NR/VK504 Bearing offers quiet and efficient rotation. Its chrome steel construction resists wear, making it a dependable choice for long-term use.
