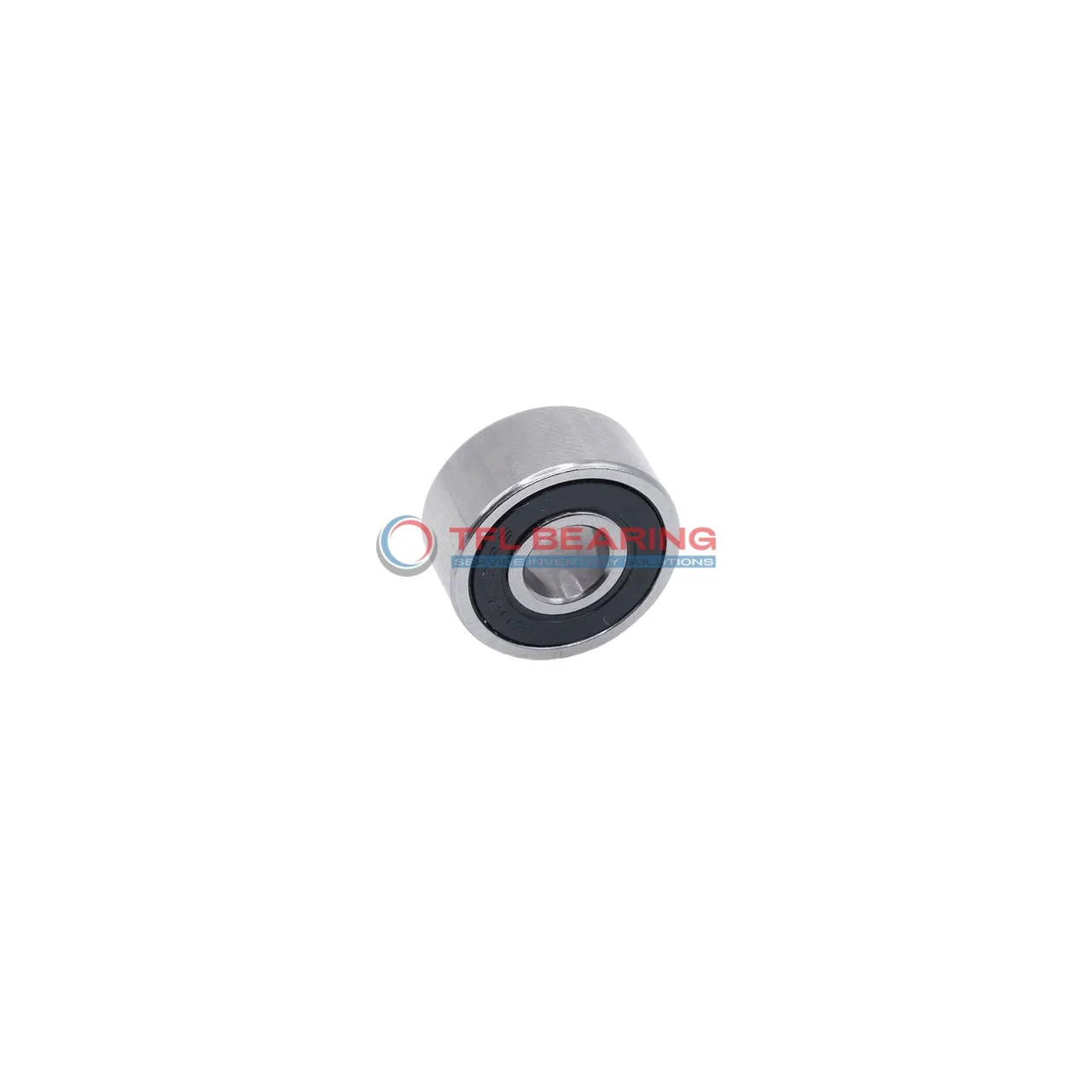

Stainless Steel Deep Groove Ball Bearings W 604-2RS1

Stainless Steel Deep Groove Ball Bearings W 604-2RS1

The W 604-2RS1 is a compact stainless steel deep groove ball bearing, measuring just 4mm by 12mm by 4mm. It handles radial loads up to 121 lbf and spins smoothly at speeds up to 36,000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The all-stainless steel construction ensures corrosion resistance and durability.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Ideal for small machinery or appliances where space is limited. Compliant with RoHS and REACH standards, it’s a safe and practical choice. Weighing only 0.0021kg, it’s lightweight yet sturdy.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 604-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 4 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 12 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 4 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 121 lbf
  • Static Radial Load 40 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 36000 rpm
  • Weight 0.0021 kg
Stainless Steel Deep Groove Ball Bearings W 604-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose W 604-2RS1 Bearing for Precision Tasks?

W 604-2RS1 Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its compact size of 4 mm×12 mm×4 mm makes it ideal for applications where space is limited.

The sealed design ensures that grease lubrication stays in place, reducing maintenance needs.
With a maximum speed of 36,000 rpm, it delivers smooth and efficient performance.

W 604-2RS1 Bearing handles dynamic radial loads up to 121 lbf, suitable for various precision tasks.
Its stainless steel cage and balls enhance durability, ensuring long-term reliability.

Application

Industrial Uses of W 604-2RS1 Bearing
W 604-2RS1 Bearing is commonly used in small industrial equipment like electric motors and pumps, where its compact size and sealed design help keep out dust and moisture. The stainless steel construction ensures it performs well in environments where corrosion resistance is needed.

What Makes W 604-2RS1 Bearing a Preferred Choice?
In automotive applications, W 604-2RS1 Bearing fits well in components like window regulators and small gearboxes, thanks to its reliable radial load capacity. The grease lubrication ensures smooth operation over long periods without frequent maintenance.

Perfect Fit for Automation: W 604-2RS1 Bearing
For automation systems, W 604-2RS1 Bearing works efficiently in robotic arms and precision tools, where its low friction and high-speed capability are beneficial. The sealed design also reduces the need for constant re-lubrication.

Medical vs Industrial: Where W 604-2RS1 Bearing Excels
In medical devices like dental tools or lab equipment, W 604-2RS1 Bearing offers quiet and smooth performance, essential for precision tasks. Its stainless steel build also meets hygiene standards better than standard bearings.

Where Is W 604-2RS1 Bearing Used?
You’ll often find W 604-2RS1 Bearing in household appliances like small fans or printers, where its durability and low noise make it a practical choice. The metric sizing ensures easy replacement in most consumer products.
