Super Precision Angular Contact Ball Bearings 7013 ACD/P4ATBTB

Brand: TFL Bearing Interchangeable: SKF 7013 ACD/P4ATBTB 65 mm × 100 mm × 54 mm Metric Open
Part number: 7013 ACD/P4ATBTB
Super Precision Angular Contact Ball Bearings 7013 ACD/P4ATBTB
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia65 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia100 mm
Outer Dia Tolerance-0.004mm to 0
Width54 mm
Width Tolerance-0.2mm to 0
Ball Dia11.112 mm
Performance
PreloadLight / Class B
Dynamic Radial Load19,170 lbf
Static Radial Load23,850 lbf
Temperature Range- 30°C to 110 °C
Max Speed31,000 rpm
Characteristics
Ball Qty20
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement3 bearings <>> TBT
Number Of Bearings In Matched Set3
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight1.29 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic

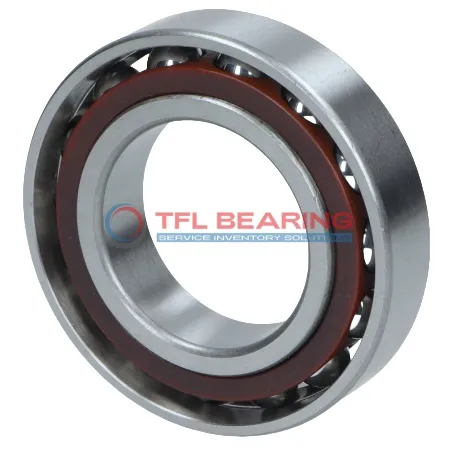

Dimension drawing · click to enlarge

Description

The 7013 ACD/P4ATBTB is a super precision angular contact ball bearing with a 65mm bore and 100mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 19170 lbf and operates smoothly at speeds up to 31000 RPM.

With a 25° contact angle and open design, it offers excellent performance in high-speed applications. The phenolic cage ensures durability and reduces friction, while the light preload (Class B) enhances stability.

This bearing comes in a matched set of three (TBT arrangement), ideal for precision machinery like spindles or CNC equipment. It works well in temperatures from -30°C to 110°C and is interchangeable with SKF models.

Weighing 1.29kg, it’s robust yet manageable for its size. Compliant with P4A tolerance standards, it’s a reliable choice for demanding industrial uses.

Features

Performance Features of 7013 ACD/P4ATBTB Bearing

7013 ACD/P4ATBTB Bearing is designed with a 25° contact angle, optimising load distribution for precision applications.
Its chrome steel rings and balls enhance durability while maintaining smooth operation under high radial loads.

The phenolic cage ensures stability at high speeds, supporting a maximum of 31,000 rpm.
With a dynamic radial load capacity of 19,170 lbf, it handles demanding conditions reliably.

Three matched bearings in a TBT arrangement provide balanced performance for complex setups.
The light preload (Class B) reduces vibration, making it suitable for precision machinery.

Operating between -30°C to 110°C, 7013 ACD/P4ATBTB Bearing adapts to various environments.
Its open design simplifies lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 7013 ACD/P4ATBTB Bearing
This bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched set of three bearings provides excellent stability under radial and axial loads.

In automotive applications, 7013 ACD/P4ATBTB Bearing supports high-speed components like turbochargers and transmission systems. Its phenolic cage offers durability and reduces friction in demanding conditions.

For medical imaging devices, 7013 ACD/P4ATBTB Bearing’s P4A tolerance class guarantees smooth, quiet operation essential for diagnostic accuracy. The chrome steel construction also ensures long service life in sterile environments.

Automation systems benefit from 7013 ACD/P4ATBTB Bearing’s light preload, which enhances precision in robotic arms and CNC machinery. The open design allows for easy lubrication, maintaining performance over time.
