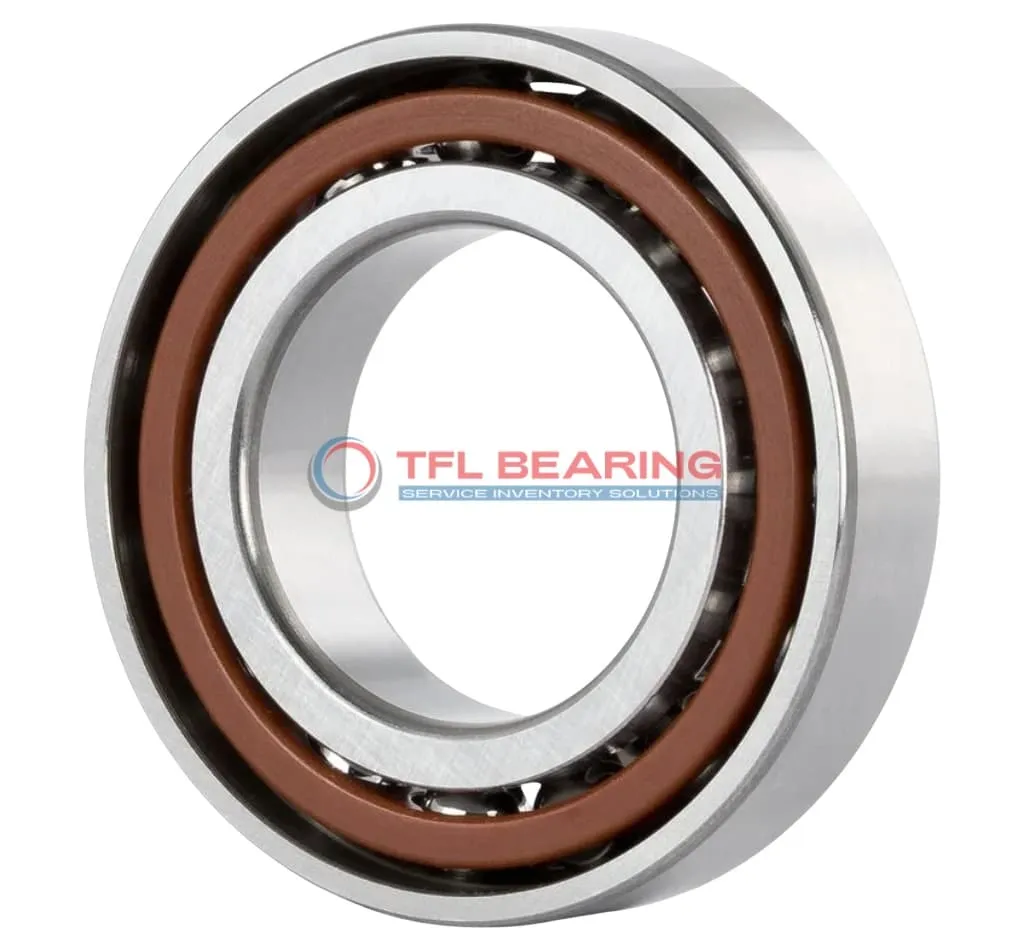

Super Precision Angular Contact Ball Bearings 7006 FE/HCP4ADT

Super Precision Angular Contact Ball Bearings 7006 FE/HCP4ADT

The 7006 FE/HCP4ADT is a super precision angular contact ball bearing with a 30mm bore and 55mm outer diameter, crafted from chrome steel for durability. It features a 18° contact angle and comes in a matched set of two bearings for balanced performance.

This bearing handles radial loads up to 3398 lbf and can spin at impressive speeds up to 100,500 RPM, thanks to its ceramic balls and phenolic cage. Its open design allows for easy lubrication and maintenance.

The P4A tolerance class ensures high precision, making it suitable for demanding applications. Ideal for use in machine tools or high-speed spindles where accuracy and speed are crucial.

Weighing just 0.21kg, it’s lightweight yet robust. It operates smoothly in temperatures from -30°C to 110°C, offering reliable performance in various conditions.

This model is interchangeable with SKF bearings, providing a dependable replacement option. Its preload availability enhances stability in precision setups.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7006 FE/HCP4ADT
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 26 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 6.35 mm
  • Ball Qty 17
  • Contact Angle 18°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement 2 bearings << DT
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing No
  • Preload Available
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 3398 lbf
  • Static Radial Load 2340 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 100500 rpm
  • Weight 0.21 kg
Super Precision Angular Contact Ball Bearings 7006 FE/HCP4ADT dimension drawing
Download DWG Download PDF

Features

Performance Features of 7006 FE/HCP4ADT Bearing

7006 FE/HCP4ADT Bearing is designed with a 18° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and ceramic balls enhance durability and reduce friction during high-speed operation.

The phenolic cage ensures smooth performance, even at speeds up to 100,500 rpm.
This bearing is preloaded and comes in a matched set of two, providing consistent precision.

With a dynamic radial load capacity of 3398 lbf, it handles demanding tasks reliably.
The P4A tolerance class guarantees high accuracy for precision machinery.

Its open design allows for easy lubrication, maintaining performance over time.
The temperature range of -30°C to 110°C ensures versatility in various environments.

Application

Common Applications of 7006 FE/HCP4ADT Bearing
7006 FE/HCP4ADT Bearing is widely used in machine tools, where its precision and angular contact design ensure accurate spindle rotation. The ceramic balls reduce friction, making it suitable for high-speed operations.

In robotics, 7006 FE/HCP4ADT Bearing provides smooth movement for articulated arms, thanks to its phenolic cage and matched arrangement. The P4A tolerance class guarantees consistent performance in repetitive tasks.

For aerospace applications, 7006 FE/HCP4ADT Bearing handles both radial and axial loads in components like gyroscopes. Its lubricated design and temperature range make it reliable in varying conditions.

Where Is 7006 FE/HCP4ADT Bearing Used?
You’ll often find 7006 FE/HCP4ADT Bearing in dental drills, where its high-speed capability and precision are essential. The open seal allows for easy maintenance in medical settings.

In electric motors, 7006 FE/HCP4ADT Bearing supports smooth rotation with minimal noise. The ceramic balls and chrome steel rings ensure long-lasting performance in demanding environments.

Built for Heavy-Duty Use: 7006 FE/HCP4ADT Bearing
7006 FE/HCP4ADT Bearing excels in conveyor systems, handling heavy loads with its robust construction. The matched bearing arrangement provides stability in continuous operation.

For 3D printers, 7006 FE/HCP4ADT Bearing ensures precise linear motion. Its low friction and high-speed rating make it ideal for detailed printing tasks.

Automotive vs Aerospace: Applications of 7006 FE/HCP4ADT Bearing
In automotive transmissions, 7006 FE/HCP4ADT Bearing manages angular loads efficiently. The phenolic cage reduces wear, extending the bearing’s lifespan.

For aerospace actuators, 7006 FE/HCP4ADT Bearing offers reliability under extreme conditions. Its ceramic balls and precision tolerances meet stringent industry standards.
