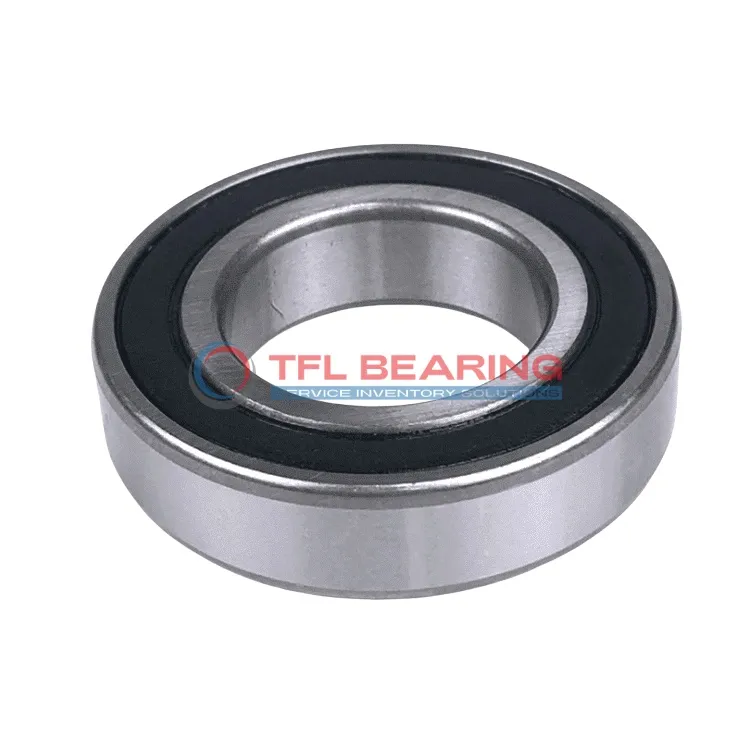

Single Row Deep Groove Ball Bearings 6004-2RSL/LHT23

Single Row Deep Groove Ball Bearings 6004-2RSL/LHT23

The 6004-2RSL/LHT23 is a single-row deep groove ball bearing with a 20mm bore and 42mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2113 lbf and can spin at speeds up to 17,000 RPM.

Sealed on both sides, this bearing keeps dirt out and grease in, making it low-maintenance. Its chrome steel cage adds durability, ensuring smooth operation over time.

With a temperature range of -30°C to 120°C, it’s suitable for various environments. The bearing is interchangeable with SKF models, offering a reliable replacement option.

Weighing just 69g, it’s lightweight yet robust. Ideal for electric motors, pumps, or small machinery where radial loads and high speeds are common. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6004-2RSL/LHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2113 lbf
  • Static Radial Load 1135 lbf
  • Max Speed 17000 rpm
  • Weight 69 g
  • price（$） 5.22
Single Row Deep Groove Ball Bearings 6004-2RSL/LHT23 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6004-2RSL/LHT23 Bearing

6004-2RSL/LHT23 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.

Its dynamic radial load capacity reaches 2113 lbf, making it suitable for various applications.

The sealed design helps keep contaminants out, ensuring smooth operation in different environments.

With a maximum speed of 17,000 rpm, it delivers reliable performance while maintaining efficiency.

Application

Common Applications of 6004-2RSL/LHT23 Bearing
In industrial settings, 6004-2RSL/LHT23 Bearing is commonly used in electric motors and pumps, where its sealed design keeps contaminants out. The chrome steel construction ensures durability even in demanding environments.

How Does 6004-2RSL/LHT23 Bearing Improve Performance?
For automotive applications like alternators and water pumps, 6004-2RSL/LHT23 Bearing offers smooth rotation and long service life. Its ABEC 1 tolerance provides reliable performance without unnecessary cost.

Built for Heavy-Duty Use: 6004-2RSL/LHT23 Bearing
In agricultural machinery, 6004-2RSL/LHT23 Bearing handles radial loads efficiently, thanks to its deep groove design. The sealed construction also protects against dust and moisture in outdoor conditions.

Automotive vs Industrial: Where 6004-2RSL/LHT23 Bearing Excels
While 6004-2RSL/LHT23 Bearing works well in car components, it’s equally suited for conveyor systems in factories. Its balanced design ensures versatility across different load conditions.

Perfect Fit for Automation: 6004-2RSL/LHT23 Bearing
In robotic arms and small machinery, 6004-2RSL/LHT23 Bearing provides precise movement with minimal maintenance. The compact size makes it ideal for space-constrained applications.
