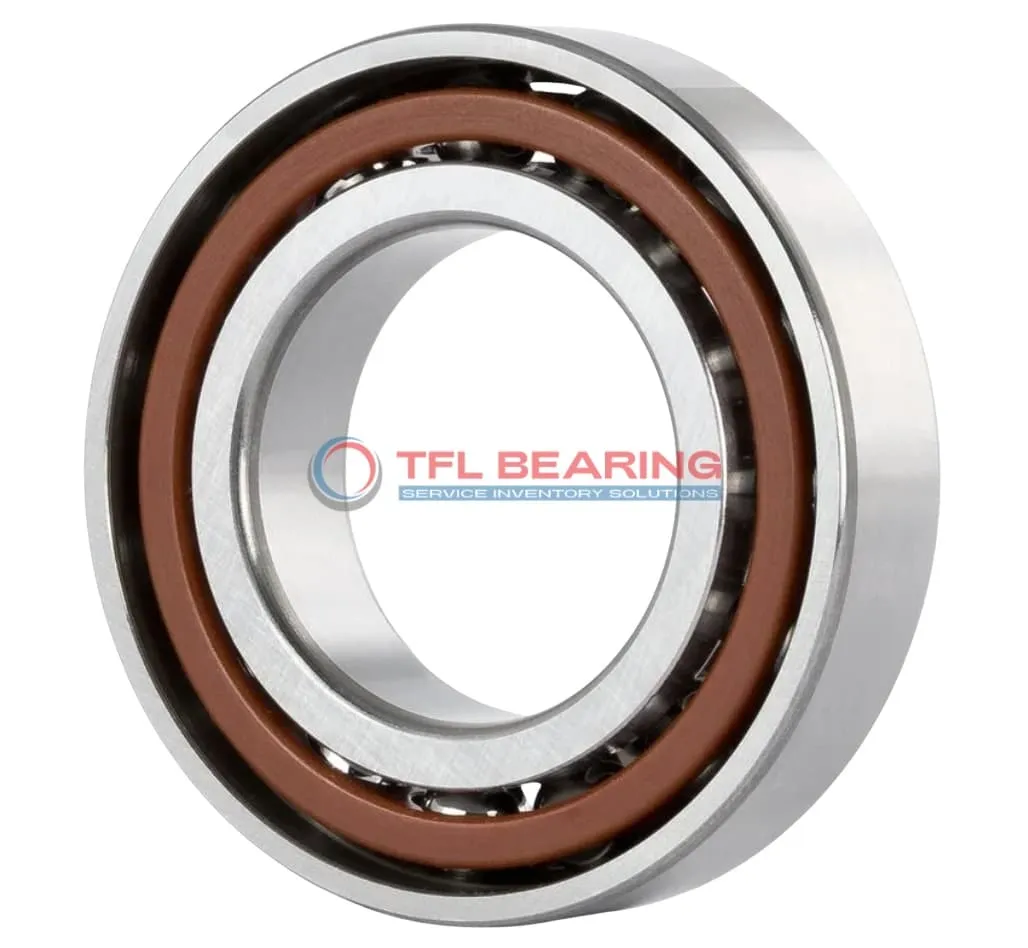

Super Precision Angular Contact Ball Bearings 7006 CE/HCP4ADGA

Super Precision Angular Contact Ball Bearings 7006 CE/HCP4ADGA

The 7006 CE/HCP4ADGA is a super precision angular contact ball bearing with a 30mm bore and 55mm outer diameter, crafted from chrome steel for durability. It handles radial loads up to 3398 lbf and reaches speeds of 100,500 RPM, thanks to its ceramic balls and phenolic cage.

Its 15° contact angle and universal matching design allow flexible arrangements like back-to-back or face-to-face setups. The extra light preload ensures smooth operation with minimal friction.

Ideal for high-speed applications like machine tool spindles or precision instruments. The open seal type makes maintenance straightforward, while the P4A tolerance class guarantees accuracy.

Weighing just 0.21kg, it’s lightweight yet robust. Compatible with SKF bearings, it’s a reliable choice for replacements. Works in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7006 CE/HCP4ADGA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 26 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 6.35 mm
  • Ball Qty 17
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement Universal matching
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 3398 lbf
  • Static Radial Load 2340 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 100500 rpm
  • Weight 0.21 kg
  • Price（$） 25.983
Super Precision Angular Contact Ball Bearings 7006 CE/HCP4ADGA dimension drawing
Download DWG Download PDF

Features

Performance Features of 7006 CE/HCP4ADGA Bearing

7006 CE/HCP4ADGA Bearing is crafted with chrome steel rings and ceramic balls, offering high precision and durability.
Its 15° contact angle ensures optimal performance in angular contact applications.
The phenolic cage provides stability, reducing friction and enhancing speed capabilities.

How Does 7006 CE/HCP4ADGA Bearing Achieve High-Speed Performance?

7006 CE/HCP4ADGA Bearing can reach speeds up to 100,500 rpm, thanks to its ceramic balls and phenolic cage.
The extra light preload (Class A) minimises friction, allowing smooth operation at high velocities.
Its universal matching design ensures versatility in various mounting configurations.

Engineered for Precision: 7006 CE/HCP4ADGA Bearing

7006 CE/HCP4ADGA Bearing meets P4A tolerance standards, guaranteeing exceptional accuracy.
The dynamic radial load capacity of 3398 lbf ensures reliability in demanding conditions.
Its lubricated design reduces maintenance needs while maintaining consistent performance.

Steel vs Ceramic Bearings: Strengths of 7006 CE/HCP4ADGA Bearing

7006 CE/HCP4ADGA Bearing combines chrome steel rings with ceramic balls for enhanced durability.
This hybrid design reduces weight and improves thermal stability compared to all-steel bearings.
The ceramic balls also minimise friction, contributing to its high-speed capabilities.

Application

Key Fields for 7006 CE/HCP4ADGA Bearing
7006 CE/HCP4ADGA Bearing is widely used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it ideal for demanding industrial environments.

In robotics, 7006 CE/HCP4ADGA Bearing supports articulated arms, providing smooth movement with minimal vibration. Its universal matching feature allows flexible installation in various configurations.

For medical imaging devices, 7006 CE/HCP4ADGA Bearing offers reliable performance due to its phenolic cage and chrome steel rings. The extra light preload ensures consistent operation in sensitive applications.

Automotive applications like electric motor shafts benefit from 7006 CE/HCP4ADGA Bearing’s high-speed capability. The open design simplifies lubrication, extending service life in challenging conditions.
