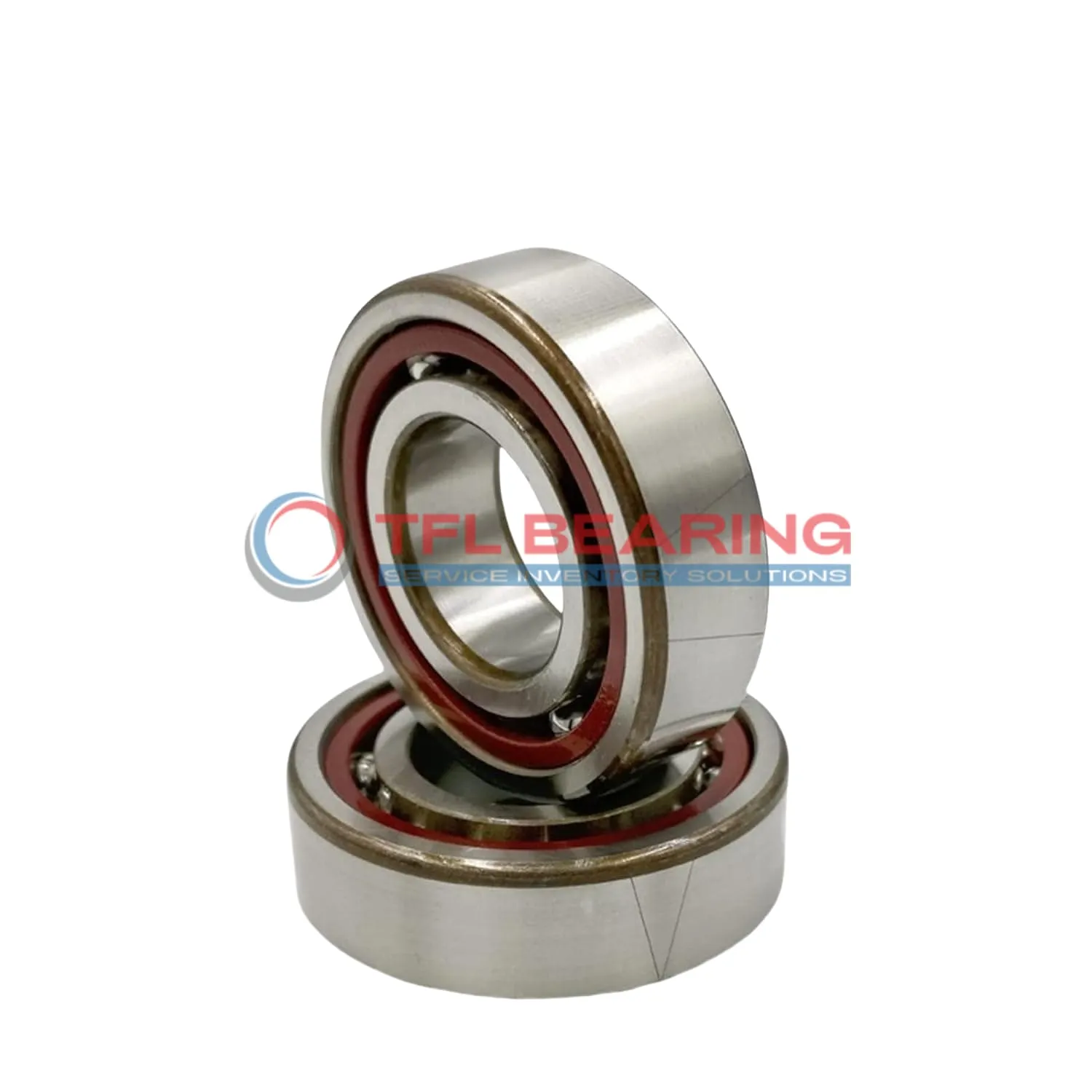

Super Precision Angular Contact Ball Bearings 7003 ACD/P4ADGB

Brand: TFL Bearing Interchangeable: SKF 7003 ACD/P4ADGB 17 mm × 35 mm × 20 mm Metric Open
Part number: 7003 ACD/P4ADGB
Super Precision Angular Contact Ball Bearings 7003 ACD/P4ADGB
In Stock
US$97.84 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia17 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia35 mm
Outer Dia Tolerance-0.004mm to 0
Width20 mm
Width Tolerance-0.2mm to 0
Ball Dia5.556 mm
Performance
PreloadLight / Class B
Dynamic Radial Load2,385 lbf
Static Radial Load1,395 lbf
Temperature Range- 30°C to 110 °C
Max Speed115,000 rpm
Characteristics
Ball Qty12
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementUniversal matching
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.076 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7003 ACD/P4ADGB is a super precision angular contact ball bearing with a 17mm bore and 35mm outer diameter, crafted from durable chrome steel. It features a 25° contact angle and comes in a matched set of two for versatile mounting options.

This bearing handles radial loads up to 2385 lbf and can spin at impressive speeds up to 115,000 RPM. Its phenolic cage ensures smooth operation and reduces friction during high-speed use.

The open design allows for easy lubrication, while the P4A tolerance class guarantees exceptional precision. It operates reliably in temperatures from -30°C to 110°C.

Ideal for applications like machine tool spindles or high-speed motors, this bearing offers flexibility with back-to-back, face-to-face, or tandem arrangements. Weighing just 0.076kg, it’s lightweight yet robust for precision tasks.

Features

Performance Features of 7003 ACD/P4ADGB Bearing

7003 ACD/P4ADGB Bearing is designed with a 25° contact angle, offering precise angular contact for high-speed applications.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and noise.

With a dynamic radial load capacity of 2385 lbf, it handles demanding conditions reliably.
The universal matching design allows flexible arrangements like back-to-back or face-to-face configurations.

7003 ACD/P4ADGB Bearing operates smoothly at speeds up to 115,000 rpm, making it ideal for precision machinery.
Its P4A tolerance class ensures consistent performance in critical applications.

The lightweight design at just 0.076 kg per bearing doesn’t compromise on strength or reliability.
Its temperature range of -30°C to 110°C suits various industrial environments.

Application

Common Applications of 7003 ACD/P4ADGB Bearing
In industrial settings, 7003 ACD/P4ADGB Bearing is commonly used in high-speed spindles and machine tools, where its precision angular contact design ensures accurate performance. The open seal type allows for efficient lubrication, extending its service life in demanding conditions.

Where Is 7003 ACD/P4ADGB Bearing Used?
You’ll often find 7003 ACD/P4ADGB Bearing in automotive applications like electric motors and gearboxes, where its light preload and universal matching capability enhance stability. Its phenolic cage material also helps reduce friction, making it suitable for high-speed rotations.

Built for Heavy-Duty Use: 7003 ACD/P4ADGB Bearing
For robotics and automation, 7003 ACD/P4ADGB Bearing excels in robotic arms and 3D printers, thanks to its P4A tolerance class and chrome steel construction. The matched arrangement ensures smooth operation even under angular loads.

Medical vs Industrial: Where 7003 ACD/P4ADGB Bearing Excels
In medical imaging devices, 7003 ACD/P4ADGB Bearing provides reliable precision, while in industrial pumps, its dynamic radial load capacity handles continuous operation. The temperature range of -30°C to 110°C makes it versatile for various environments.
