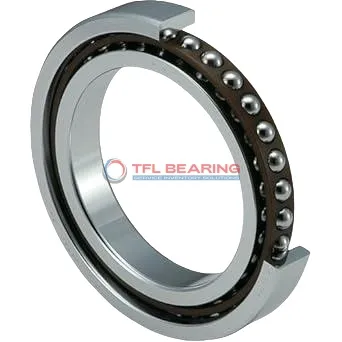

Super Precision Angular Contact Ball Bearings 7002 ACD/HCP4AH

Brand: TFL Bearing Interchangeable: SKF 7002 ACD/HCP4AH 15 mm × 32 mm × 9 mm Metric Open
Part number: 7002 ACD/HCP4AH
Super Precision Angular Contact Ball Bearings 7002 ACD/HCP4AH
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia15 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia32 mm
Outer Dia Tolerance-0.004mm to 0
Width9 mm
Width Tolerance-0.2mm to 0
Ball Dia4.762 mm
Performance
PreloadAvailable
Dynamic Radial Load1,112 lbf
Static Radial Load522 lbf
Temperature Range- 30°C to 110 °C
Max Speed95,000 rpm
Characteristics
Ball Qty12
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set2
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight0.027 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7002 ACD/HCP4AH is a super precision angular contact ball bearing with a compact size of 15mm by 32mm by 9mm. Made from chrome steel and ceramic balls, it offers high performance with a 25° contact angle.

It handles radial loads up to 1112 lbf and spins smoothly at speeds up to 95,000 RPM. The phenolic cage ensures durability, while the open design allows for easy lubrication.

This bearing is ideal for high-speed applications like machine tool spindles or precision instruments. Its P4A tolerance class guarantees exceptional accuracy.

Weighing just 0.027kg, it’s lightweight yet robust. Compliant with standard temperature ranges from -30°C to 110°C, it’s a reliable choice for demanding environments.

Features

Performance Features of 7002 ACD/HCP4AH Bearing

7002 ACD/HCP4AH Bearing is designed with a 25° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and ceramic balls ensure smooth operation and reduced friction.

The phenolic cage in 7002 ACD/HCP4AH Bearing maintains ball alignment, enhancing durability.
With a dynamic radial load capacity of 1112 lbf, it performs reliably in high-speed applications.

7002 ACD/HCP4AH Bearing supports speeds up to 95,000 rpm, making it suitable for precision tasks.
The open design allows for easy lubrication, ensuring consistent performance.

Operating between -30°C to 110°C, 7002 ACD/HCP4AH Bearing adapts to various environmental conditions.
Its P4A tolerance class guarantees high precision and minimal vibration.

The compact size of 15 mm×32 mm×9 mm makes 7002 ACD/HCP4AH Bearing versatile for different setups.
Its lightweight design at 0.027 kg reduces overall system weight without compromising strength.

Application

Industrial Uses of 7002 ACD/HCP4AH Bearing
7002 ACD/HCP4AH Bearing is commonly used in high-speed machine tools, where its angular contact design ensures precise radial and axial load handling. The ceramic balls reduce friction, making it suitable for applications demanding smooth rotation.

Where Is 7002 ACD/HCP4AH Bearing Used?
You’ll often find 7002 ACD/HCP4AH Bearing in automotive transmissions, where its 25° contact angle helps manage combined loads effectively. Its phenolic cage adds durability, even under high-speed conditions.

Optimized for Performance: 7002 ACD/HCP4AH Bearing
In robotics, 7002 ACD/HCP4AH Bearing supports articulated arms, thanks to its P4A tolerance class for consistent accuracy. The open design allows for easy lubrication, extending its service life.

Medical vs Industrial: Where 7002 ACD/HCP4AH Bearing Excels
7002 ACD/HCP4AH Bearing works well in medical imaging devices, offering reliable performance with minimal vibration. Its chrome steel rings and ceramic balls also make it a solid choice for industrial spindles.
