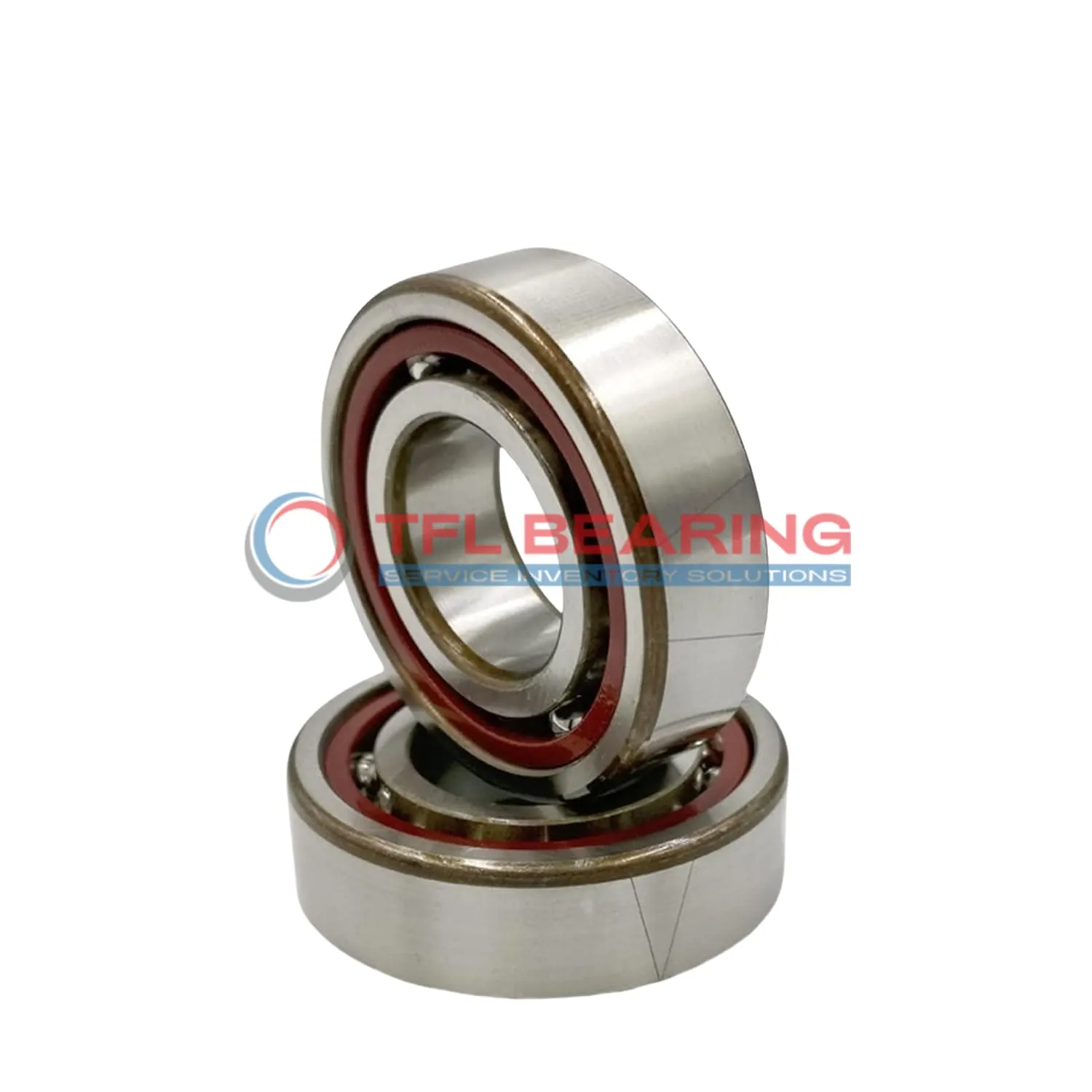

Super Precision Angular Contact Ball Bearings 7003 ACD/P4ADGA

Brand: TFL Bearing Interchangeable: SKF 7003 ACD/P4ADGA 17 mm × 35 mm × 20 mm Metric Open
Part number: 7003 ACD/P4ADGA
Super Precision Angular Contact Ball Bearings 7003 ACD/P4ADGA
In Stock
US$99.72 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia17 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia35 mm
Outer Dia Tolerance-0.004mm to 0
Width20 mm
Width Tolerance-0.2mm to 0
Ball Dia5.556 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load2,385 lbf
Static Radial Load1,395 lbf
Temperature Range- 30°C to 110 °C
Max Speed115,000 rpm
Characteristics
Ball Qty12
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementUniversal matching
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.076 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7003 ACD/P4ADGA is a super precision angular contact ball bearing with a 17mm bore and 35mm outer diameter, crafted from durable chrome steel. It features a 25° contact angle and comes in a universal matching set of two for versatile mounting options.

This bearing handles radial loads up to 2385 lbf and spins smoothly at speeds up to 115,000 RPM. Its extra-light preload ensures minimal friction, making it ideal for high-precision applications.

The open design allows easy lubrication, while the phenolic cage enhances durability. It operates efficiently in temperatures from -30°C to 110°C.

Perfect for machine tools or high-speed spindles where precision and reliability are key. Weighing just 0.076kg, it’s lightweight yet robust for its size. Interchangeable with SKF bearings for easy replacements.

Features

Performance Features of 7003 ACD/P4ADGA Bearing

7003 ACD/P4ADGA Bearing is crafted with chrome steel rings and balls, offering high precision for angular contact applications.
Its 25° contact angle ensures efficient load distribution, enhancing performance in high-speed operations.

The phenolic cage maintains ball alignment, reducing friction and noise during use.
With a dynamic radial load capacity of 2385 lbf, it handles demanding tasks with ease.

7003 ACD/P4ADGA Bearing operates smoothly at speeds up to 115,000 rpm, making it ideal for precision machinery.
Its universal matching design allows flexible arrangement in back-to-back, face-to-face, or tandem configurations.

The extra light preload (Class A) ensures minimal resistance, optimising efficiency.
Its temperature range of -30°C to 110°C suits various industrial environments.

Application

Industrial Uses of 7003 ACD/P4ADGA Bearing
7003 ACD/P4ADGA Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate alignment under radial and axial loads. The phenolic cage reduces friction, making it suitable for high-speed operations.

Where Is 7003 ACD/P4ADGA Bearing Used?
In robotics, 7003 ACD/P4ADGA Bearing provides smooth motion control for robotic arms, thanks to its universal matching feature. The extra light preload also minimises vibration, enhancing precision in automated tasks.

Optimized for Performance: 7003 ACD/P4ADGA Bearing
For medical imaging devices, 7003 ACD/P4ADGA Bearing’s chrome steel construction offers reliable performance in demanding environments. Its P4A tolerance class ensures consistent accuracy for critical applications.

Automotive vs Aerospace: Applications of 7003 ACD/P4ADGA Bearing
In automotive systems, 7003 ACD/P4ADGA Bearing supports gearbox components, while in aerospace, it handles high-speed spindle loads. The open design allows for easy lubrication, extending service life in both fields.

Practical Applications of 7003 ACD/P4ADGA Bearing
7003 ACD/P4ADGA Bearing is ideal for 3D printers, where its low friction and high-speed capability ensure precise layer deposition. The matched set configuration also simplifies installation in compact spaces.
