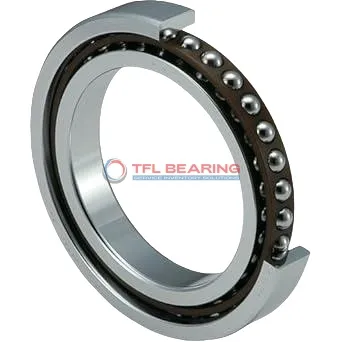

Super Precision Angular Contact Ball Bearings 7002 ACDGA/HCP4A

Brand: TFL Bearing Interchangeable: SKF 7002 ACDGA/HCP4A 15 mm × 32 mm × 9 mm Metric Open
Part number: 7002 ACDGA/HCP4A
Super Precision Angular Contact Ball Bearings 7002 ACDGA/HCP4A
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia15 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia32 mm
Outer Dia Tolerance-0.004mm to 0
Width9 mm
Width Tolerance-0.2mm to 0
Ball Dia4.762 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load1,112 lbf
Static Radial Load522 lbf
Temperature Range- 30°C to 110 °C
Max Speed95,000 rpm
Characteristics
Ball Qty12
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set3
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.027 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 7002 ACDGA/HCP4A is a super precision angular contact ball bearing with a compact size of 15mm by 32mm by 9mm. Made from chrome steel and ceramic balls, it offers smooth operation and durability.

With a 25° contact angle, it handles both radial and axial loads efficiently. It spins at speeds up to 95,000 RPM, making it suitable for high-speed applications.

The phenolic cage ensures stability, while the extra light preload reduces friction. It works in temperatures from -30°C to 110°C.

Ideal for precision machinery like spindles or dental tools, this bearing is interchangeable with SKF models. Its lightweight design (0.027kg) and P4A tolerance class ensure reliable performance.

Features

Performance Features of 7002 ACDGA/HCP4A Bearing

7002 ACDGA/HCP4A Bearing features a 25° contact angle, optimised for high-precision angular contact applications.
Its chrome steel rings and ceramic balls reduce friction, enhancing speed and durability.

The phenolic cage ensures smooth operation, even at speeds up to 95,000 rpm.
With a dynamic radial load capacity of 1112 lbf, it handles demanding tasks reliably.

7002 ACDGA/HCP4A Bearing operates efficiently in temperatures from -30°C to 110°C.
Its P4A tolerance class guarantees consistent performance in precision machinery.

Application

Common Applications of 7002 ACDGA/HCP4A Bearing
7002 ACDGA/HCP4A Bearing is widely used in high-speed machine tools, where its ceramic balls and phenolic cage reduce friction and heat buildup. The P4A tolerance ensures precise alignment, crucial for maintaining accuracy in CNC operations.

In robotics, 7002 ACDGA/HCP4A Bearing supports articulated arms, offering smooth motion thanks to its 25° contact angle. The extra-light preload minimises resistance, enhancing energy efficiency in automated systems.

For dental drills and other medical devices, 7002 ACDGA/HCP4A Bearing’s chrome steel rings provide durability while meeting hygiene standards. Its lubricated design ensures quiet operation, ideal for sensitive clinical environments.

Where Is 7002 ACDGA/HCP4A Bearing Used?
You’ll often find 7002 ACDGA/HCP4A Bearing in optical equipment like lens positioning systems, where its minimal vibration is key. The metric sizing fits neatly into compact designs without sacrificing performance.

In electric vehicle motors, 7002 ACDGA/HCP4A Bearing handles radial and axial loads efficiently. Its temperature stability (-30°C to 110°C) makes it reliable even during prolonged high-RPM operation.

Built for Versatility: 7002 ACDGA/HCP4A Bearing
This bearing adapts well to 3D printers, particularly in extruder assemblies where precision matters. The open seal design simplifies cleaning, reducing downtime in continuous printing jobs.

Light-Duty vs Heavy-Duty: Best Uses for 7002 ACDGA/HCP4A Bearing
For light-duty applications like camera gimbals, 7002 ACDGA/HCP4A Bearing’s ceramic balls eliminate magnetic interference. In heavier uses such as spindle drives, its dynamic load capacity (1112 lbf) prevents premature wear.
