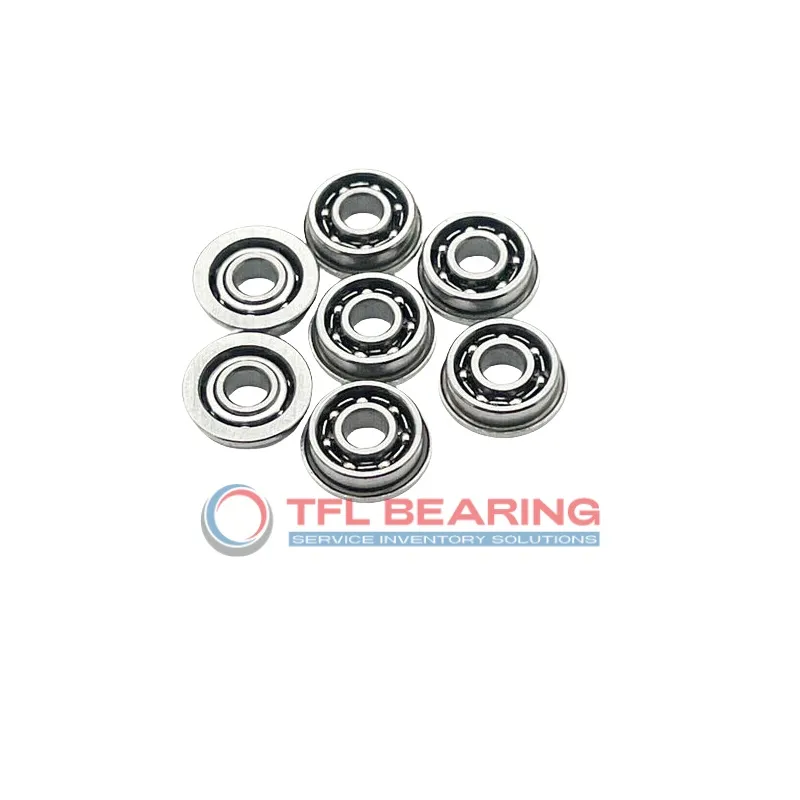

Standard Flanged Ball Bearings F6705

Standard Flanged Ball Bearings F6705

The F6705 is a compact flanged ball bearing with a 25mm bore and 32mm outer diameter, measuring just 4mm wide. Made from chrome steel, it’s built to handle radial loads up to 247 lbf and speeds of 7000 RPM.

Its open design simplifies lubrication, while the stainless steel cage ensures durability. The flange adds stability, making it easier to mount in tight spaces.

This bearing suits applications like small motors or precision equipment where space is limited. It operates smoothly in temperatures from -30°C to 110°C.

Compliant with RoHS and REACH standards, it’s a reliable choice for engineers and maintenance teams. The ABEC-1 tolerance ensures consistent performance for everyday use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F6705
  • Brand TFL
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.010mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011 mm to 0
  • Width 4 mm
  • Width Tolerance -0.12 mm to 0
  • Flange Outer Dia 34 mm
  • Flange Thickness 1 mm
  • Ball Qty 21
  • Ball Dia 1.588 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 247 lbf
  • Static Radial Load 188 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7000 rpm
  • Price（$） 3.6
Standard Flanged Ball Bearings F6705 dimension drawing
Download DWG Download PDF

Features

Why Choose F6705 Bearing for Precision Tasks?

F6705 Bearing features a compact design with dimensions of 25 mm×34 mm×4 mm, making it suitable for space-constrained applications.
Its chrome steel construction ensures durability and resistance to wear, even under radial loads up to 247 lbf.
The stainless steel cage maintains ball alignment, contributing to smooth operation at speeds up to 7,000 rpm.
With a temperature range of -30° to 110°C, F6705 Bearing performs reliably in various environments.

Application

Practical Applications of F6705 Bearing
F6705 Bearing works well in small electric motors, especially those used in household appliances like blenders and mixers. Its compact size and open design make it easy to install and maintain.

In automation equipment, F6705 Bearing supports lightweight robotic arms and conveyor guides, where its radial load capacity is sufficient for smooth movement. The chrome steel construction ensures durability in continuous operation.

For office machinery such as printers and scanners, F6705 Bearing’s low-profile design fits neatly into tight spaces. The stainless steel cage helps reduce friction, extending the bearing’s lifespan even with frequent use.

Where Is F6705 Bearing Used?
You’ll often find F6705 Bearing in cooling fans for computers and electronics, where its quiet operation is a plus. The flange design keeps it securely in place during high-speed rotation.

In light-duty industrial tools like handheld sanders, F6705 Bearing handles moderate radial loads without overheating. The ABEC-1 tolerance provides reliable performance for everyday tasks.
