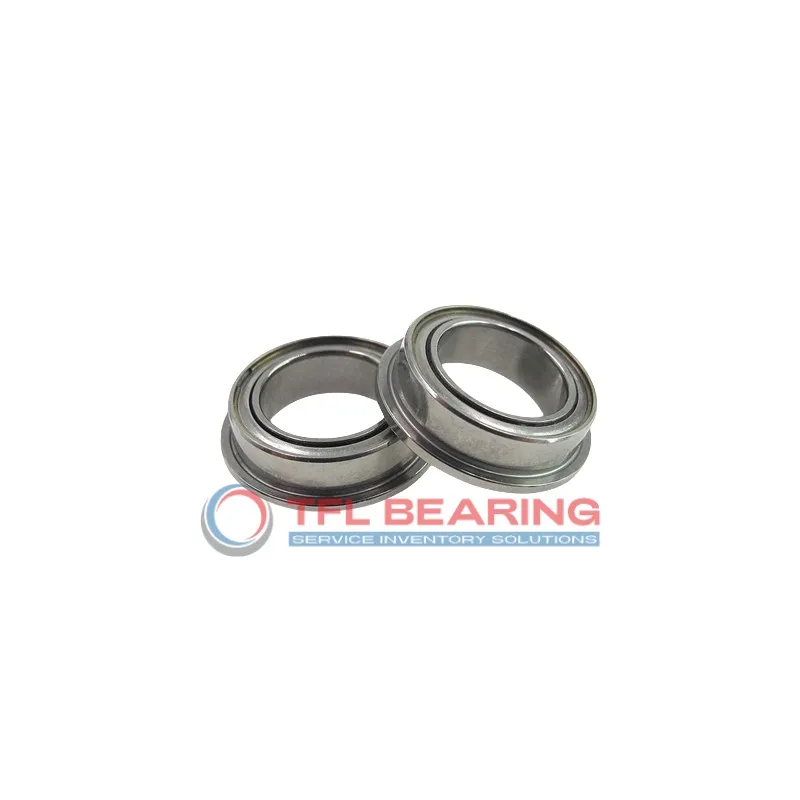

Standard Flanged Ball Bearings F6002zz

The F6002zz is a compact flanged ball bearing with a 15mm bore and 32mm outer diameter, measuring just 9mm wide. Made from chrome steel, it offers reliable radial load support up to 1315 lbf.

Its shielded design keeps grease in and dirt out, while the stainless steel cage ensures smooth operation at speeds up to 26,000 RPM. The flange provides extra stability during mounting.

This bearing works well in temperatures from -20°C to 120°C and comes pre-lubricated for easy use. It meets P6 tolerance standards for precise applications.

Ideal for small machinery, electric motors, or appliances where space is limited. Weighing only 0.03kg, it’s lightweight yet durable for its size. Compliant with RoHS and REACH regulations.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number F6002zz
Brand TFL
Bore Dia 15 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 32 mm
Outer Dia Tolerance -0.0011mm to 0
Width 9 mm
Width Tolerance -0.12 mm to 0
Flange Outer Dia 34.25 mm
Tolerance Class P6
Radial Clearance Trade No CN
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Inner Ring Type Standard
Seal Type Shielded
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Stainless Steel
Dynamic Radial Load 1315 lbf
Static Radial Load 641 lbf
Lubrication Grease
Temperature Range -20° to 120 °C
RoHS Compliant
REACH Compliant
Max Speed 26000 rpm
Weight 0.03 kg
Price（$） 2.6

Standard Flanged Ball Bearings F6002zz dimension drawing

Download DWG Download PDF

Features

Performance Features of F6002zz Bearing

F6002zz Bearing is built with chrome steel rings and balls, offering reliable radial load support up to 1315 lbf.
Its shielded design helps keep contaminants out while retaining lubrication for smoother operation.

The stainless steel cage ensures proper ball alignment, reducing friction and wear over time.
With a maximum speed of 26,000 rpm, it delivers efficient performance in various applications.

F6002zz Bearing operates in temperatures from -20° to 120°C, making it suitable for diverse environments.
Its compact 15 mm bore and 9 mm width allow for easy integration into space-constrained designs.

Application

Industrial Uses of F6002zz Bearing
F6002zz Bearing is commonly used in small electric motors and pumps, where its shielded design helps keep contaminants out while maintaining smooth rotation. The compact size and flange make it easy to install in tight spaces.

In automotive applications, F6002zz Bearing fits well in components like alternators and cooling fans, providing reliable radial load support. Its grease lubrication ensures quiet operation, even at higher speeds.

For home appliances, F6002zz Bearing works efficiently in devices like washing machines and blenders, where durability and low maintenance are key. The chrome steel construction offers a good balance of strength and cost-effectiveness.

Automation & robotics also benefit from F6002zz Bearing, particularly in lightweight robotic arms or conveyor systems. The P6 tolerance class ensures consistent performance for precise movements.

In office equipment, F6002zz Bearing can be found in printers and scanners, where its shielded design prevents dust buildup. The metric sizing makes it compatible with many European and Asian models.
