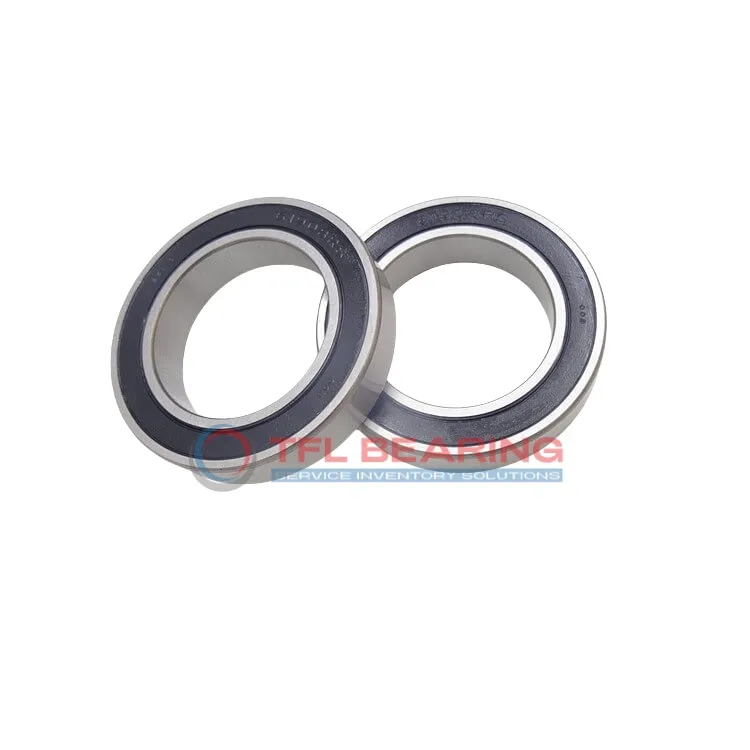

Stainless Steel Deep Groove Ball Bearings W 6304-2RS1

Stainless Steel Deep Groove Ball Bearings W 6304-2RS1

The W 6304-2RS1 is a stainless steel deep groove ball bearing, measuring 20mm in bore diameter and 52mm in outer diameter, with a compact width of 15mm. Its sealed design keeps grease in and dirt out, ensuring smooth operation.

This bearing handles radial loads up to 3102 lbf and spins efficiently at speeds up to 9500 RPM. Made entirely of stainless steel, it resists corrosion and works well in temperatures from -30°C to 120°C.

The sealed construction reduces maintenance needs, while the single-row design offers reliable performance. It’s interchangeable with SKF bearings, making replacements straightforward.

Ideal for applications like food processing or marine equipment where moisture resistance is key. Weighing just 0.14kg, it’s lightweight yet durable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6304-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 3102 lbf
  • Static Radial Load 1754 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 9500 rpm
  • Weight 0.14 kg
  • Price（$） 21.49
Stainless Steel Deep Groove Ball Bearings W 6304-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does W 6304-2RS1 Bearing Reduce Friction?

W 6304-2RS1 Bearing features stainless steel construction, ensuring smooth operation with minimal friction.
Its sealed design keeps contaminants out, maintaining consistent performance over time.
The single-row deep groove design efficiently handles radial loads up to 3102 lbf.
With a maximum speed of 9,500 rpm, it offers reliable performance in various applications.

Application

Common Applications of W 6304-2RS1 Bearing
W 6304-2RS1 Bearing is widely used in industrial equipment, such as conveyor systems and pumps, where its sealed design protects against dust and debris. The stainless steel construction ensures long-lasting performance even in harsh environments.

In automotive applications, W 6304-2RS1 Bearing is often found in electric motors and alternators, providing reliable radial load support. Its grease lubrication helps maintain smooth operation over extended periods.

For medical devices like lab equipment, W 6304-2RS1 Bearing offers quiet and precise rotation, essential for accurate measurements. The P0 tolerance class ensures consistent performance in sensitive applications.

Where Is W 6304-2RS1 Bearing Used?
You’ll often spot W 6304-2RS1 Bearing in household appliances like washing machines, where its durability handles frequent use. The sealed design also prevents grease leakage, keeping things clean.

In automation systems, W 6304-2RS1 Bearing supports robotic arms and assembly lines, thanks to its smooth rotation and load capacity. The stainless steel materials resist corrosion, ideal for humid or wet conditions.

Built for Versatility: W 6304-2RS1 Bearing
W 6304-2RS1 Bearing works well in food processing equipment, where stainless steel meets hygiene standards. Its sealed design also prevents contamination, crucial in this industry.

For small machinery like printers, W 6304-2RS1 Bearing ensures quiet and efficient operation. The compact size fits neatly into tight spaces without sacrificing performance.
