Single Row Deep Groove Ball Bearings 61940 MA

Single Row Deep Groove Ball Bearings 61940 MA

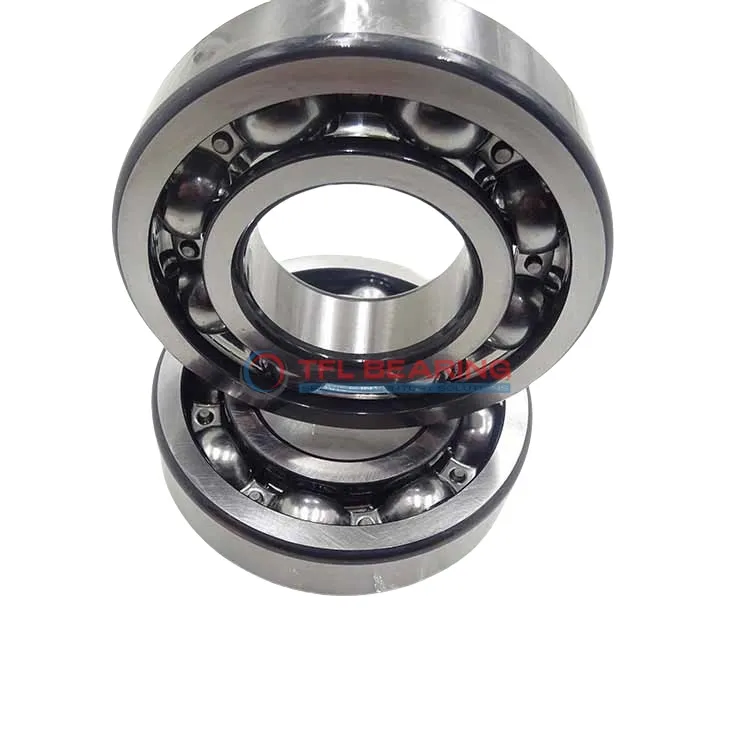

The 61940 MA is a single-row deep groove ball bearing with a 200mm bore and 280mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 33272 lbf and operates smoothly at speeds up to 3800 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability under heavy use. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for industrial machinery or heavy equipment where radial load support is needed.

Weighing 7.32kg, it’s built to last while meeting RoHS and REACH standards for safety and compliance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61940 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 200 mm
  • Bore Dia Tolerance -0.022mm to 0
  • Outer Dia 280 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 38 mm
  • Width Tolerance -0.3mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 33272 lbf
  • Static Radial Load 37318 lbf
  • Max Speed 3800 rpm
  • Weight 7.32 kg
  • price（$） 591.444
Single Row Deep Groove Ball Bearings 61940 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 61940 MA Bearing

61940 MA Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 33272 lbf, making it suitable for heavy-duty applications.

The stainless steel cage ensures smooth operation by keeping the balls aligned.
With a maximum speed of 3,800 rpm, it delivers reliable performance in various conditions.

61940 MA Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its open design allows for easy lubrication and maintenance, reducing downtime.

The precision P6 tolerance class ensures consistent performance and long service life.
This makes 61940 MA Bearing a dependable choice for industrial applications.

Application

Industrial Uses of 61940 MA Bearing
The 61940 MA Bearing is commonly used in heavy machinery, such as large pumps and compressors, where its deep groove design handles radial loads efficiently. Its open seal type makes it easy to lubricate and maintain in demanding industrial settings.

Where Is 61940 MA Bearing Used?
You’ll often find the 61940 MA Bearing in wind turbines and large electric motors, thanks to its high dynamic load capacity. The chrome steel construction ensures long-lasting performance even in harsh environments.

Built for Heavy-Duty Use: 61940 MA Bearing
This bearing is a solid choice for construction equipment like cranes and excavators, where reliability under heavy loads is key. The stainless steel cage adds durability, making it suitable for continuous operation.

Automotive vs Aerospace: Applications of 61940 MA Bearing
In automotive applications, the 61940 MA Bearing supports large drivetrain components, while in aerospace, it’s used in auxiliary systems. Its P6 tolerance class ensures precision in both fields.

Perfect Fit for Automation: 61940 MA Bearing
The 61940 MA Bearing works well in automated production lines, particularly in robotic arms and conveyor systems. Its high-speed capability and radial load handling make it a versatile choice.
