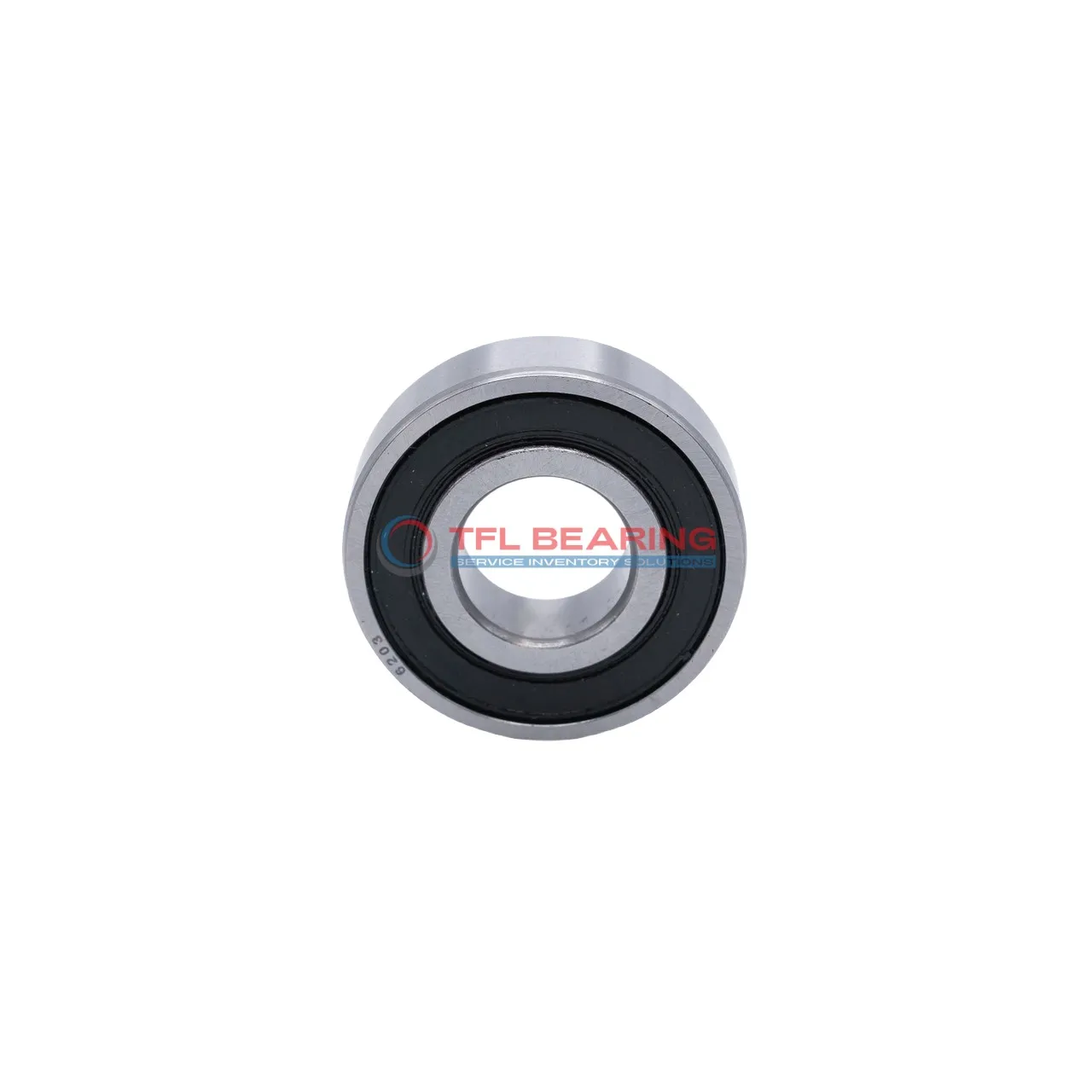

Stainless Steel Deep Groove Ball Bearings W 6300-2RS1

Stainless Steel Deep Groove Ball Bearings W 6300-2RS1

The W 6300-2RS1 is a compact stainless steel deep groove ball bearing, measuring 10mm in bore and 35mm in outer diameter. Its sealed design keeps grease in and dirt out, making it low-maintenance. The bearing handles radial loads up to 1578 lbf and spins at speeds up to 15,000 RPM.

Built entirely from stainless steel, it resists corrosion and works in temperatures from -30°C to 120°C. The single-row design with a grease-filled sealed construction ensures smooth operation. It’s interchangeable with SKF bearings for easy replacement.

Ideal for applications where moisture or chemicals are present, like food processing or marine equipment. Weighing just 52 grams, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6300-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 11 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1578 lbf
  • Static Radial Load 764 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 15000 rpm
  • Weight 0.052 kg
  • Price（$） 5.83
Stainless Steel Deep Groove Ball Bearings W 6300-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose W 6300-2RS1 Bearing for Precision Tasks?

W 6300-2RS1 Bearing features stainless steel construction, offering excellent resistance to corrosion and wear.
Its sealed design keeps contaminants out, ensuring smooth operation in various environments.

The bearing handles dynamic radial loads up to 1578 lbf, making it suitable for demanding applications.
With a maximum speed of 15,000 rpm, it delivers reliable performance without compromising efficiency.

W 6300-2RS1 Bearing’s single-row design provides consistent radial load support.
Its grease lubrication reduces maintenance needs, extending service life.

Application

Industrial Uses of W 6300-2RS1 Bearing
W 6300-2RS1 Bearing is commonly used in conveyor systems and packaging machinery, where its sealed design keeps contaminants out and extends service life. The stainless steel construction also makes it suitable for humid or corrosive environments.

How Does W 6300-2RS1 Bearing Improve Performance?
In automotive applications like electric window motors, W 6300-2RS1 Bearing provides smooth rotation and low noise. Its grease lubrication ensures consistent performance even under frequent use.

Perfect Fit for Automation: W 6300-2RS1 Bearing
W 6300-2RS1 Bearing works well in robotic arms and 3D printers, offering reliable radial load support. The compact size fits neatly into tight spaces without sacrificing durability.

Medical vs Industrial: Where W 6300-2RS1 Bearing Excels
For medical devices like dental drills, W 6300-2RS1 Bearing’s stainless steel material meets hygiene standards. In industrial settings, it handles moderate loads in pumps and small gearboxes with ease.
