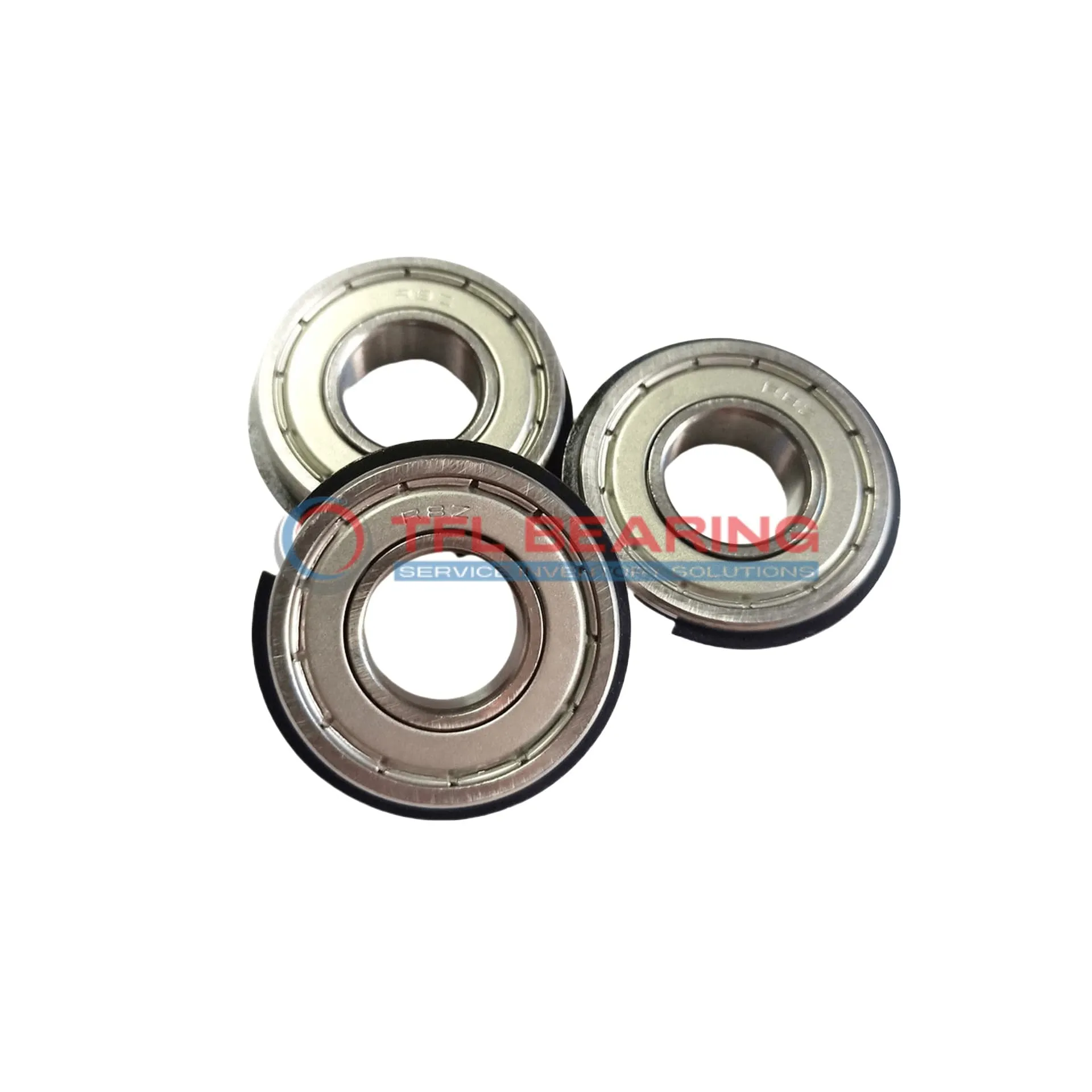

Snap Ring Groove Ball Bearings 6204-2ZNRJEM

Snap Ring Groove Ball Bearings 6204-2ZNRJEM

The 6204-2ZNRJEM is a compact snap ring groove ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2878 lbf and can spin at speeds up to 15,000 RPM.

Its shielded design keeps dirt out while the snap ring ensures secure fitting, making installation straightforward. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like electric motors or small machinery where radial loads are common.

Weighing just 106g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6204-2ZNRJEM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 52.7 mm
  • Width Of Snap Ring 1.12 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 2878 lbf
  • Static Radial Load 1495 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 15000 rpm
  • Weight 106 g
  • Price（$） 3.59
Snap Ring Groove Ball Bearings 6204-2ZNRJEM dimension drawing
Download DWG Download PDF

Features

Why Choose 6204-2ZNRJEM Bearing for Precision Tasks?

6204-2ZNRJEM Bearing features shielded seals and a snap ring groove, ensuring secure placement in radial applications.
Its chrome steel construction offers durability and resistance to wear, even under high speeds of up to 15,000 rpm.

The ABEC 1 tolerance class ensures reliable performance, while the CN radial clearance provides smooth operation.
With a dynamic radial load capacity of 2878 lbf, it handles demanding tasks with ease.

Ideal for a wide temperature range from -30°C to 120°C, 6204-2ZNRJEM Bearing performs consistently in various environments.
Its compact design and lightweight construction make it suitable for space-constrained applications.

Application

Industrial Uses of 6204-2ZNRJEM Bearing
The 6204-2ZNRJEM Bearing is commonly used in conveyor systems, where its shielded design protects against dust and debris. Its snap ring feature ensures secure mounting, reducing maintenance needs in busy industrial settings.

What Makes 6204-2ZNRJEM Bearing a Preferred Choice?
In automotive applications like electric motors, the 6204-2ZNRJEM Bearing offers reliable radial load support. The chrome steel construction provides durability, even under continuous use.

Perfect Fit for Automation: 6204-2ZNRJEM Bearing
This bearing works well in robotic arms, where precise movement is essential. The shielded seals help maintain performance in environments with small particles.

Medical vs Industrial: Where 6204-2ZNRJEM Bearing Excels
While suitable for medical devices like lab equipment, the 6204-2ZNRJEM Bearing is also robust enough for industrial machinery. Its temperature range allows flexibility in various operating conditions.

Where to Use 6204-2ZNRJEM Bearing
In household appliances like washing machines, the 6204-2ZNRJEM Bearing ensures smooth operation. Its compact size and shielded design make it ideal for space-constrained applications.
