Stainless Steel Deep Groove Ball Bearings W 628/8-2RS1

Stainless Steel Deep Groove Ball Bearings W 628/8-2RS1

The W 628/8-2RS1 is a compact stainless steel deep groove ball bearing, measuring 8mm by 16mm by 5mm. It’s designed for radial loads and handles up to 161 lbf, with a maximum speed of 26,000 RPM.

Its sealed construction keeps grease in and dirt out, making it low-maintenance. The all-stainless steel build ensures corrosion resistance and durability.

This bearing operates smoothly in temperatures from -30°C to 120°C. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for small machinery or appliances where space is limited. Weighing just 0.0039kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 628/8-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 16 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 161 lbf
  • Static Radial Load 67 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 26000 rpm
  • Weight 0.0039 kg

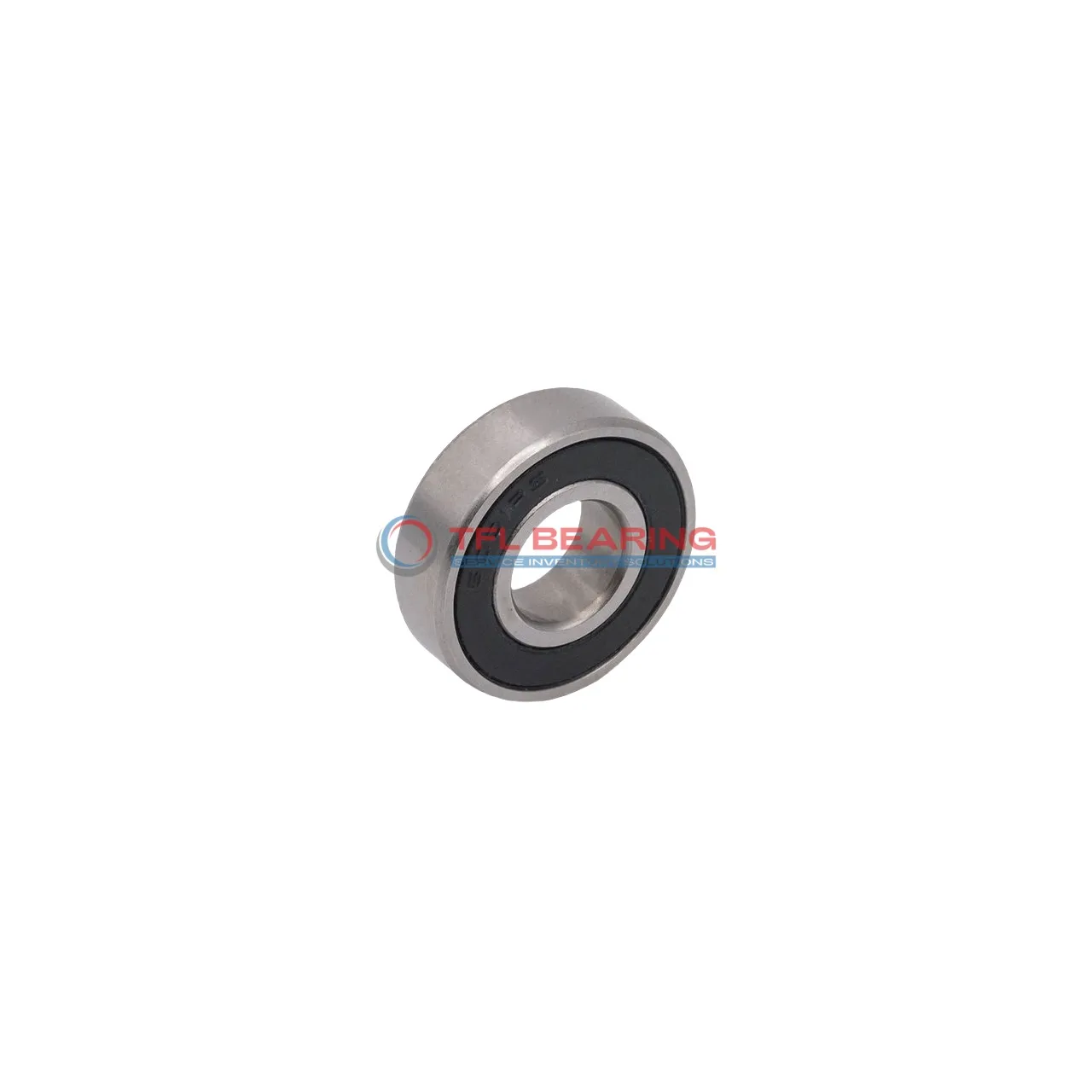

Stainless Steel Deep Groove Ball Bearings W 628/8-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose W 628/8-2RS1 Bearing for Precision Tasks?

W 628/8-2RS1 Bearing is crafted from stainless steel, offering excellent corrosion resistance and durability.
Its sealed design keeps contaminants out, ensuring smooth operation in various environments.

With a dynamic radial load capacity of 161 lbf, it handles demanding radial applications with ease.
The bearing’s compact size (8 mm×16 mm×5 mm) makes it ideal for precision instruments and small machinery.

W 628/8-2RS1 Bearing operates at speeds up to 26,000 rpm, balancing performance and longevity.
Its grease lubrication reduces maintenance needs, making it a practical choice for long-term use.

Application

Industrial Uses of W 628/8-2RS1 Bearing
W 628/8-2RS1 Bearing is commonly used in small industrial equipment like pumps and compressors, where its compact size and sealed design prevent contamination. The stainless steel construction ensures durability even in humid or corrosive environments.

Where Is W 628/8-2RS1 Bearing Used?
In automotive applications, W 628/8-2RS1 Bearing fits well in electric window mechanisms and small gearboxes, offering smooth rotation with minimal maintenance. Its metric dimensions make it a versatile choice for various vehicle models.

Perfect Fit for Automation: W 628/8-2RS1 Bearing
W 628/8-2RS1 Bearing works efficiently in robotic arms and 3D printers, where precision and reliability are key. The sealed design keeps out dust and debris, ensuring long-lasting performance in automated systems.

Medical vs Industrial: Where W 628/8-2RS1 Bearing Excels
W 628/8-2RS1 Bearing is suitable for medical devices like dental tools, thanks to its corrosion-resistant materials. In industrial settings, it handles light radial loads in conveyor systems and small motors with ease.

Key Fields for W 628/8-2RS1 Bearing
W 628/8-2RS1 Bearing is ideal for consumer electronics such as cooling fans and small appliances, where quiet operation is essential. The grease lubrication ensures smooth performance over a wide temperature range.
