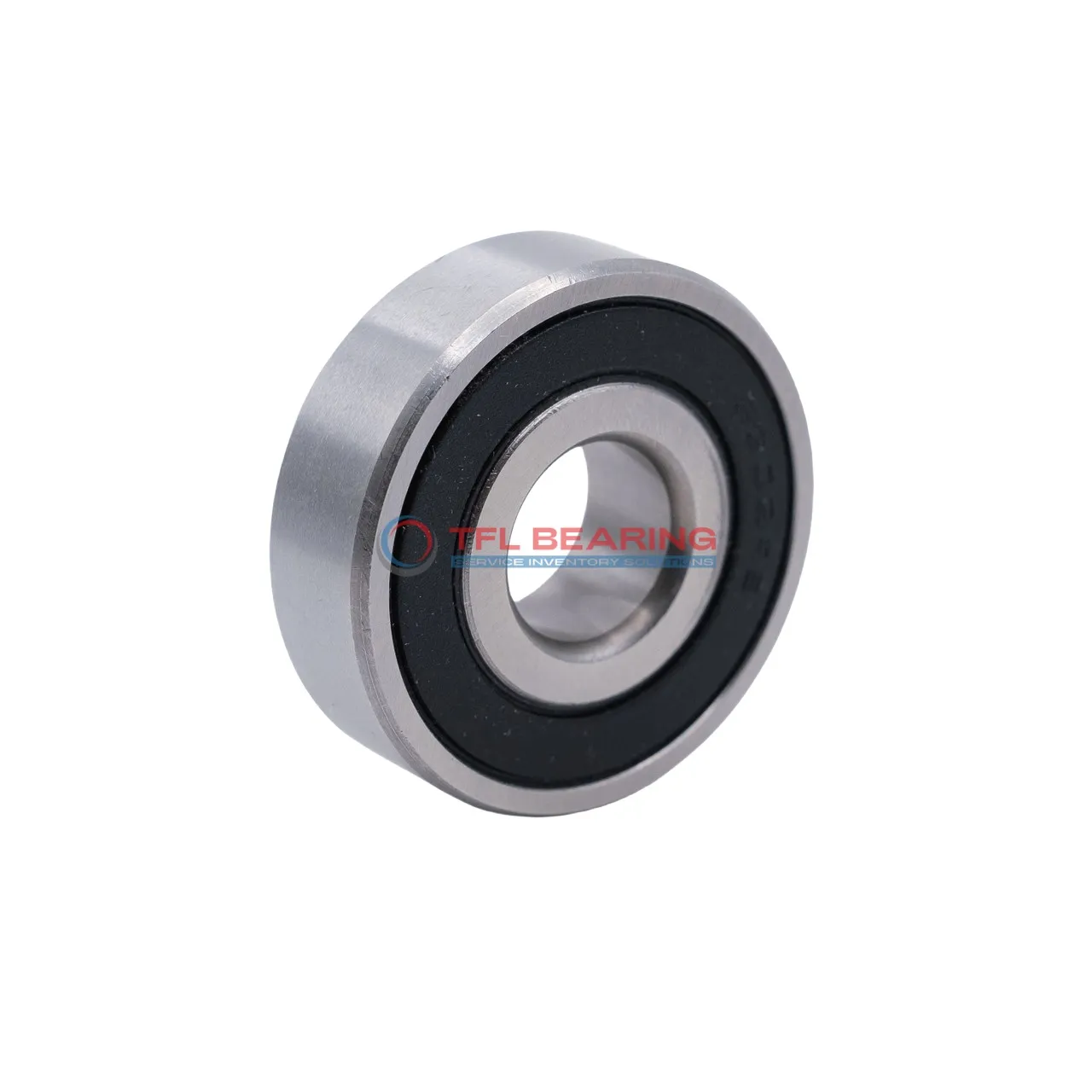

Stainless Steel Deep Groove Ball Bearings W 628/7-2RS1

Stainless Steel Deep Groove Ball Bearings W 628/7-2RS1

The W 628/7-2RS1 is a compact stainless steel deep groove ball bearing, measuring 7mm by 14mm by 5mm. It handles radial loads up to 149 lbf and spins smoothly at speeds up to 28,000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The all-stainless construction ensures good corrosion resistance and durability.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF bearings for easy replacement.

Ideal for small machinery, medical devices, or food processing equipment where hygiene matters. Weighing just 2.9 grams, it’s lightweight yet sturdy for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 628/7-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 14 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 149 lbf
  • Static Radial Load 58 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 28000 rpm
  • Weight 0.0029 kg
Stainless Steel Deep Groove Ball Bearings W 628/7-2RS1 dimension drawing
Download DWG Download PDF

Features

Performance Features of W 628/7-2RS1 Bearing

W 628/7-2RS1 Bearing is crafted with stainless steel rings and balls, offering excellent corrosion resistance.

Its sealed design keeps out contaminants, ensuring smooth operation in various environments.

With a dynamic radial load capacity of 149 lbf, it handles moderate loads reliably.

The bearing’s compact size (7 mm×14 mm×5 mm) makes it suitable for space-constrained applications.

Application

Common Applications of W 628/7-2RS1 Bearing
W 628/7-2RS1 Bearing is a great fit for small electric motors, often found in household appliances like blenders or mixers. Its sealed design keeps out dust and moisture, ensuring smooth operation over time.

In robotics, W 628/7-2RS1 Bearing works well in compact joints and pivots, where its stainless steel construction resists corrosion. The small size and metric dimensions make it easy to integrate into precise mechanisms.

For medical devices, W 628/7-2RS1 Bearing’s grease lubrication and sealed features help maintain hygiene in equipment like dental tools. The consistent performance is ideal for applications requiring reliability.
