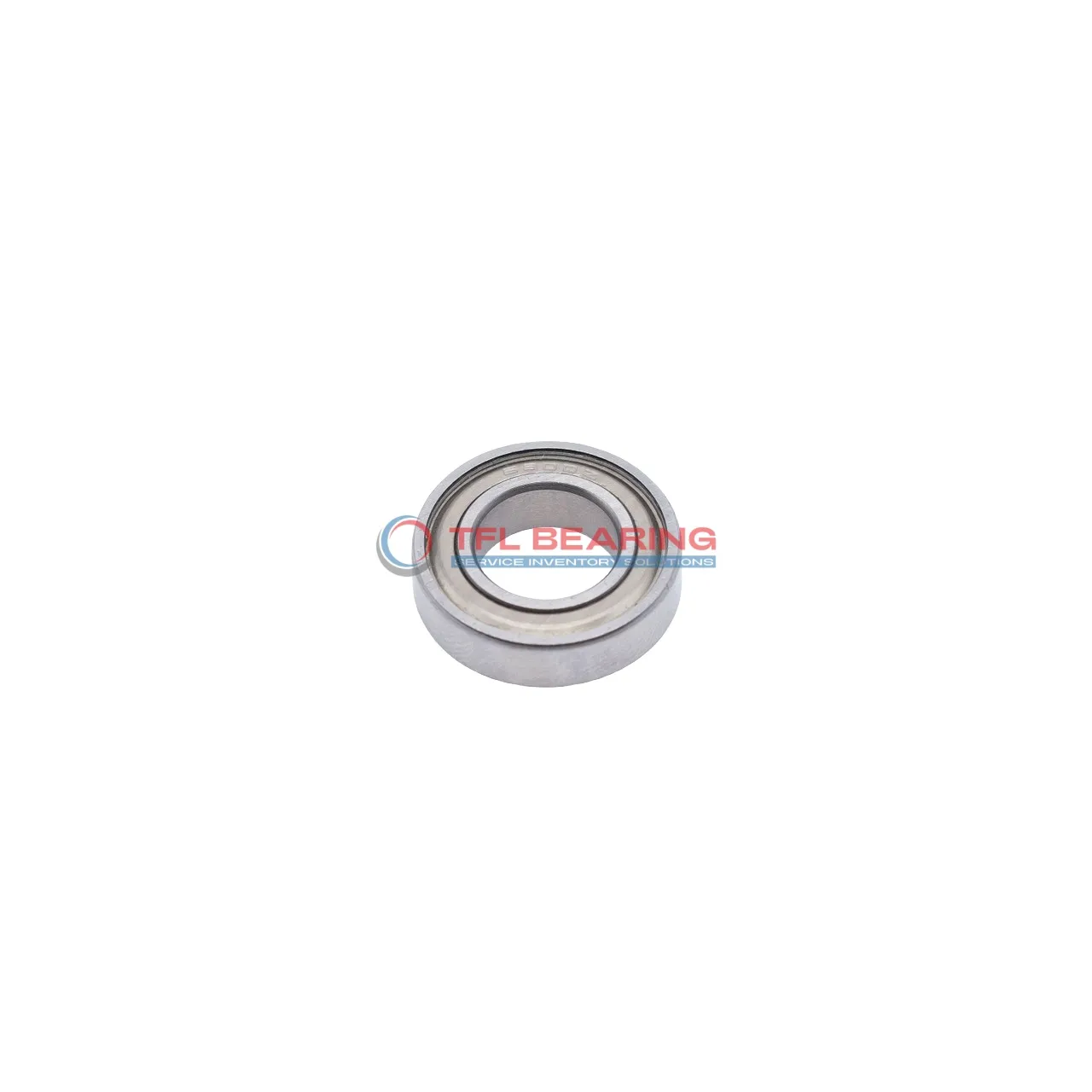

Stainless Steel Deep Groove Ball Bearings W 627/3-2Z

Stainless Steel Deep Groove Ball Bearings W 627/3-2Z

The W 627/3-2Z is a compact stainless steel deep groove ball bearing, measuring just 3mm by 6mm by 2.5mm. It’s designed for radial loads up to 26 lbf and can spin at speeds up to 85,000 RPM.

Its shielded design keeps grease in and dirt out, making it low-maintenance. The all-stainless construction ensures corrosion resistance and durability in harsh conditions.

This bearing operates smoothly in temperatures from -30°C to 120°C. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for small devices like dental tools or precision instruments, it’s lightweight at just 0.000305kg. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 627/3-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 3 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 6 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 2.5 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 26 lbf
  • Static Radial Load 8 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 85000 rpm
  • Weight 0.000305 kg
Stainless Steel Deep Groove Ball Bearings W 627/3-2Z dimension drawing
Download DWG Download PDF

Features

Why Choose W 627/3-2Z Bearing for Precision Tasks?

W 627/3-2Z Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its compact size of 3 mm×6 mm×2.5 mm makes it ideal for applications where space is limited.

The shielded design protects against contaminants, ensuring smooth operation in various environments.
With a maximum speed of 85,000 rpm, it delivers reliable performance in high-speed applications.

W 627/3-2Z Bearing’s grease lubrication reduces maintenance needs, making it a practical choice.
Its dynamic radial load capacity of 26 lbf ensures durability in precision tasks.

Application

Common Applications of W 627/3-2Z Bearing
W 627/3-2Z Bearing is a compact solution for small devices like precision instruments and miniature motors, where space is limited but performance matters. Its stainless steel construction offers good resistance to corrosion, making it suitable for humid environments.

In consumer electronics, W 627/3-2Z Bearing can be found in items such as small fans or handheld gadgets, ensuring smooth rotation with minimal noise. The shielded design helps keep out dust, extending its lifespan in everyday use.

For medical devices, W 627/3-2Z Bearing’s small size and reliability make it ideal for delicate equipment like dental tools or diagnostic machines. The grease lubrication ensures quiet operation, which is essential in medical settings.

Automation systems benefit from W 627/3-2Z Bearing in applications like robotic arms or small actuators, where precision and durability are key. Its high-speed capability allows for efficient performance in repetitive tasks.

Household appliances, such as electric toothbrushes or small kitchen gadgets, often use W 627/3-2Z Bearing for its dependable operation. The metric sizing ensures compatibility with a variety of compact designs.
