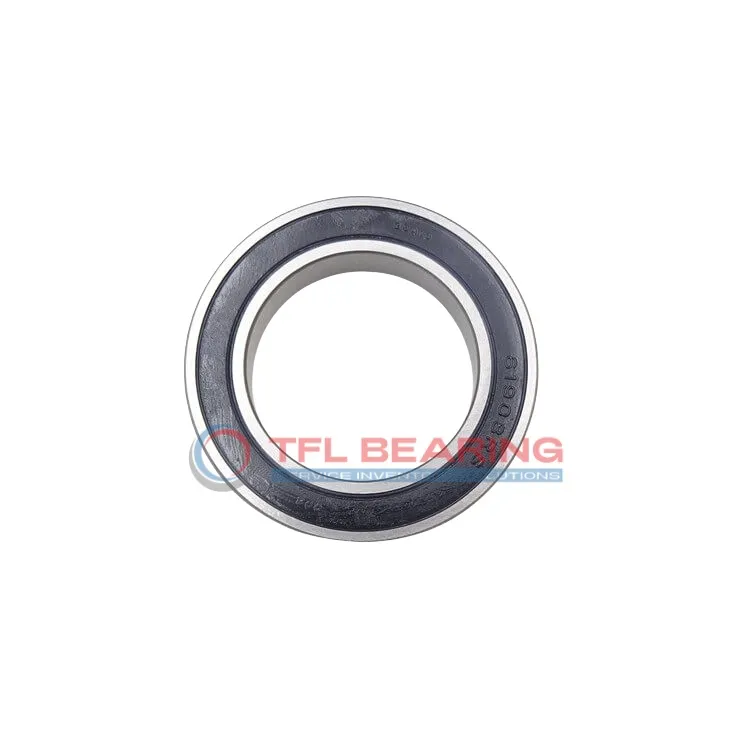

Stainless Steel Deep Groove Ball Bearings W 6206-2RS1

Stainless Steel Deep Groove Ball Bearings W 6206-2RS1

The W 6206-2RS1 is a stainless steel deep groove ball bearing with a 30mm bore and 62mm outer diameter, designed for radial loads. It handles dynamic loads up to 3709 lbf and operates smoothly at speeds up to 7000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance and durable. The all-stainless construction ensures corrosion resistance, ideal for harsh environments.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Suitable for applications like electric motors or food processing equipment where hygiene and durability matter.

Weighing 0.2kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6206-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 3709 lbf
  • Static Radial Load 2518 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7000 rpm
  • Weight 0.2 kg
  • Price（$） 36.54
Stainless Steel Deep Groove Ball Bearings W 6206-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does W 6206-2RS1 Bearing Reduce Friction?

W 6206-2RS1 Bearing features stainless steel construction, ensuring smooth operation with minimal friction.
Its sealed design retains lubrication, reducing wear and maintaining efficiency over time.
The single-row deep groove design enhances load distribution, further lowering friction.
With a maximum speed of 7,000 rpm, it delivers reliable performance in various applications.

Application

Industrial Uses of W 6206-2RS1 Bearing
W 6206-2RS1 Bearing is commonly used in conveyor systems and pumps, where its sealed design keeps contaminants out and extends service life. The stainless steel construction also makes it suitable for environments with exposure to moisture or chemicals.

Where Is W 6206-2RS1 Bearing Used?
In automotive applications, W 6206-2RS1 Bearing can be found in electric motors and alternators, providing reliable radial load support. Its grease lubrication ensures smooth operation even under continuous use.

Built for Heavy-Duty Use: W 6206-2RS1 Bearing
W 6206-2RS1 Bearing handles high loads in industrial fans and blowers, thanks to its durable stainless steel components. The P0 tolerance class ensures consistent performance in precision machinery.

Medical vs Industrial: Where W 6206-2RS1 Bearing Excels
W 6206-2RS1 Bearing is a practical choice for medical devices like dental drills, where hygiene and reliability are key. In industrial settings, it performs well in food processing equipment due to its corrosion-resistant materials.

Perfect Fit for Automation: W 6206-2RS1 Bearing
W 6206-2RS1 Bearing works seamlessly in robotic arms and automated assembly lines, offering low friction and long-lasting performance. The metric sizing ensures compatibility with a wide range of machinery.
