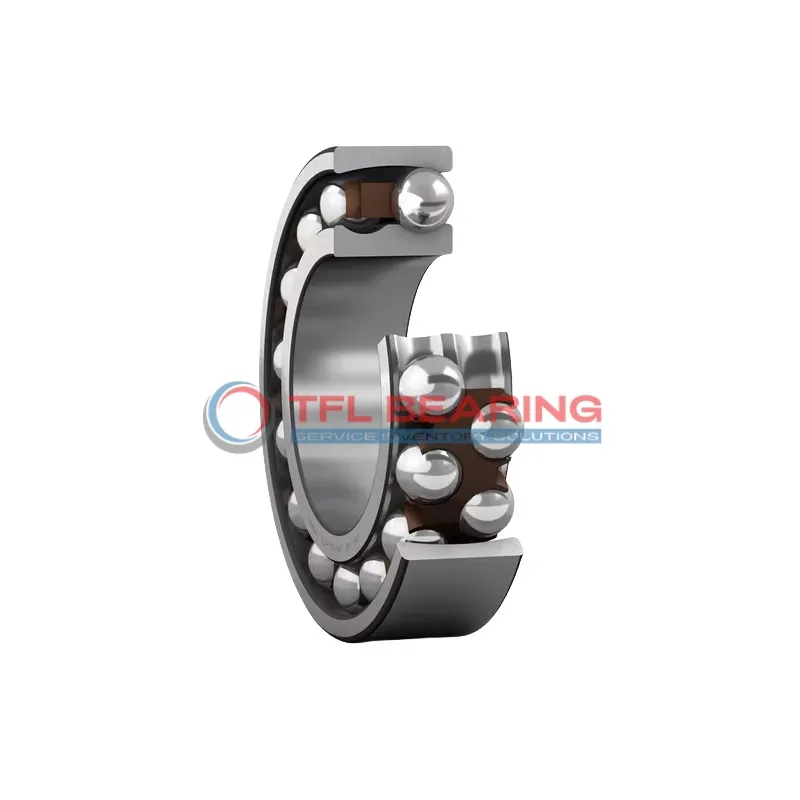

Self Aligning Ball Bearings 1212 C/3

Self Aligning Ball Bearings 1212 C/3

The 1212 C/3 is a self-aligning ball bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel. Its double-row design handles radial loads up to 7020 lbf and spins smoothly at 8000 RPM.

The open seal and nylon cage make maintenance straightforward, while the self-aligning feature compensates for minor misalignments. It operates reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like conveyor systems or agricultural machinery where alignment flexibility is needed.

Weighing 0.9kg, it balances durability with manageable size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1212 C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 22 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 78 mm
  • Internal Diameter On Outer Ring 95.6 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7020 lbf
  • Static Radial Load 2745 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8000 rpm
  • Weight 0.9 kg
  • Price（$） 43.96
Self Aligning Ball Bearings 1212 C/3 dimension drawing
Download DWG Download PDF

Features

How Does 1212 C/3 Bearing Reduce Friction?

1212 C/3 Bearing features a double-row ball design, which helps distribute radial loads evenly.
This reduces friction and ensures smoother operation in various applications.

The chrome steel rings and balls provide durability, while the nylon cage minimises wear.
With a dynamic radial load capacity of 7020 lbf, it handles demanding conditions reliably.

Its open seal type allows for easy lubrication, maintaining performance over time.
The bearing operates efficiently at speeds up to 8,000 rpm, balancing speed and longevity.

Designed for radial loads, 1212 C/3 Bearing is suitable for a wide range of industrial uses.
Its self-aligning feature compensates for minor misalignments, enhancing operational reliability.

Application

Industrial Uses of 1212 C/3 Bearing
The 1212 C/3 Bearing is commonly used in industrial machinery like conveyor systems and mixers, where its self-aligning feature compensates for minor misalignments. Its double-row design provides reliable radial load support, ensuring smooth operation in demanding environments.

Where Is 1212 C/3 Bearing Used?
In automotive applications, 1212 C/3 Bearing fits well in gearboxes and wheel hubs, offering durability under radial loads. The chrome steel construction and nylon cage make it resistant to wear and tear, even in high-speed conditions.

Built for Heavy-Duty Use: 1212 C/3 Bearing
For automation equipment, 1212 C/3 Bearing is a solid choice for robotic arms and assembly lines, thanks to its ability to handle misalignment. The lubricated design ensures long service life with minimal maintenance.

Medical vs Industrial: Where 1212 C/3 Bearing Excels
In medical devices like imaging equipment, 1212 C/3 Bearing provides quiet and precise performance. Its metric sizing and open seal type make it versatile for both medical and industrial applications.

Practical Applications of 1212 C/3 Bearing
For household appliances like washing machines, 1212 C/3 Bearing offers smooth rotation and noise reduction. The temperature range of -30° to 110°C ensures reliability in various operating conditions.
