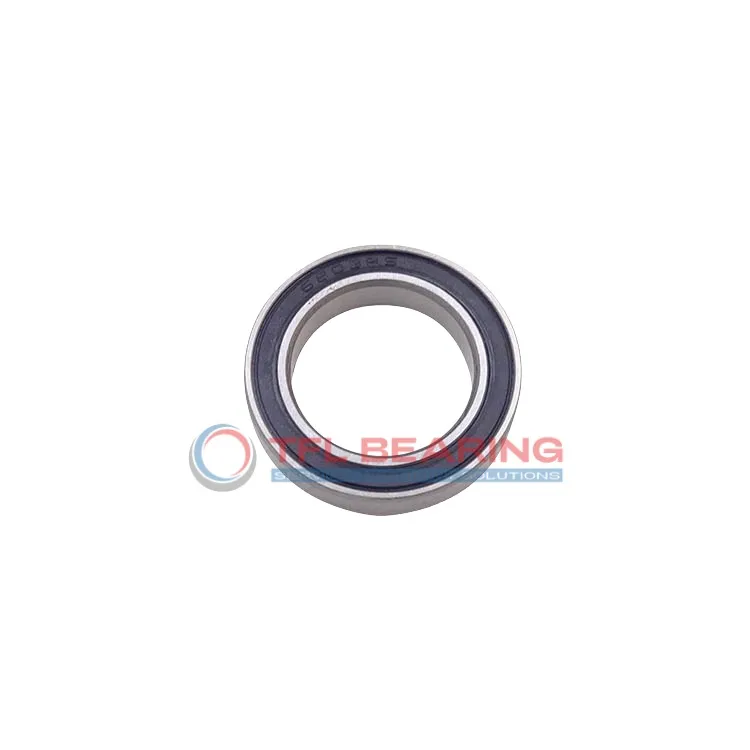

Stainless Steel Deep Groove Ball Bearings W 6205-2RS1/C3

Stainless Steel Deep Groove Ball Bearings W 6205-2RS1/C3

The W 6205-2RS1/C3 is a stainless steel deep groove ball bearing with a 25mm bore and 52mm outer diameter, measuring 15mm in width. Its sealed design keeps out dust and moisture, making it low-maintenance.

This bearing handles radial loads up to 2630 lbf and spins smoothly at speeds up to 19,000 RPM. The stainless steel construction offers good corrosion resistance for harsh environments.

With a C3 radial clearance, it accommodates slight misalignments or thermal expansion. The chrome steel cage adds durability without adding much weight.

Ideal for applications like food processing equipment or marine machinery where rust resistance is key. It’s interchangeable with SKF bearings for easy replacements. Works in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6205-2RS1/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 2630 lbf
  • Static Radial Load 1720 lbf
  • Temperature Range -30°to 120 °C
  • REACH Compliant
  • Max Speed 19000 rpm
  • Weight 0.12 kg
  • Price（$） 20.11
Stainless Steel Deep Groove Ball Bearings W 6205-2RS1/C3 dimension drawing
Download DWG Download PDF

Features

Why Choose W 6205-2RS1/C3 Bearing for Precision Tasks?

W 6205-2RS1/C3 Bearing features stainless steel rings and balls, offering excellent corrosion resistance and durability.
Its sealed design protects against contaminants, ensuring smooth operation in various environments.

With a dynamic radial load capacity of 2630 lbf, it handles demanding applications reliably.
The ABEC 1 tolerance class ensures consistent performance for precision tasks.

W 6205-2RS1/C3 Bearing operates at speeds up to 19,000 rpm, balancing efficiency and longevity.
Its chrome steel cage maintains ball alignment, reducing wear and extending service life.

Application

Industrial Uses of W 6205-2RS1/C3 Bearing
W 6205-2RS1/C3 Bearing is commonly used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. The stainless steel construction also makes it suitable for environments where corrosion resistance is important.

How Does W 6205-2RS1/C3 Bearing Improve Performance?
In automotive applications like alternators and water pumps, W 6205-2RS1/C3 Bearing offers reliable performance with minimal maintenance. Its C3 radial clearance ensures smooth operation even under varying thermal conditions.

Built for Heavy-Duty Use: W 6205-2RS1/C3 Bearing
W 6205-2RS1/C3 Bearing works well in food processing equipment, where its stainless steel material meets hygiene standards. The sealed design also helps extend bearing life in dusty or wet conditions.

Automotive vs Industrial: Applications of W 6205-2RS1/C3 Bearing
W 6205-2RS1/C3 Bearing is versatile enough for both automotive and industrial uses, from conveyor systems to small engine components. Its balanced load capacity and speed rating make it a practical choice across different sectors.
