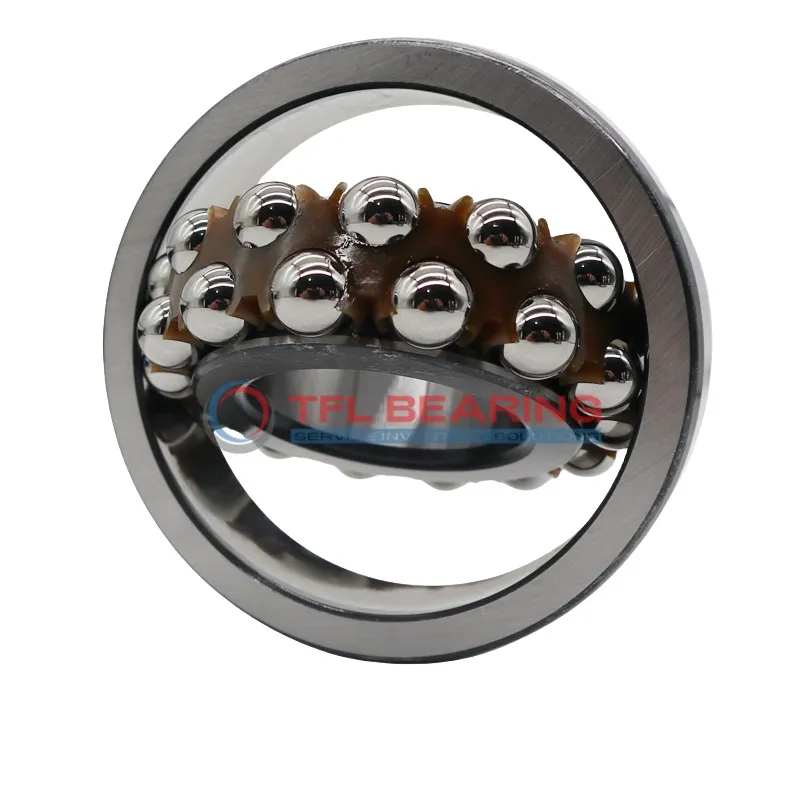

Self Aligning Ball Bearings 2309-K C/4

Brand: TFL Bearing Interchangeable: SKF 2309-K C/4 45 mm × 100 mm × 36 mm Metric Sealed
Part number: 2309-K C/4
Self Aligning Ball Bearings 2309-K C/4
In Stock
US$88.17 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia45 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia100 mm
Outer Dia Tolerance-0.015mm to 0
Width36 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring60.9 mm
Internal Diameter On Outer Ring90 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load8,775 lbf
Static Radial Load3,015 lbf
Temperature Range-30° to 110 °C
Max Speed4,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeSealed
LubricationLubricated
Radial ClearanceCN
Weight1.3 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2309-K C/4 is a self-aligning ball bearing with a 45mm tapered bore and 100mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 8775 lbf and runs smoothly at speeds up to 4300 RPM.

Its double-row design and sealed construction help it stay aligned in misaligned shafts, while the nylon cage reduces noise and vibration. Pre-lubricated for easy use, it operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for machinery with shaft misalignment, like conveyor systems or agricultural equipment.

Weighing 1.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Why Choose 2309-K C/4 Bearing for Precision Tasks?

2309-K C/4 Bearing features a double-row design, providing excellent radial load capacity up to 8775 lbf.
Its chrome steel rings and balls ensure durability, while the nylon cage reduces friction for smoother operation.

The sealed construction of 2309-K C/4 Bearing protects against contaminants, making it suitable for harsh environments.
With a maximum speed of 4,300 rpm, it balances performance and reliability in various applications.

2309-K C/4 Bearing’s tapered bore design simplifies installation, ensuring a secure fit.
Its pre-lubricated feature reduces maintenance needs, saving time and effort.

Application

Industrial Uses of 2309-K C/4 Bearing
2309-K C/4 Bearing is commonly used in industrial machinery, especially in applications where misalignment compensation is needed, such as conveyor systems and fans. Its double-row design and sealed construction help maintain performance in dusty or humid environments.

Where Is 2309-K C/4 Bearing Used?
In automotive applications, 2309-K C/4 Bearing fits well in gearboxes and wheel hubs, thanks to its radial load capacity and tapered bore for secure mounting. The nylon cage reduces noise, making it suitable for passenger vehicles.

Perfect Fit for Automation: 2309-K C/4 Bearing
For robotic arms and automated production lines, 2309-K C/4 Bearing offers smooth movement and durability. Its chrome steel construction ensures long service life even with frequent directional changes.

Medical vs Industrial: Where 2309-K C/4 Bearing Excels
While 2309-K C/4 Bearing is robust enough for heavy machinery, its precision also suits medical imaging devices. The lubricated design ensures quiet operation, which is essential in healthcare settings.
