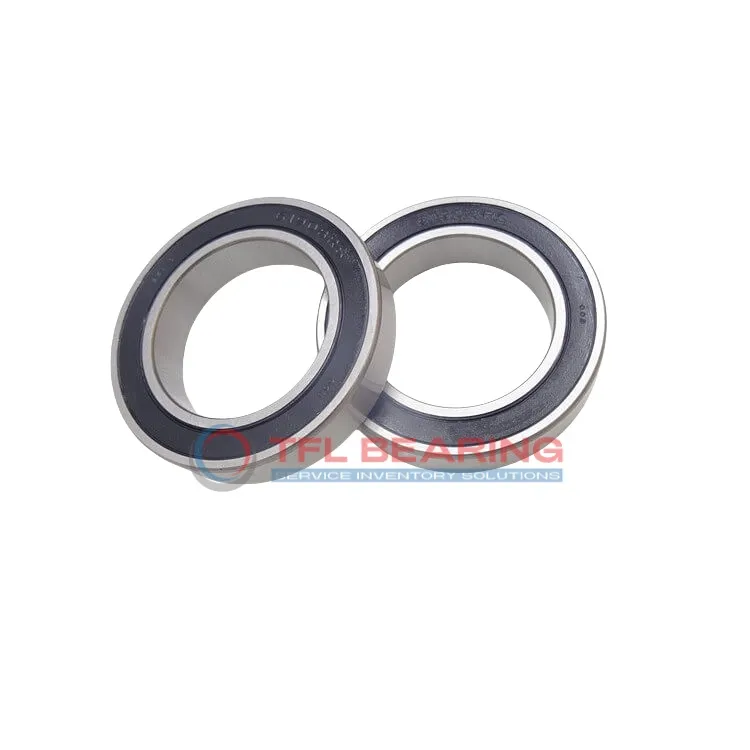

Stainless Steel Deep Groove Ball Bearings W 6204-2RS1/W64F

Stainless Steel Deep Groove Ball Bearings W 6204-2RS1/W64F

The W 6204-2RS1/W64F is a stainless steel deep groove ball bearing measuring 20mm by 47mm by 14mm, designed for radial loads. It handles dynamic loads up to 2428 lbf and spins smoothly at speeds up to 22,000 RPM.

Sealed on both sides, it keeps dirt out and lubrication in, making it low-maintenance. The stainless steel construction resists corrosion, ideal for damp or harsh environments.

With a solid oil lubrication system, it runs quietly and requires minimal upkeep. This bearing is interchangeable with SKF models, offering a reliable replacement option.

Suitable for applications like electric motors or food processing equipment where hygiene and durability matter. It operates in temperatures from -30°C to 120°C and weighs just 0.1kg.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6204-2RS1/W64F
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 2428 lbf
  • Static Radial Load 1472 lbf
  • Temperature Range -30°to 120 °C
  • Lubrication Soild Oil
  • REACH Compliant
  • Max Speed 22000 rpm
  • Weight 0.1 kg
  • Price（$） 24.87
Stainless Steel Deep Groove Ball Bearings W 6204-2RS1/W64F dimension drawing
Download DWG Download PDF

Features

Why Choose W 6204-2RS1/W64F Bearing for Precision Tasks?

W 6204-2RS1/W64F Bearing features stainless steel rings and balls, ensuring corrosion resistance and durability.
Its sealed design protects against contaminants, making it ideal for precision applications.

The solid oil lubrication reduces friction, allowing smooth operation at speeds up to 22,000 rpm.
With a dynamic radial load capacity of 2428 lbf, it handles demanding radial loads reliably.

W 6204-2RS1/W64F Bearing’s ABEC 1 tolerance ensures consistent performance in sensitive equipment.
Its compact size (20 mm×47 mm×14 mm) makes it suitable for space-constrained installations.

Application

Industrial Uses of W 6204-2RS1/W64F Bearing
W 6204-2RS1/W64F Bearing is commonly used in conveyor systems and packaging machinery, where its sealed design helps keep contaminants out. The stainless steel construction ensures it performs well in humid or corrosive environments.

What Makes W 6204-2RS1/W64F Bearing a Preferred Choice?
In automotive applications like electric motors, W 6204-2RS1/W64F Bearing offers reliable radial load support. Its solid oil lubrication reduces maintenance needs, making it a practical option for long-term use.

Perfect Fit for Automation: W 6204-2RS1/W64F Bearing
This bearing works well in robotic arms and 3D printers, where smooth rotation is essential. The ABEC 1 tolerance ensures consistent performance without unnecessary precision costs.

Medical vs Industrial: Where W 6204-2RS1/W64F Bearing Excels
In medical devices like lab equipment, W 6204-2RS1/W64F Bearing’s corrosion resistance is key. For industrial pumps, its high-speed capability and durability stand out.

Where to Use W 6204-2RS1/W64F Bearing
Household appliances like washing machines benefit from W 6204-2RS1/W64F Bearing’s quiet operation. The sealed design also helps it handle detergents and moisture without issues.
