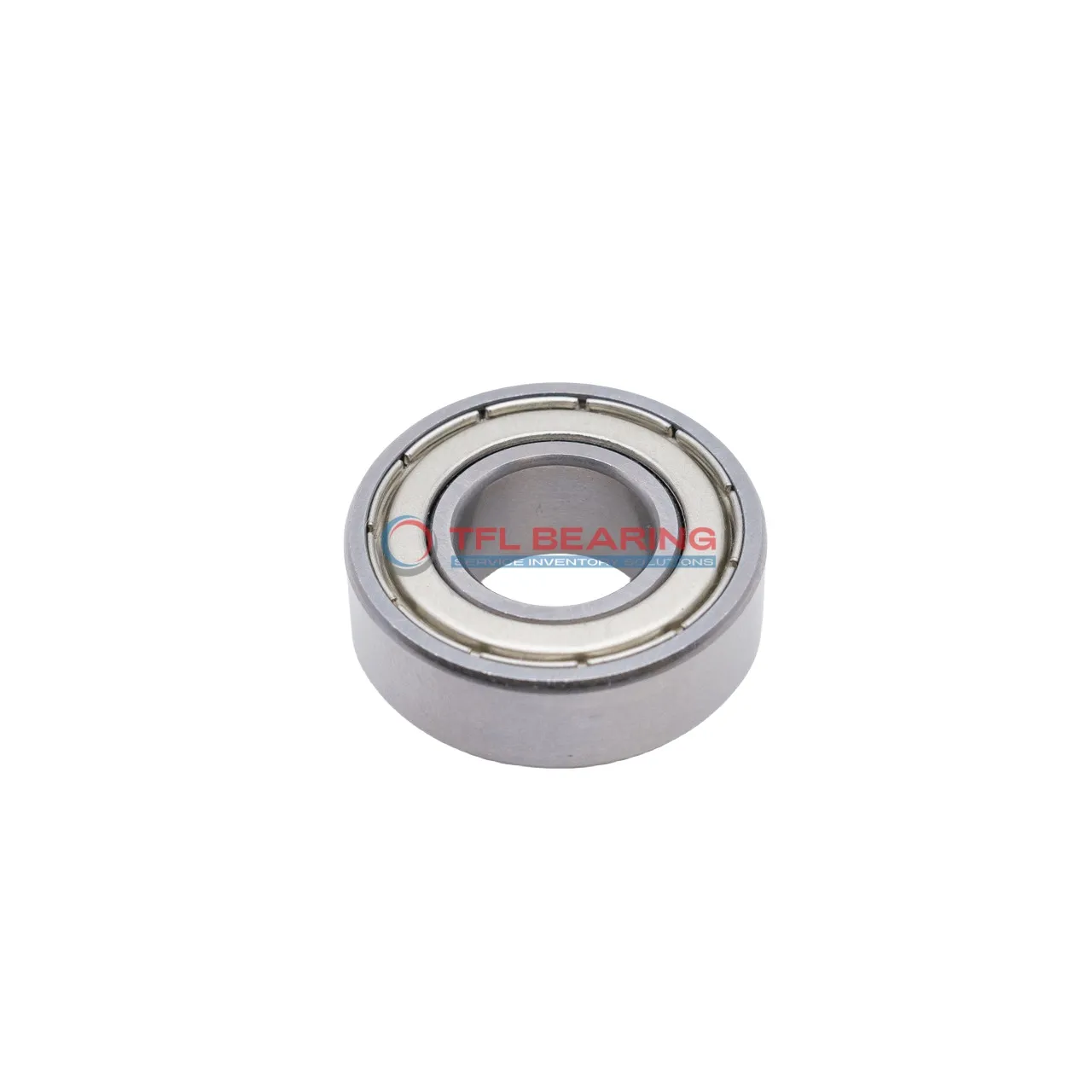

Stainless Steel Deep Groove Ball Bearings W 6203-2Z

Stainless Steel Deep Groove Ball Bearings W 6203-2Z

The W 6203-2Z is a stainless steel deep groove ball bearing with a 17mm bore and 40mm outer diameter, designed for radial loads. It handles dynamic loads up to 1812 lbf and spins smoothly at speeds up to 20,000 RPM.

Its shielded design keeps out dust and dirt, while the stainless steel construction resists corrosion. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where reliability is key.

Weighing just 0.065kg, it’s lightweight and easy to handle. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6203-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 40 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 1068 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 20000 rpm
  • Weight 0.065 kg
  • Price（$） 13.48
Stainless Steel Deep Groove Ball Bearings W 6203-2Z dimension drawing
Download DWG Download PDF

Features

What Makes W 6203-2Z Bearing Durable?

W 6203-2Z Bearing is constructed entirely from stainless steel, offering excellent resistance to corrosion and wear.
Its shielded design helps keep contaminants out while retaining lubrication for smooth operation.

The bearing handles dynamic radial loads up to 1812 lbf, making it suitable for various applications.
With a maximum speed of 20,000 rpm, it delivers reliable performance in high-speed settings.

W 6203-2Z Bearing operates in temperatures from -30° to 120°C, ensuring versatility in different environments.
Its compact size (17 mm×40 mm×12 mm) allows for easy integration into space-constrained designs.

Application

Industrial Uses of W 6203-2Z Bearing
W 6203-2Z Bearing is commonly used in conveyor systems, where its shielded design helps keep contaminants out while maintaining smooth operation. The stainless steel construction makes it suitable for environments where corrosion resistance is important.

In automotive applications, W 6203-2Z Bearing can be found in electric motors and pumps, providing reliable performance under radial loads. Its metric sizing ensures compatibility with a variety of vehicle components.

For medical devices like lab equipment, W 6203-2Z Bearing offers quiet and precise movement, essential for accurate measurements. The grease lubrication ensures long-lasting performance with minimal maintenance.

In household appliances such as washing machines, W 6203-2Z Bearing helps reduce noise and vibration during operation. Its durable design ensures it can handle the demands of daily use.

Automation systems benefit from W 6203-2Z Bearing’s ability to support high-speed rotations, making it ideal for robotic arms and precision machinery. The shielded seals protect against dust and debris in busy production environments.
