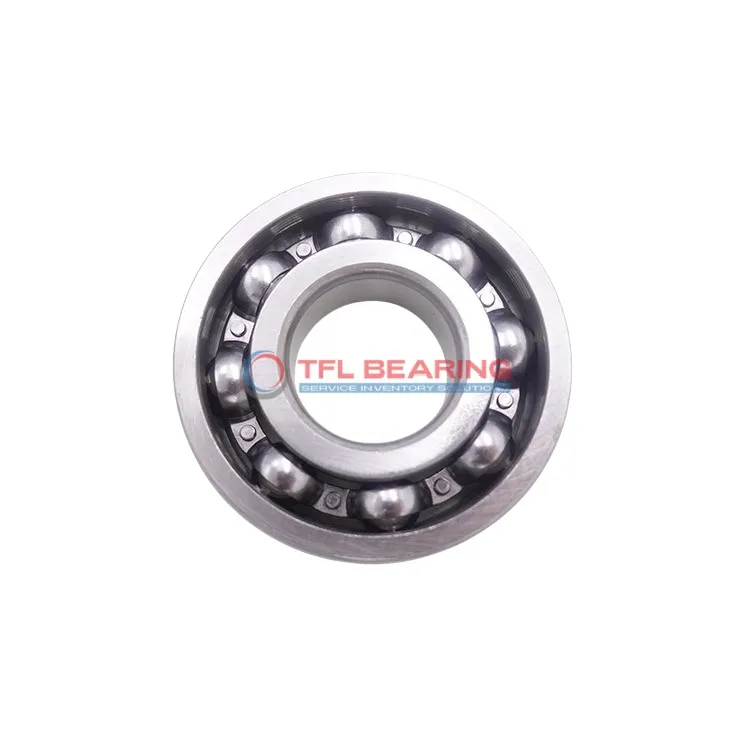

Single Row Deep Groove Ball Bearings 6318/C3W64E

Single Row Deep Groove Ball Bearings 6318/C3W64E

The 6318/C3W64E is a single-row deep groove ball bearing with a 90mm bore and 190mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 32148 lbf and operates smoothly at speeds up to 3600 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

With a C3 radial clearance, it offers flexibility in applications where thermal expansion is a factor. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for industrial machinery or heavy equipment, it balances strength and performance. Weighing 4920g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6318/C3W64E
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 190 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 43 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 32148 lbf
  • Static Radial Load 24055 lbf
  • Max Speed 3600 rpm
  • Weight 4920 g
Single Row Deep Groove Ball Bearings 6318/C3W64E dimension drawing
Download DWG Download PDF

Features

Performance Features of 6318/C3W64E Bearing

6318/C3W64E Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 32,148 lbf, ensuring reliable performance in various applications.

The solid oil lubrication in 6318/C3W64E Bearing ensures smooth operation and reduces maintenance needs.
With a maximum speed of 3,600 rpm, it balances durability and efficiency for industrial use.

6318/C3W64E Bearing operates effectively in temperatures ranging from -30°C to 120°C.
Its open design allows for easy inspection and maintenance, saving time and effort.

Application

Industrial Uses of 6318/C3W64E Bearing
6318/C3W64E Bearing is commonly used in heavy machinery like pumps and compressors, where its radial load capacity ensures reliable operation. The solid oil lubrication extends service life, reducing maintenance needs in demanding environments.

What Makes 6318/C3W64E Bearing a Preferred Choice?
With its chrome steel construction, 6318/C3W64E Bearing handles high radial loads in automotive transmissions and industrial gearboxes. The C3 clearance allows for thermal expansion, making it suitable for variable temperature conditions.

Perfect Fit for Automation: 6318/C3W64E Bearing
In robotic arms and automated assembly lines, 6318/C3W64E Bearing provides smooth rotation and consistent performance. Its open design facilitates easy inspection and re-lubrication, ideal for high-usage applications.

Light-Duty vs Heavy-Duty: Best Uses for 6318/C3W64E Bearing
For light-duty applications like conveyor rollers, 6318/C3W64E Bearing offers durability without excessive weight. In heavy-duty scenarios such as mining equipment, its robust design withstands intense radial forces.
