Stainless Steel Deep Groove Ball Bearings W 61907-2Z

Stainless Steel Deep Groove Ball Bearings W 61907-2Z

The W 61907-2Z is a stainless steel deep groove ball bearing with a 35mm bore and 55mm outer diameter, designed for radial loads. Its compact 10mm width makes it suitable for tight spaces.

This shielded bearing handles dynamic radial loads up to 2104 lbf and spins smoothly at speeds up to 13000 RPM. The stainless steel construction resists corrosion, ideal for damp or harsh environments.

Its single-row design with grease lubrication ensures low maintenance and reliable performance. The bearing operates in temperatures from -30°C to 120°C, suitable for various industrial uses.

Weighing just 0.074kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a practical choice for food processing or marine applications where rust resistance is key.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61907-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 10 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 2104 lbf
  • Static Radial Load 1720 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 13000 rpm
  • Weight 0.074 kg

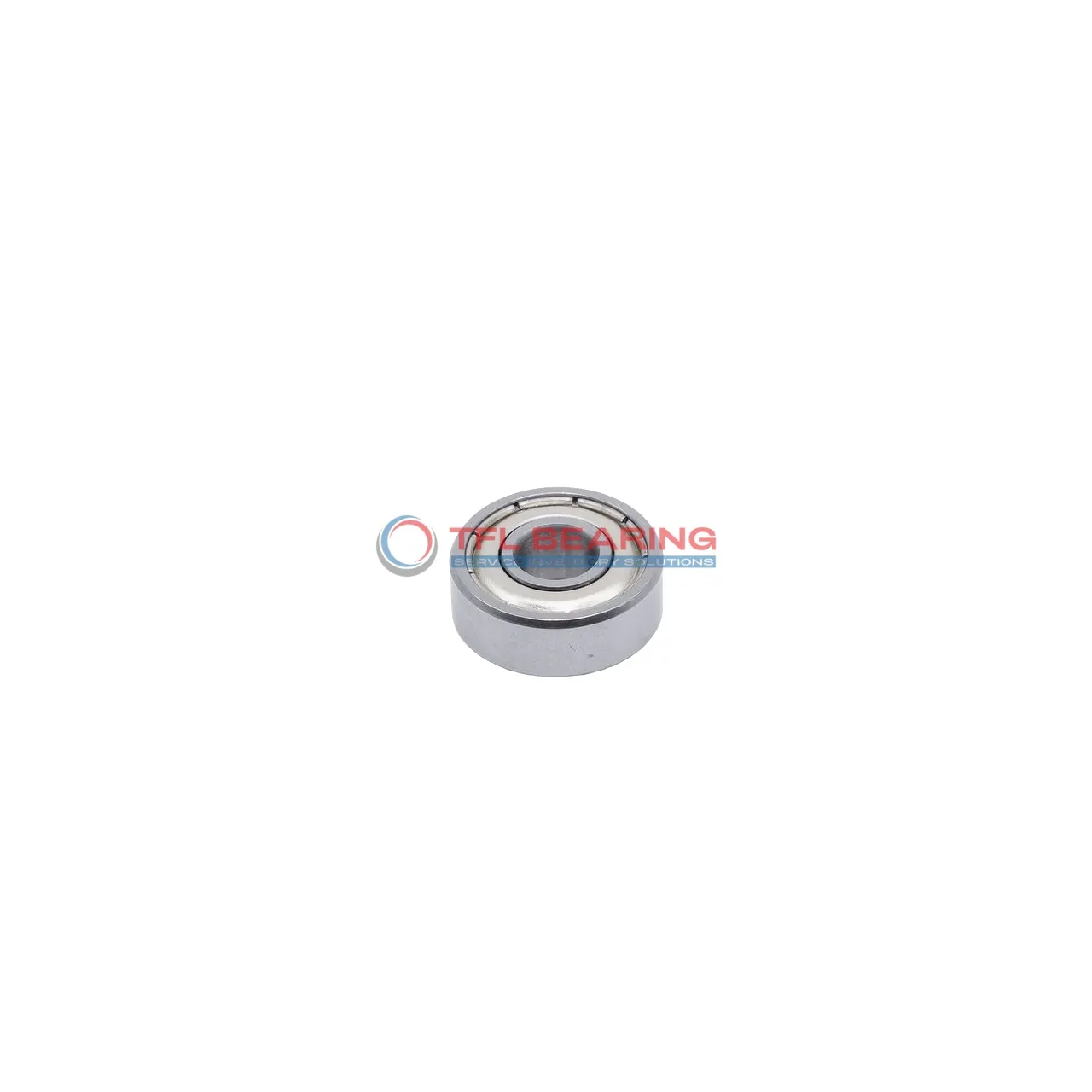

Stainless Steel Deep Groove Ball Bearings W 61907-2Z dimension drawing
Download DWG Download PDF

Features

Why Choose W 61907-2Z Bearing for Precision Tasks?

W 61907-2Z Bearing features stainless steel construction, ensuring resistance to corrosion and wear.
Its shielded design protects against contaminants, making it ideal for precision applications.

With a dynamic radial load capacity of 2104 lbf, W 61907-2Z Bearing handles demanding radial loads efficiently.
The grease lubrication ensures smooth operation, even at high speeds up to 13,000 rpm.

W 61907-2Z Bearing’s compact size (35 mm×55 mm×10 mm) allows for easy integration into various machinery.
Its P0 tolerance class guarantees consistent performance in precision tasks.

The stainless steel cage maintains ball alignment, reducing friction and extending bearing life.
Operating between -30° to 120 °C, W 61907-2Z Bearing performs reliably in diverse environments.

Application

Industrial Uses of W 61907-2Z Bearing
W 61907-2Z Bearing is commonly used in industrial machinery, especially in applications where corrosion resistance is key, such as food processing equipment. Its stainless steel construction ensures longevity even in humid or washdown environments.

What Makes W 61907-2Z Bearing a Preferred Choice?
In automotive applications, W 61907-2Z Bearing works well in electric motors and pumps due to its shielded design, which keeps contaminants out. The grease lubrication also helps maintain smooth operation over long periods.

Perfect Fit for Automation: W 61907-2Z Bearing
For robotics and automation, W 61907-2Z Bearing offers reliable performance in compact spaces, like robotic arms or conveyor systems. Its single-row design provides stability while keeping the assembly lightweight.

Medical vs Industrial: Where W 61907-2Z Bearing Excels
In medical devices, W 61907-2Z Bearing is suitable for low-noise applications like diagnostic equipment. Meanwhile, in industrial settings, it handles radial loads efficiently in machinery like compressors or fans.
